A/T Models Except ULEV

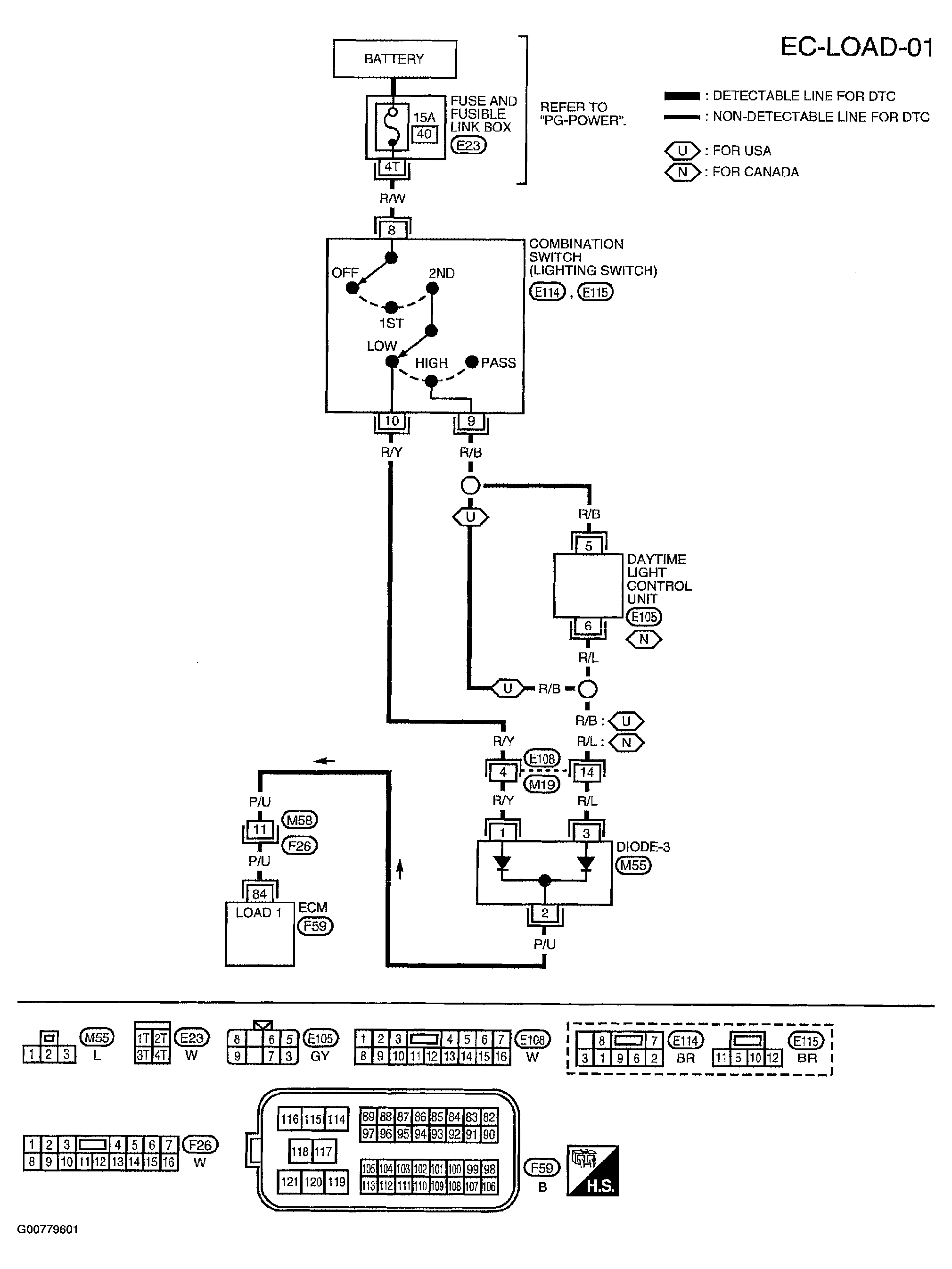

Fig 1: Electrical Load Signal Wiring Diagram - EC-LOAD-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

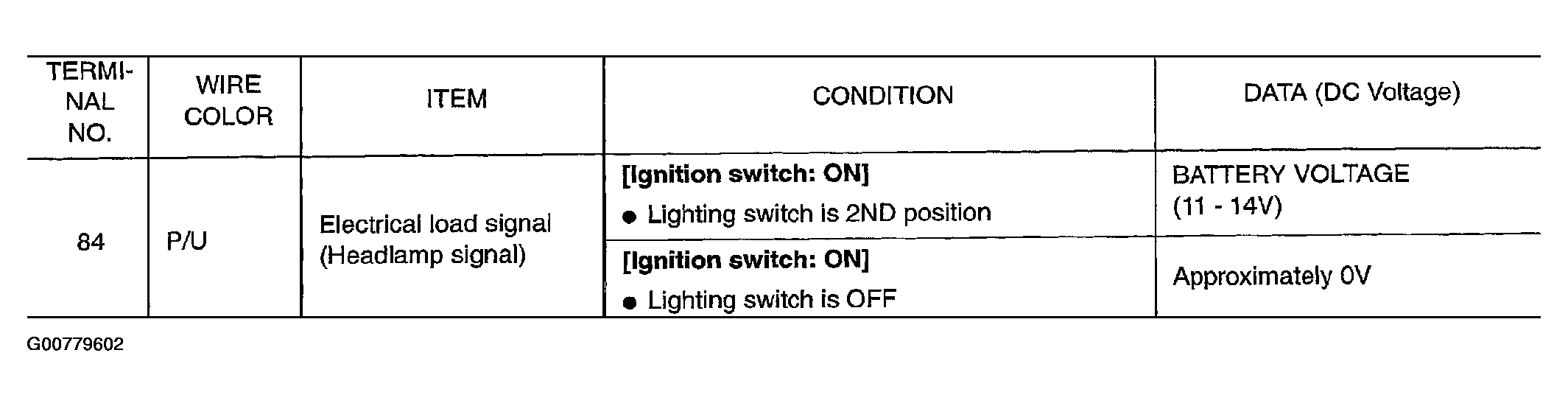

Fig 2: Electrical Load Signal Specification Data - EC-LOAD-01 (A/T Models Except ULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.

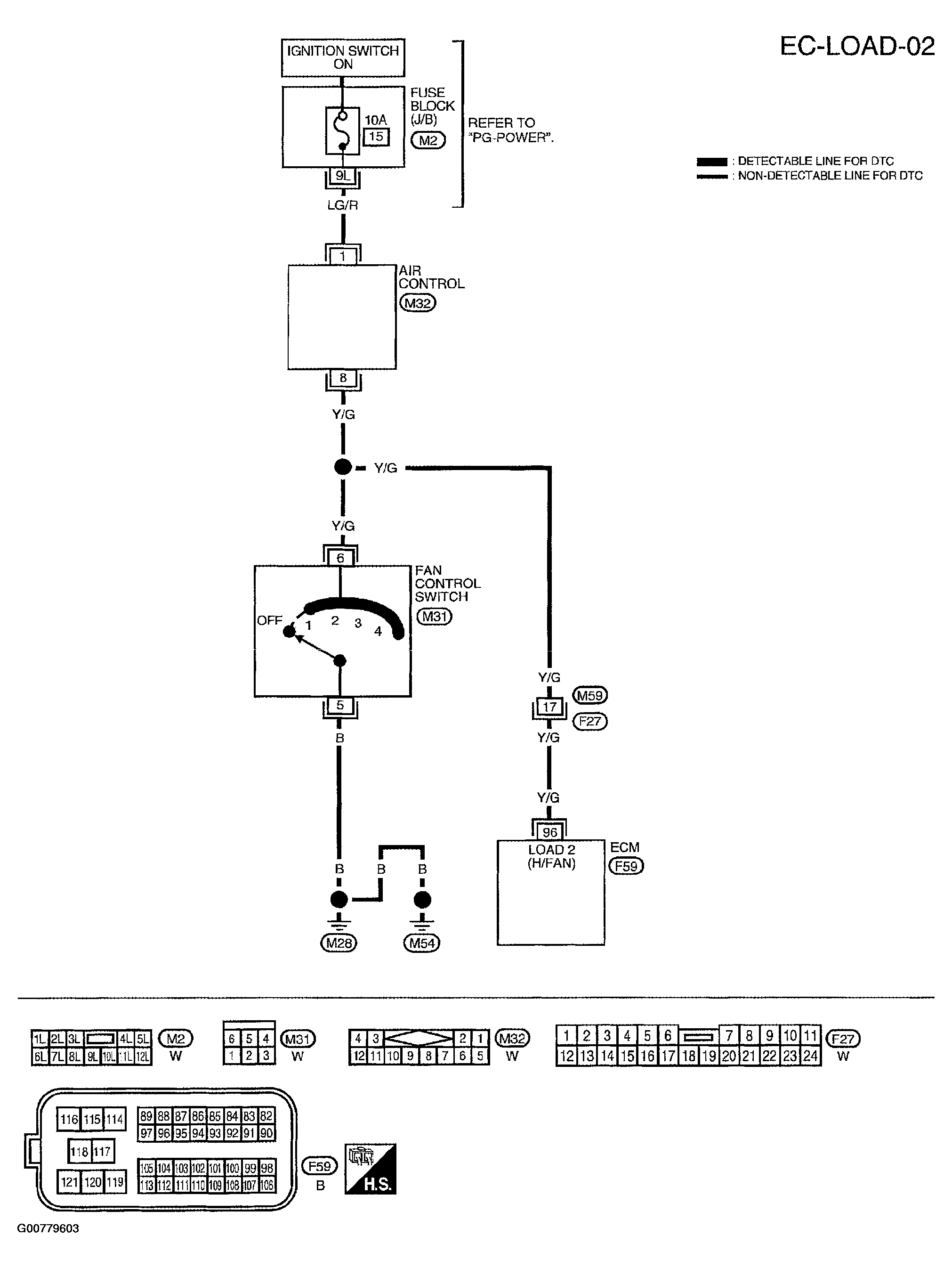

Fig 3: Electrical Load Signal Wiring Diagram - EC-LOAD-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

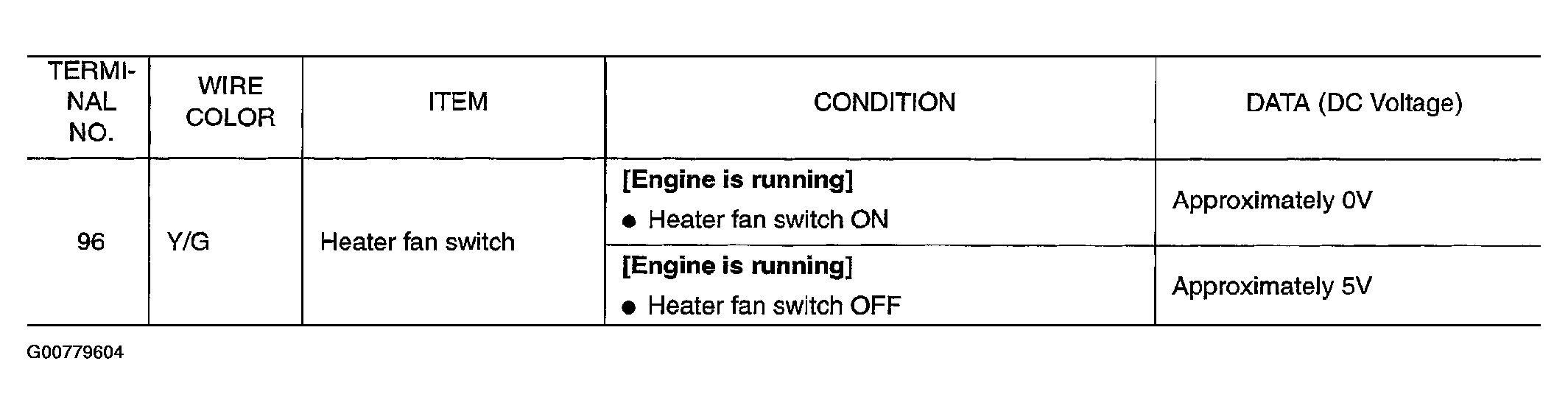

Fig 4: Electrical Load Signal Specification Data - EC-LOAD-02 (A/T Models Except ULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.

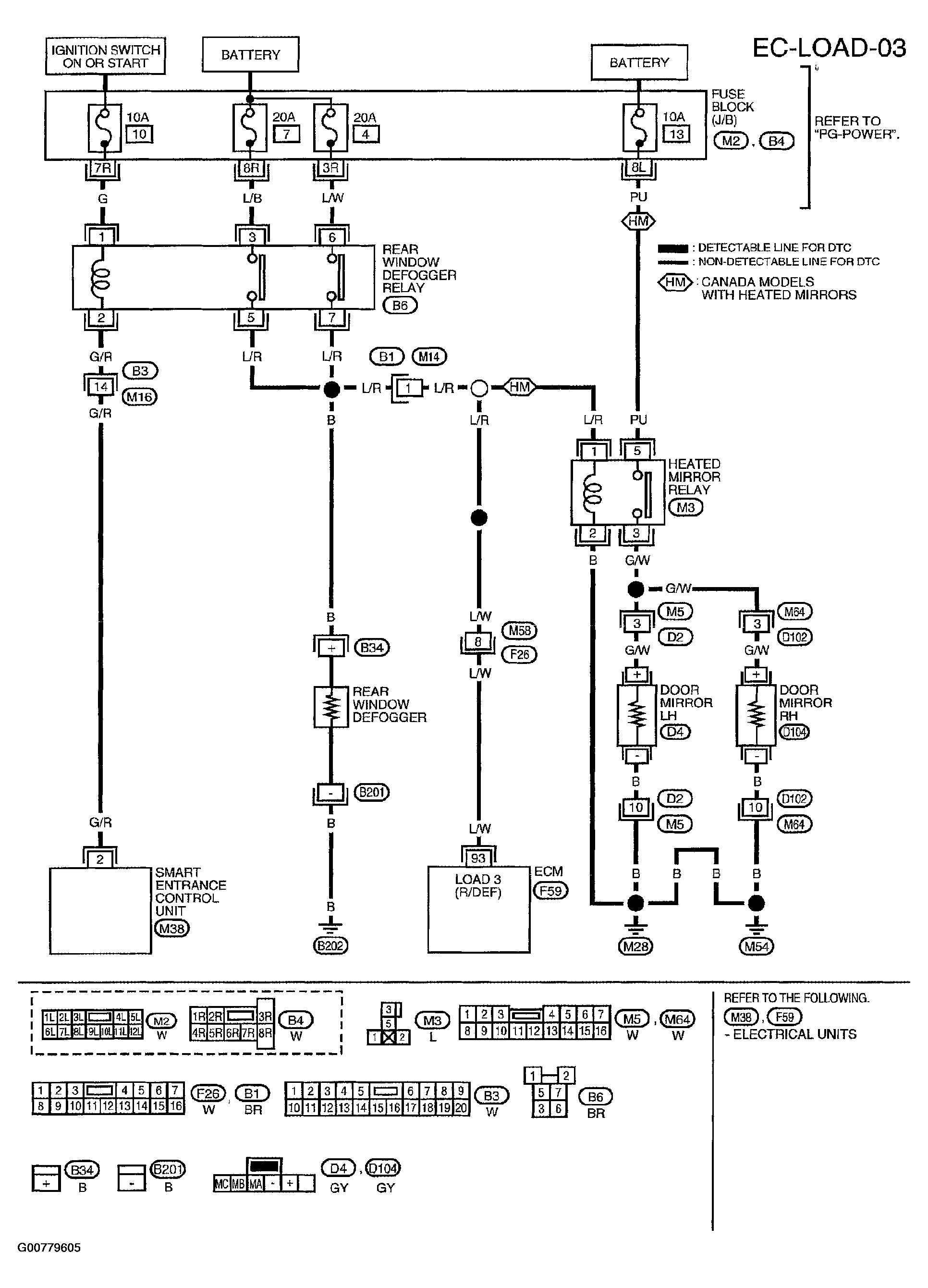

Fig 5: Electrical Load Signal Wiring Diagram - EC-LOAD-03

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

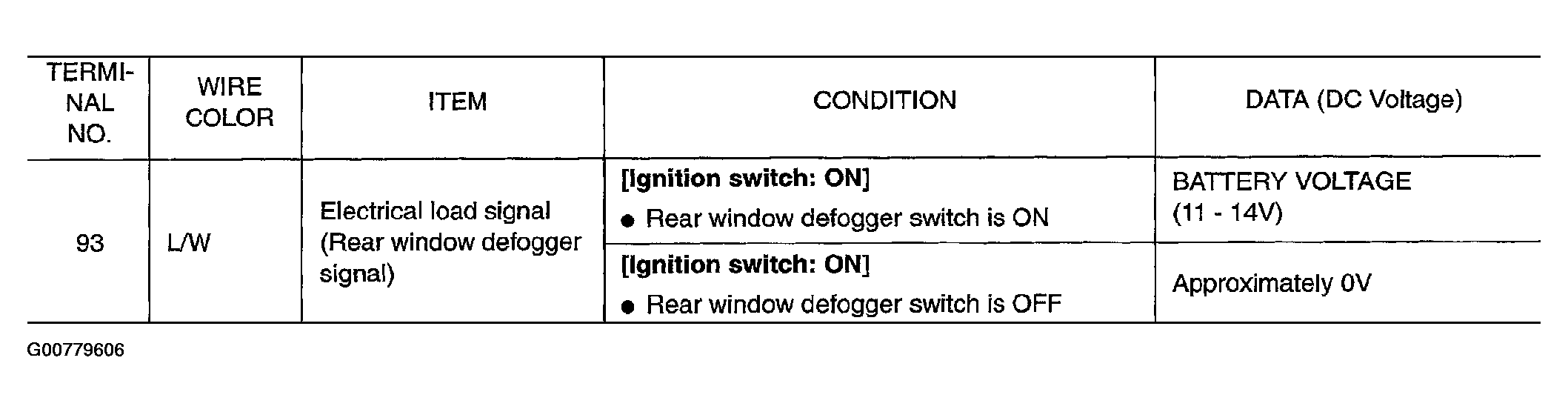

Fig 6: Electrical Load Signal Specification Data - EC-LOAD-03 (A/T Models Except ULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.
