ECM Relay

  1. Apply 12V direct current between ECM relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5, 6 and 7.

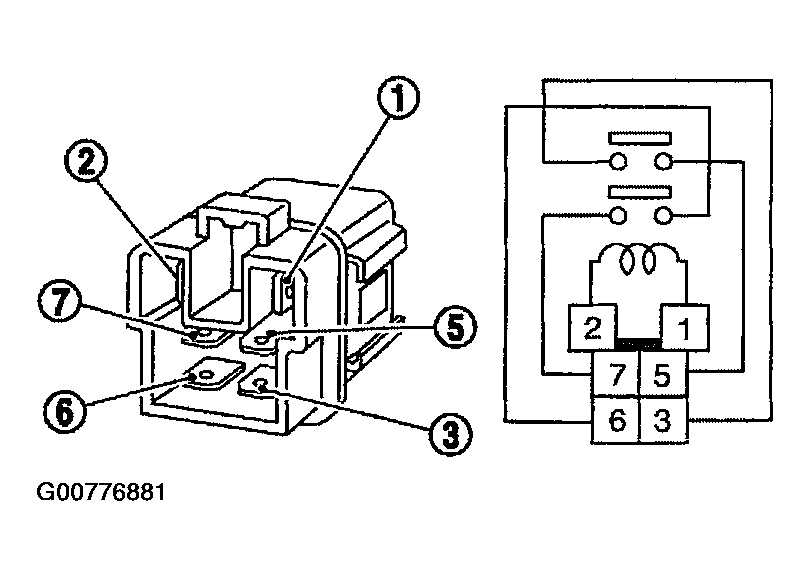

    Fig 1: Identifying ECM Relay Terminals
    G00776881Courtesy of NISSAN MOTOR CO., U.S.A.

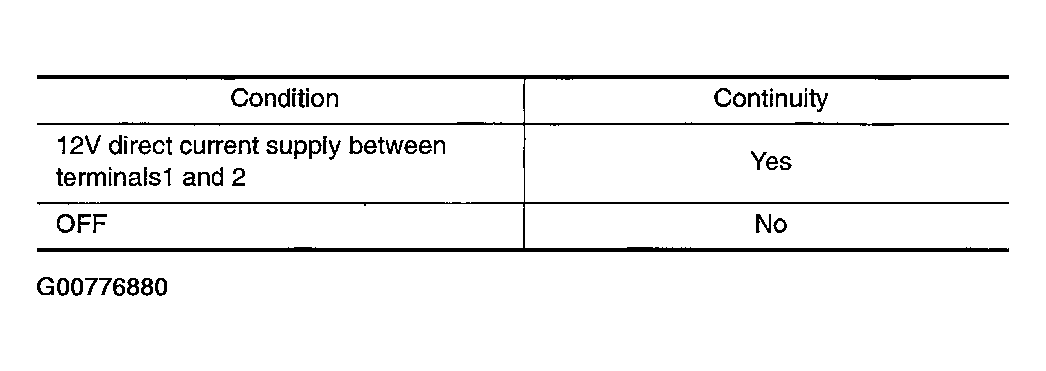

    Fig 2: ECM Relay Condition & Continuity Chart
    G00776880Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace ECM relay.
