Inspection Procedure

NOTE: Perform "DATA MONITOR (SPEC)" mode in maximum scale display.
  1. Perform "BASIC INSPECTION ".
  2. Confirm that the testing conditions indicated above are met.
  3. Select "B/FUEL SCHDL", "A/F ALPHA-B1" and "MAS A/F SE-B1" in "DATA MONITOR (SPEC)" mode with CONSULT-II.
  4. Make sure that monitor items are within the SP value.
  5. If NG, go to "DIAGNOSTIC PROCEDURE ".

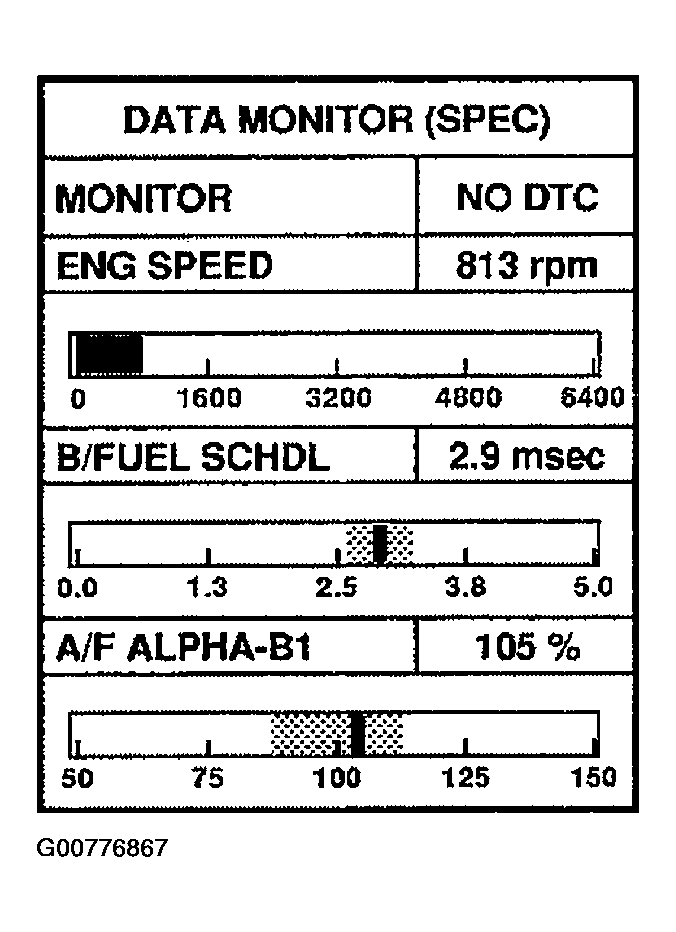

    Fig 1: Identifying DATA MONITOR (SPEC) Mode
    G00776867Courtesy of NISSAN MOTOR CO., U.S.A.
