A/T Models Except ULEV

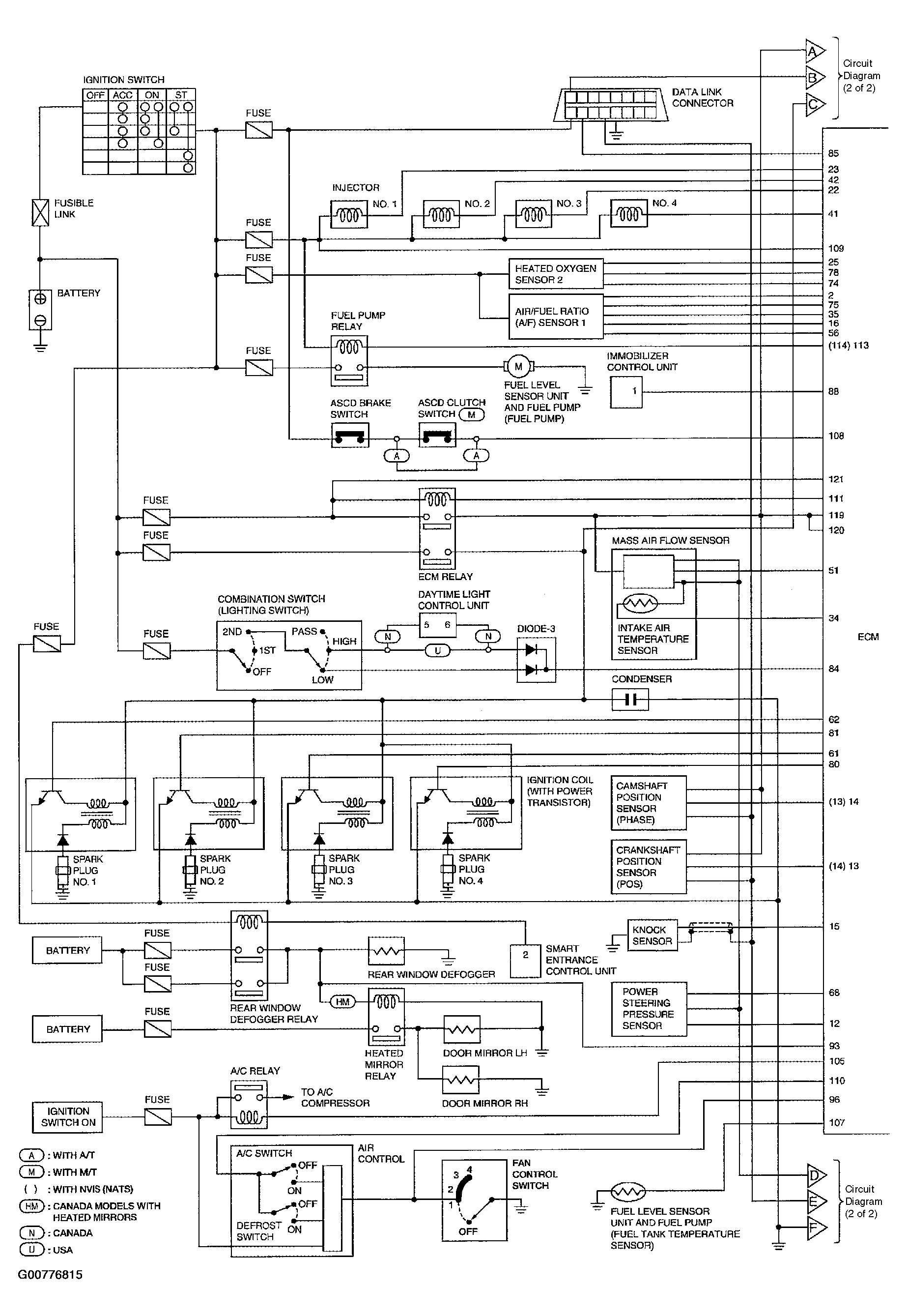

Fig 1: Circuit Diagram - A/T Models Except ULEV (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

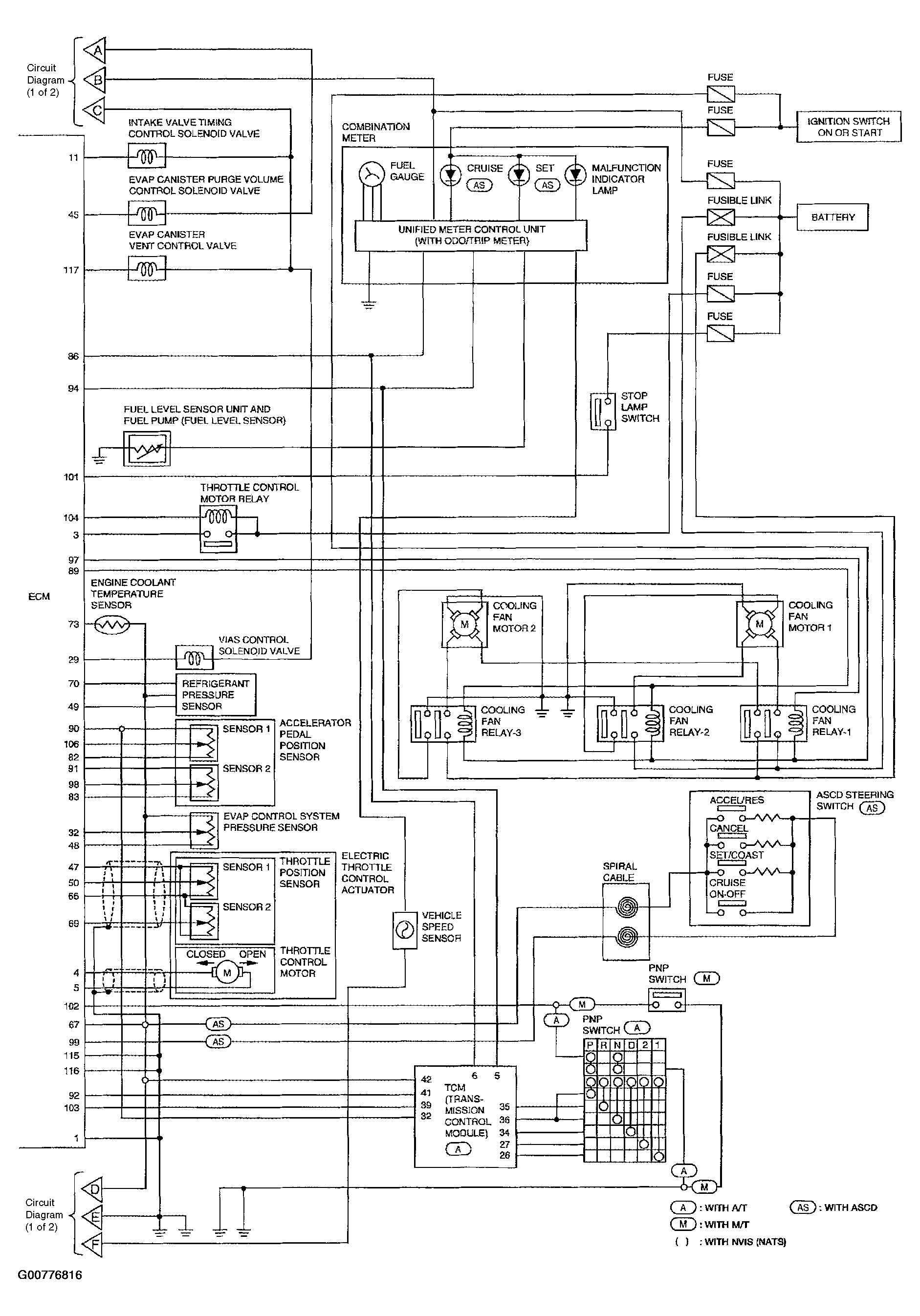

Fig 2: Circuit Diagram - A/T Models Except ULEV (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
