A/T Models ULEV And M/T Models

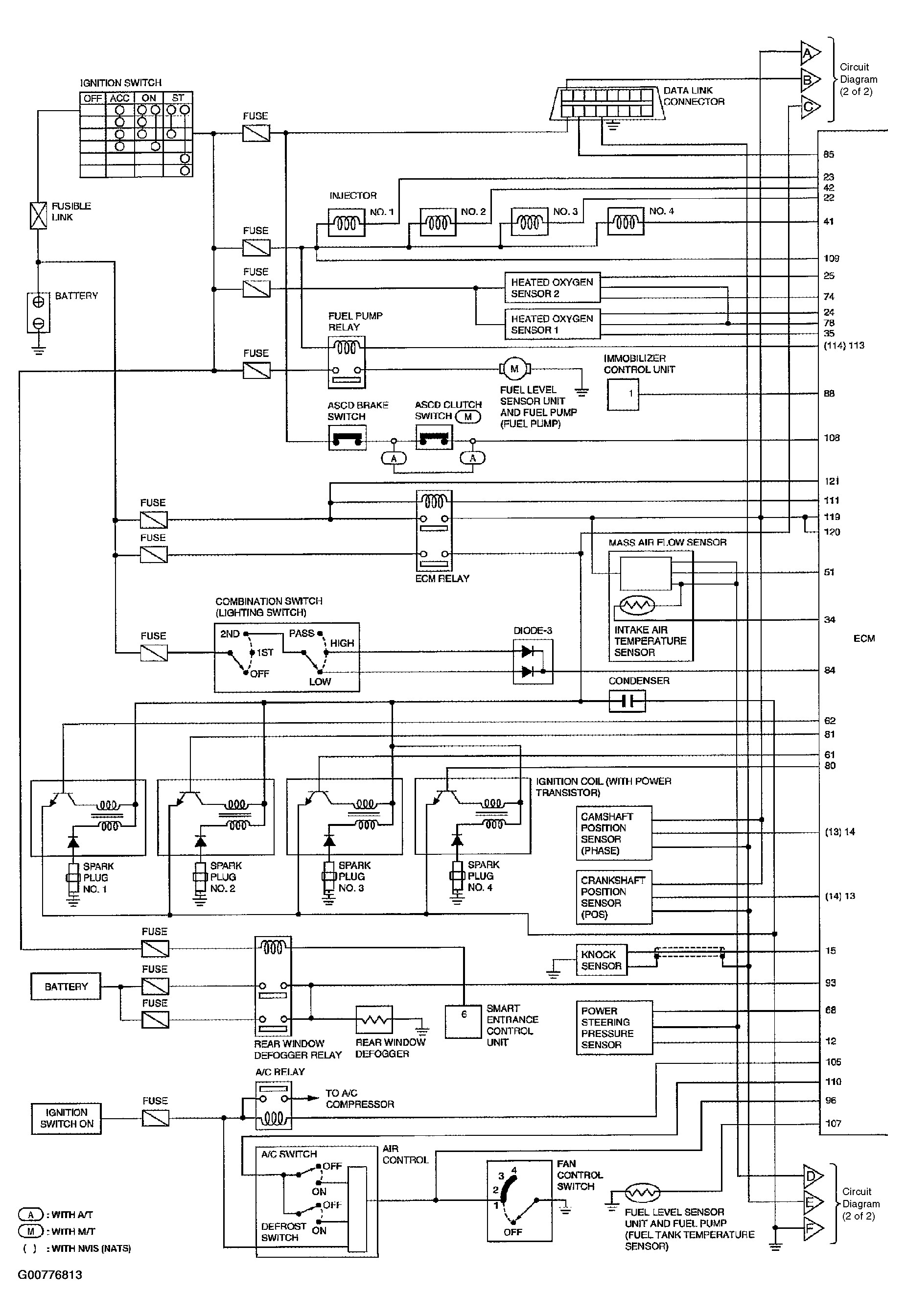

Fig 1: Circuit Diagram - A/T Models ULEV & M/T Models (1 Of 2)
G00776813Courtesy of NISSAN MOTOR CO., U.S.A.

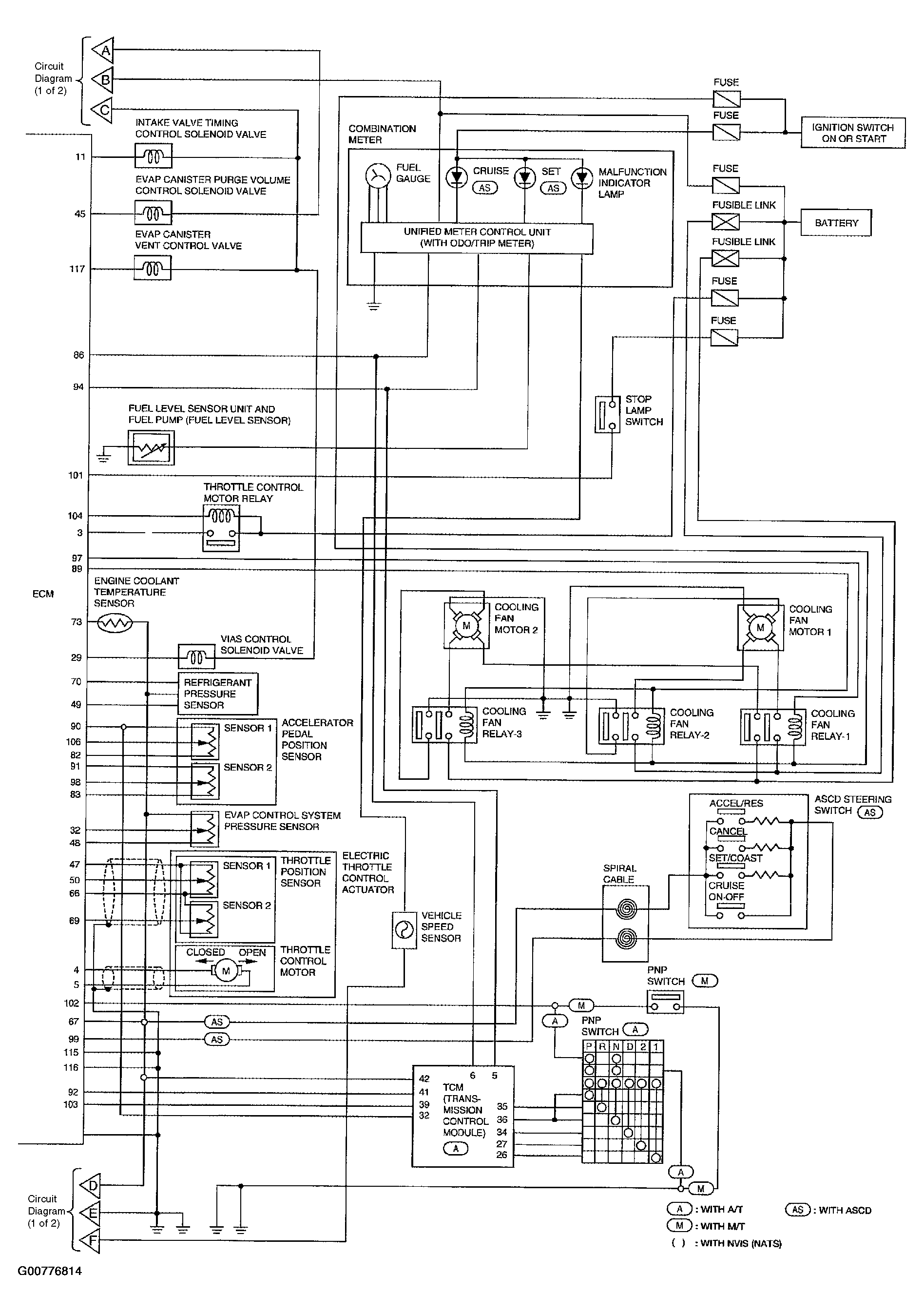

Fig 2: Circuit Diagram - A/T Models ULEV & M/T Models (2 Of 2)
G00776814Courtesy of NISSAN MOTOR CO., U.S.A.
