ECM Terminals and Reference Value: Preparation

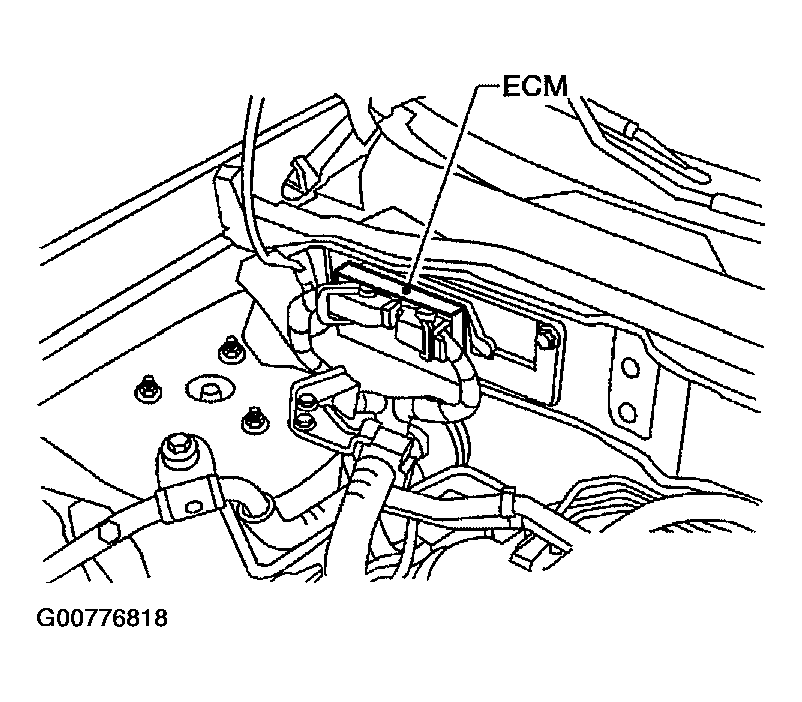

- ECM is located in the right side of the cowl top (behind the strut tower).
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove ECM harness protector.

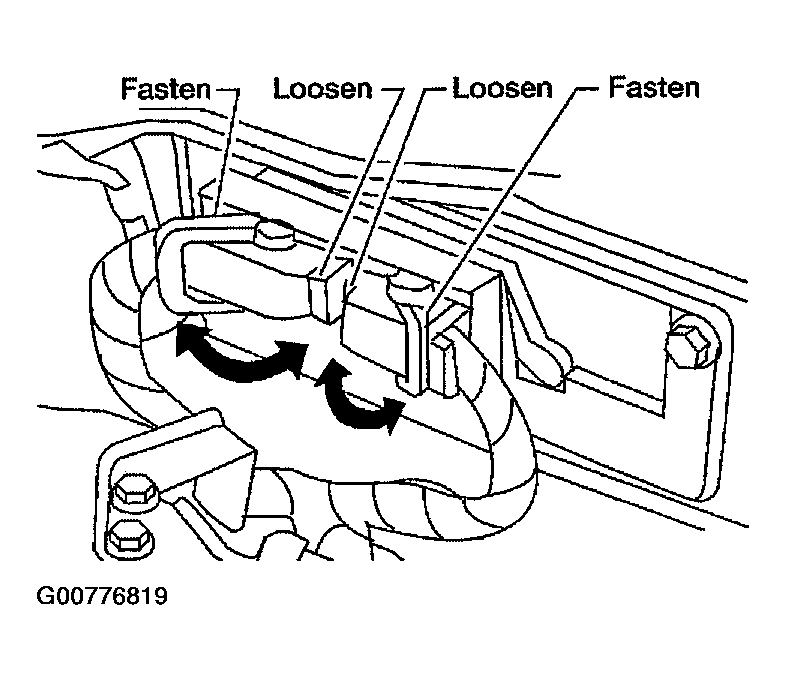

- When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown.
- Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
- Use extreme care not to touch 2 pins at one time.
- Data is for comparison and may not be exact.
Courtesy of NISSAN MOTOR CO., U.S.A.
