A/T Models Except ULEV

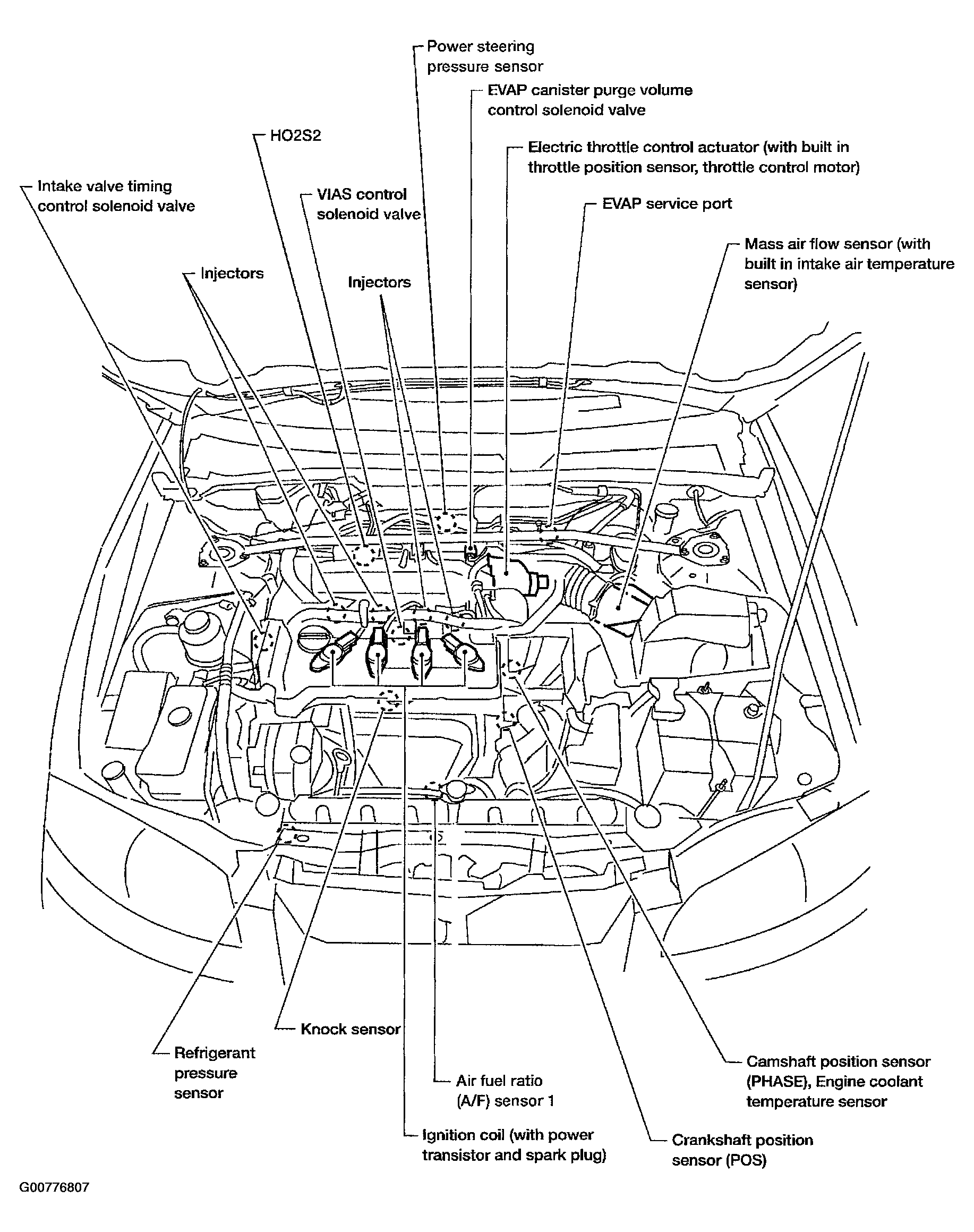

Fig 1: Locating Engine Control Components - A/T Models Except ULEV (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Engine Control Components - A/T Models Except ULEV (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Locating Engine Control Components - A/T Models Except ULEV (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Locating Engine Control Components - A/T Models Except ULEV (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Locating Engine Control Components - A/T Models Except ULEV (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

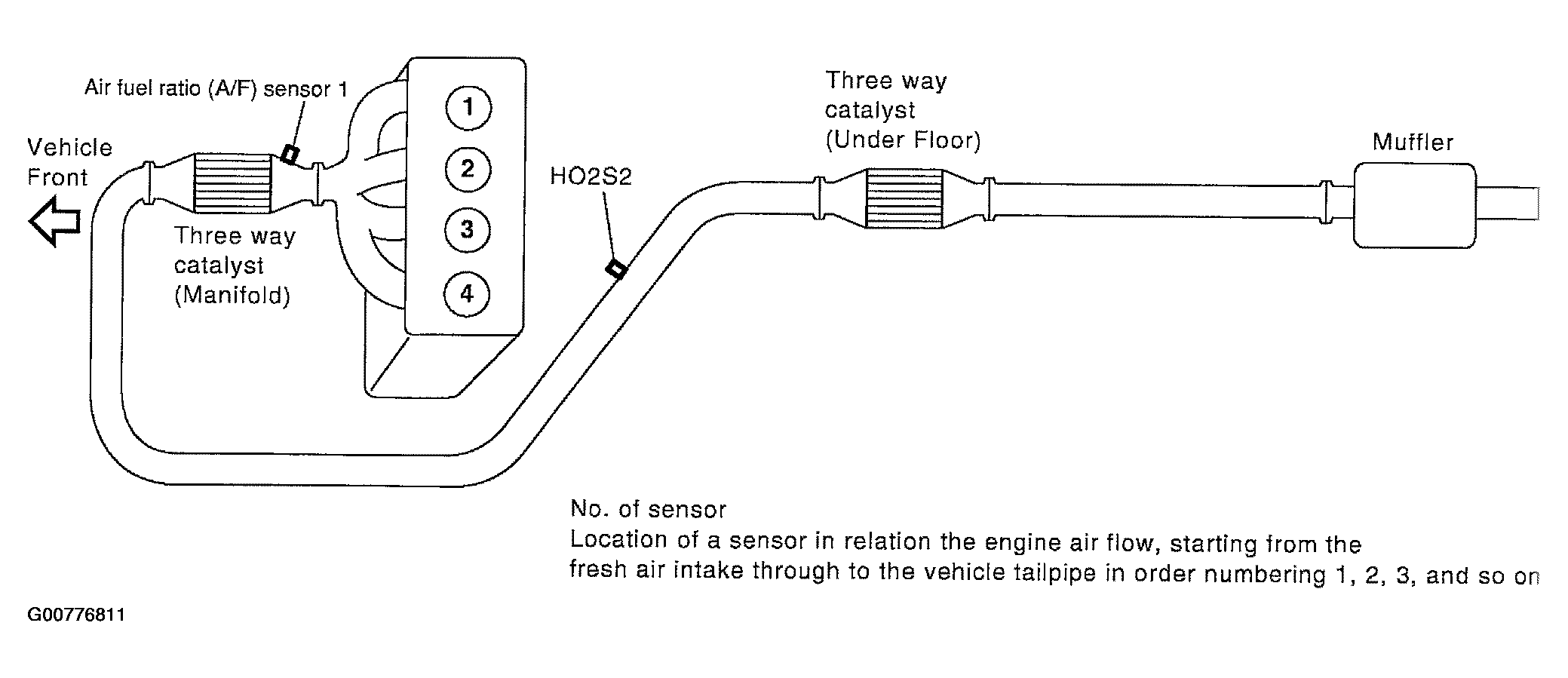

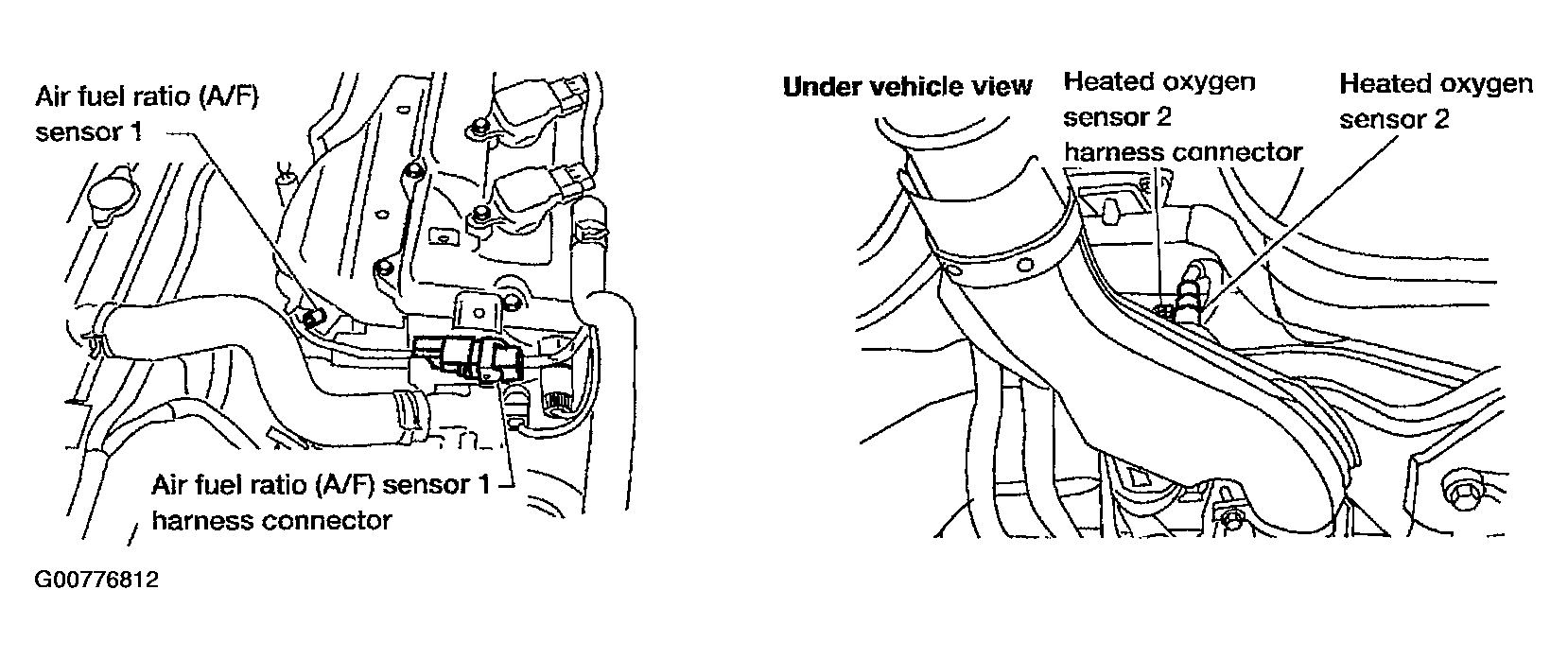

Fig 6: Identifying Air Fuel Ratio Sensor & Heated Oxygen Sensor - A/T Models Except ULEV

Courtesy of NISSAN MOTOR CO., U.S.A.
