GST Inspection Procedure

1. Turn ignition switch OFF.
2. Connect "GST" to data link connector, which is located under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.

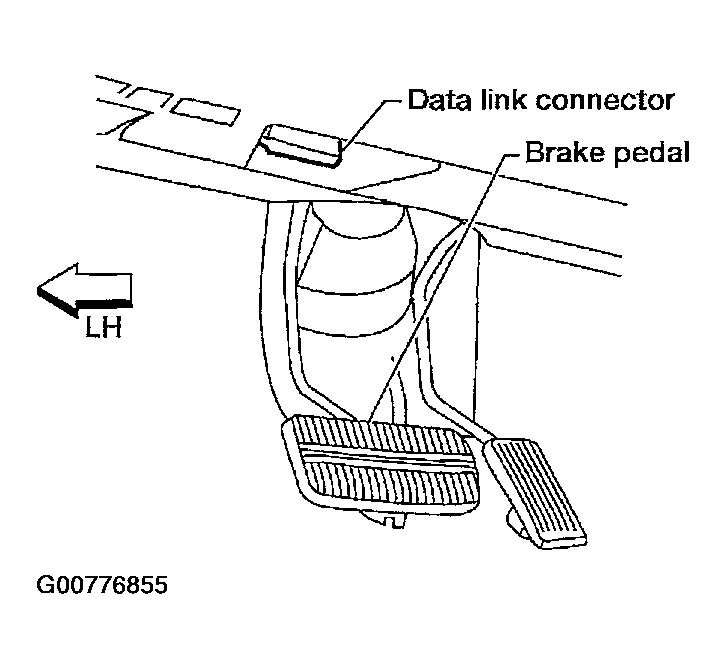

   Fig 1: Identifying Brake Pedal & Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Enter the program according to instruction on the screen or in the operation manual.

   (*: Regarding GST screens in this article, sample screens are shown.)

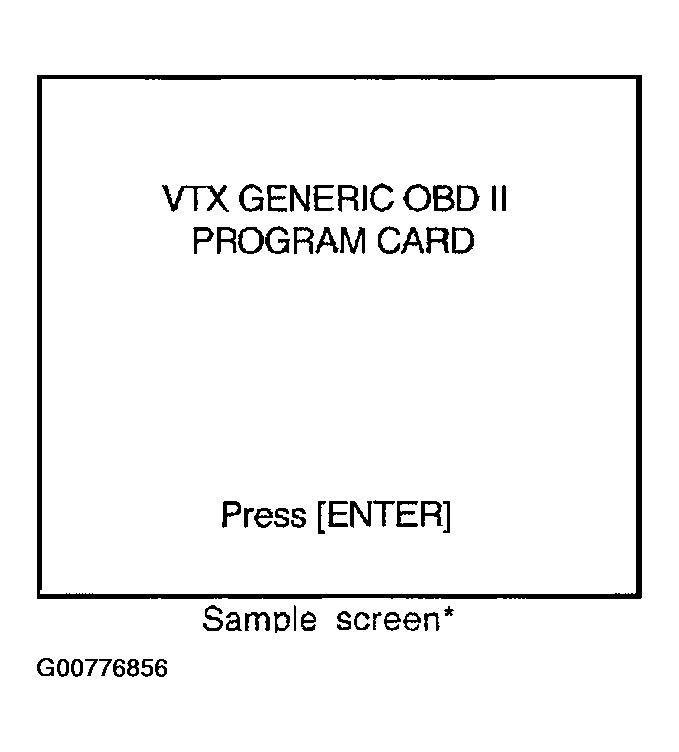

   Fig 2: Identifying Program Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Perform each diagnostic mode according to each service procedure.

For further information, see the GST Operation Manual of the tool maker.

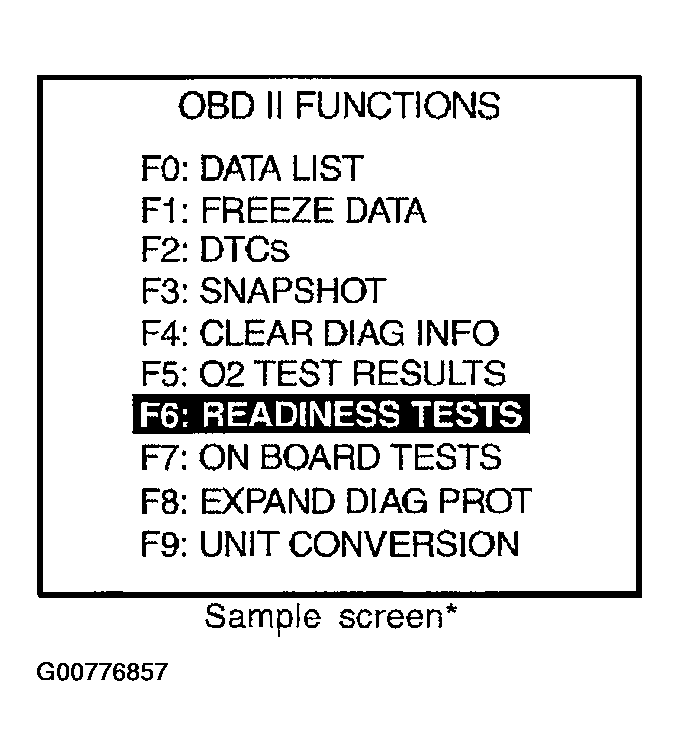

Fig 3: Identifying OBD II Functions Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
