Front Power Window Regulator (Passenger Side) Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OUTPUT SIGNAL

Turn igniting switch ON.
Check voltage between front power window switch (passenger side) connector D35 terminals 8 and 9.

CONNECTOR TERMINAL VOLTAGE CHART

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D35	8 (L)	Ground	Closing	Battery voltage
	8 (L)		Opening	0
	9 (G)		Closing	0
	9 (G)		Opening	Battery voltage

OK or NG

OK : GO TO 2.
NG : Replace front power window switch (passenger side).

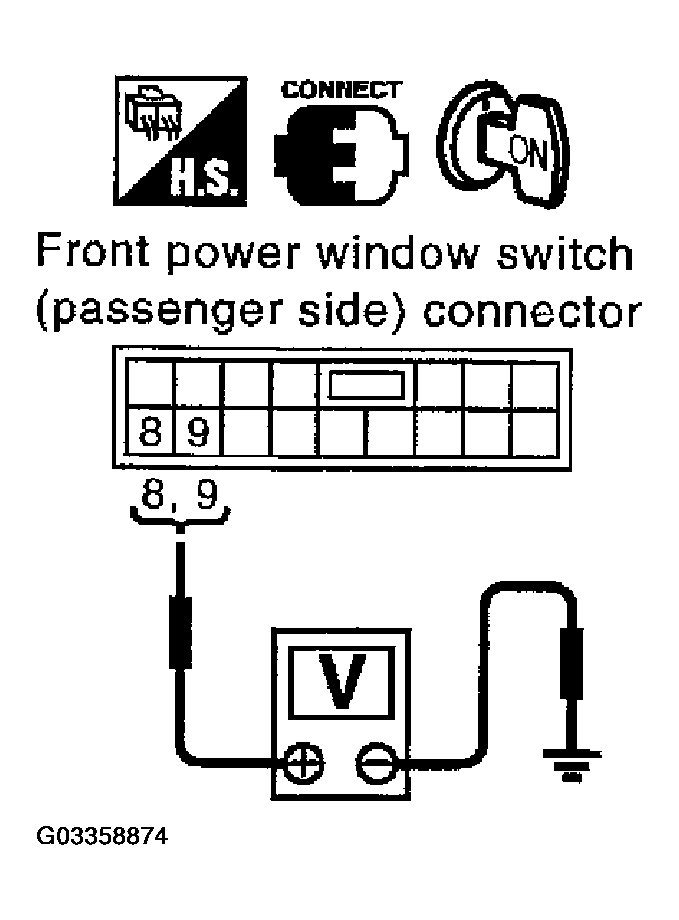

Fig 1: Checking Voltage Between Front Power Window Switch Connector D35 Terminals 8 And 9 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) and front power window regulator (passenger side) connector.
3. Check continuity between front power window switch (passenger side) connector D35 terminals 8, 9 and front power window regulator (passenger side) connector D36 terminals 1, 2.
  1. 8 (L) - 2 (L) : Continuity should exist.
  2. 9 (G) - 1 (G) : Continuity should exist.
OK or NG
1. OK : Replace front power window motor (passenger side).
2. NG : Repair or replace harness between front power window switch (passenger side) and front power window regulator (passenger side).

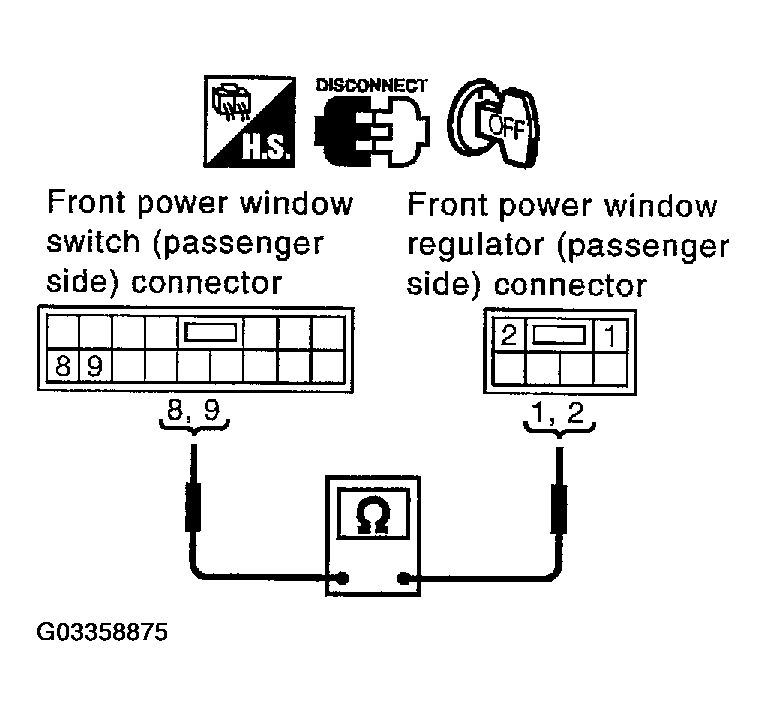

Fig 2: Checking Continuity Between Front Power Window Switch (Passenger Side) Connector D35 Terminals 8, 9 And Front Power Window Regulator (Passenger Side) Connector D36 Terminals 1, 2
Courtesy of NISSAN MOTOR CO., U.S.A.
