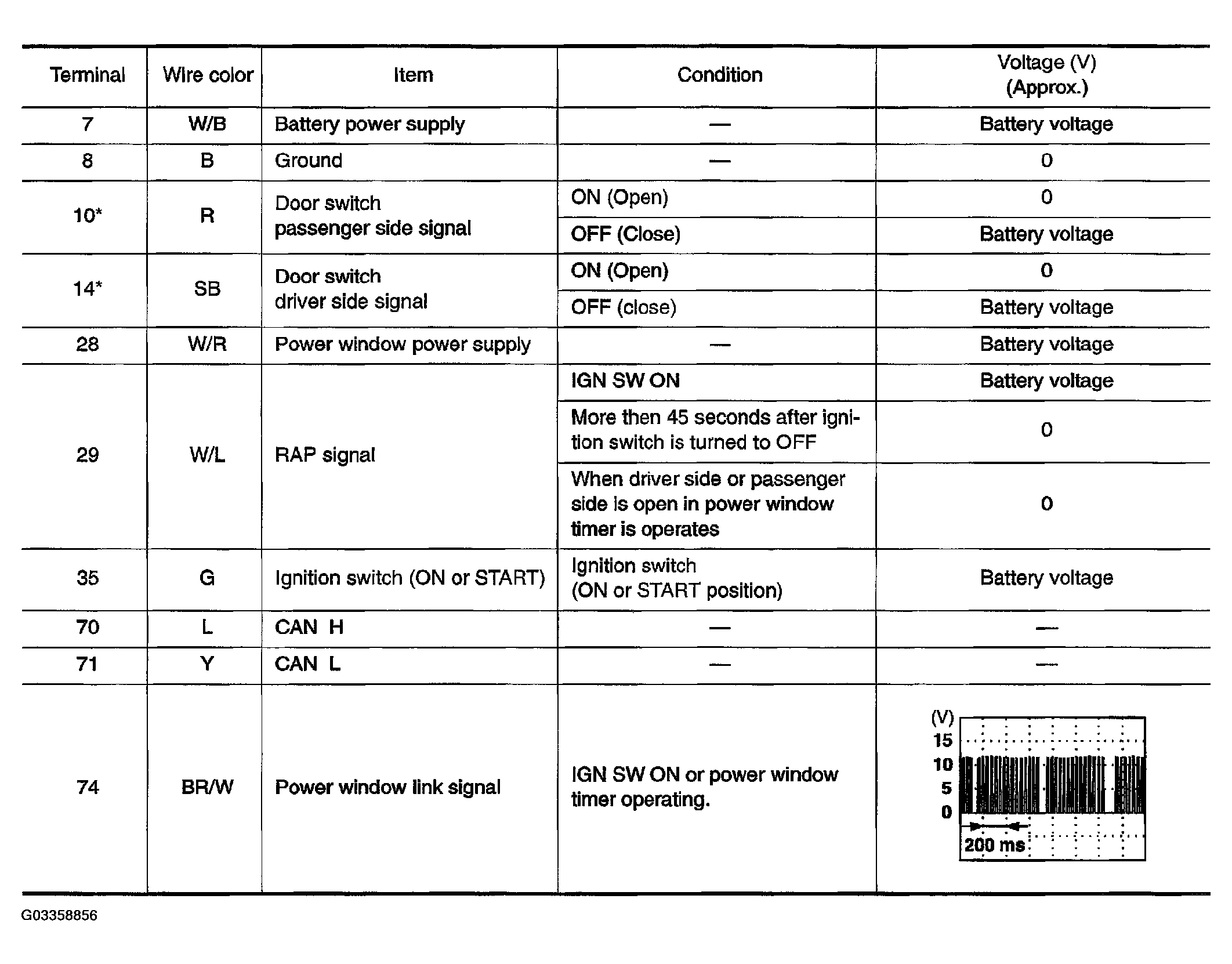

Terminal and Reference Value for BCM
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
*: Does not use to control the power window timer usually.
Use to control the power window timer when meter and A/C amp. or CAN communication is non-standard condition.
