Terminal and Reference Value for Front Power Window Switch (Passenger Side)

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

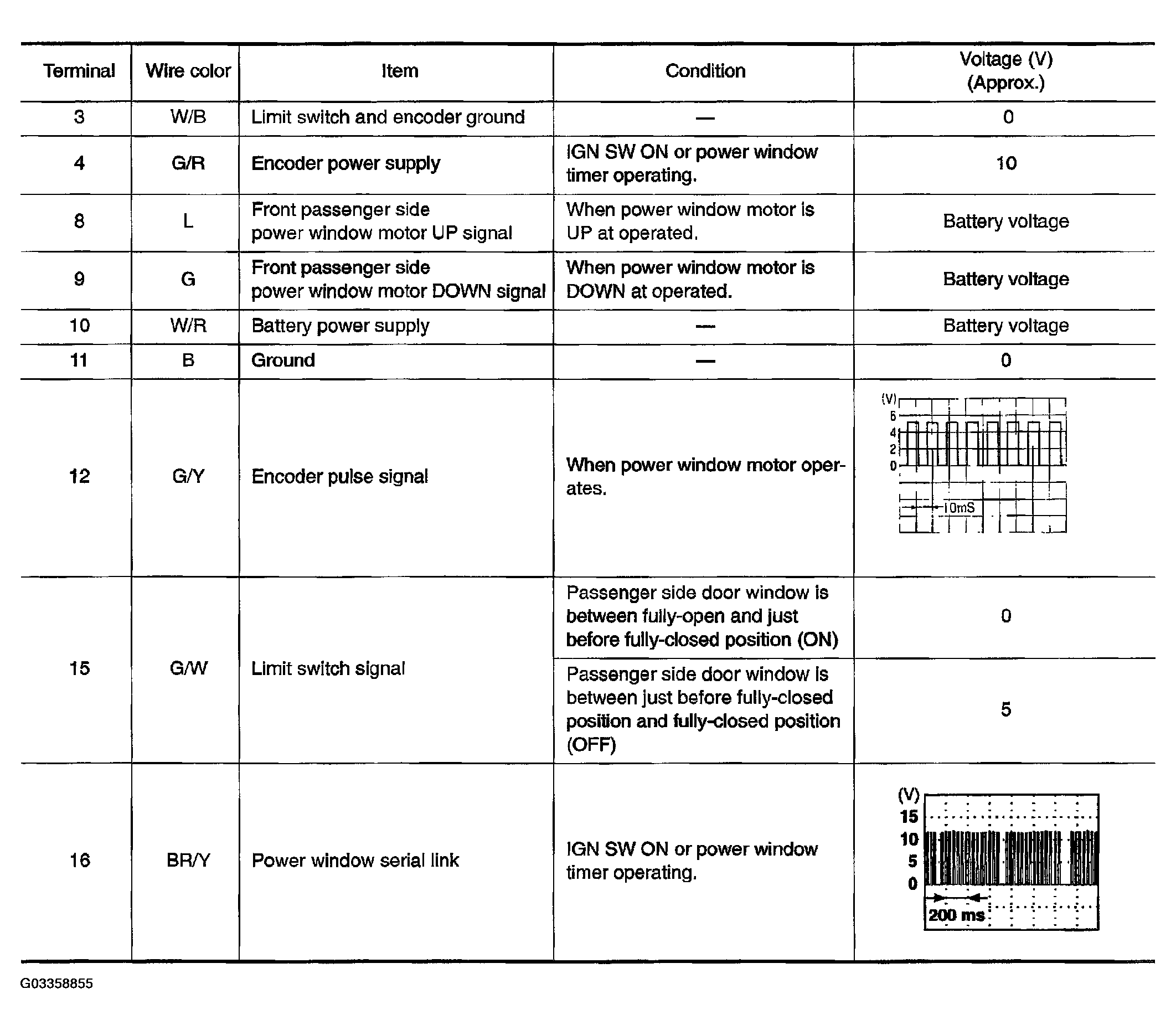

Fig 1: Front Power Window Switch Terminal and Reference Value chart (Passenger Side)

Courtesy of NISSAN MOTOR CO., U.S.A.
