CONSULT-II Inspection Procedure: Notes

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

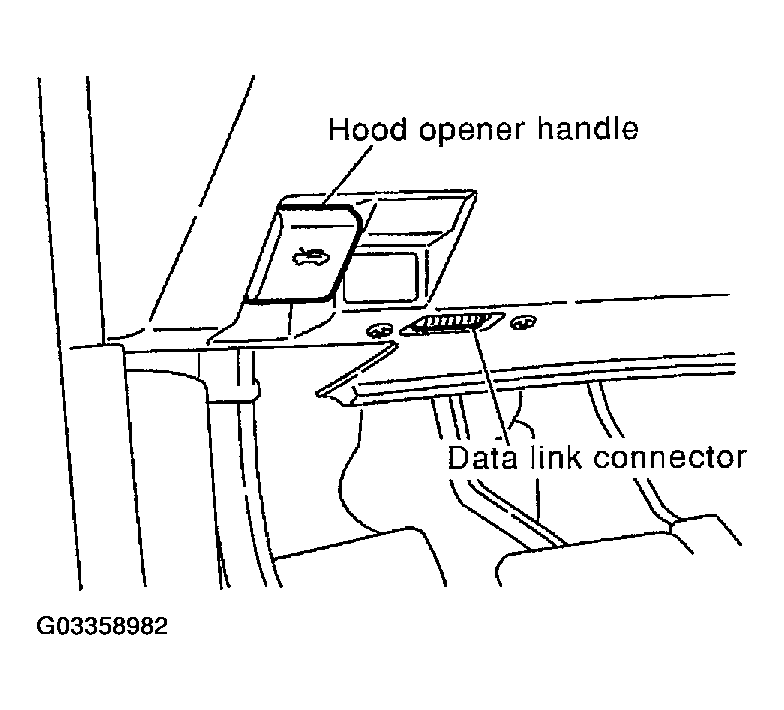

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

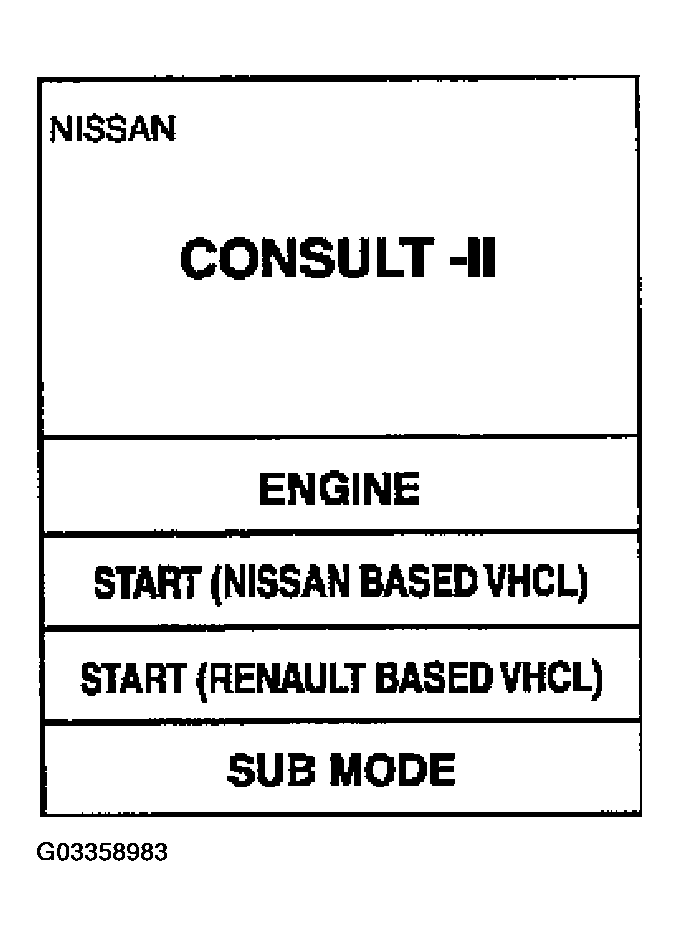

Fig 2: Displaying START
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

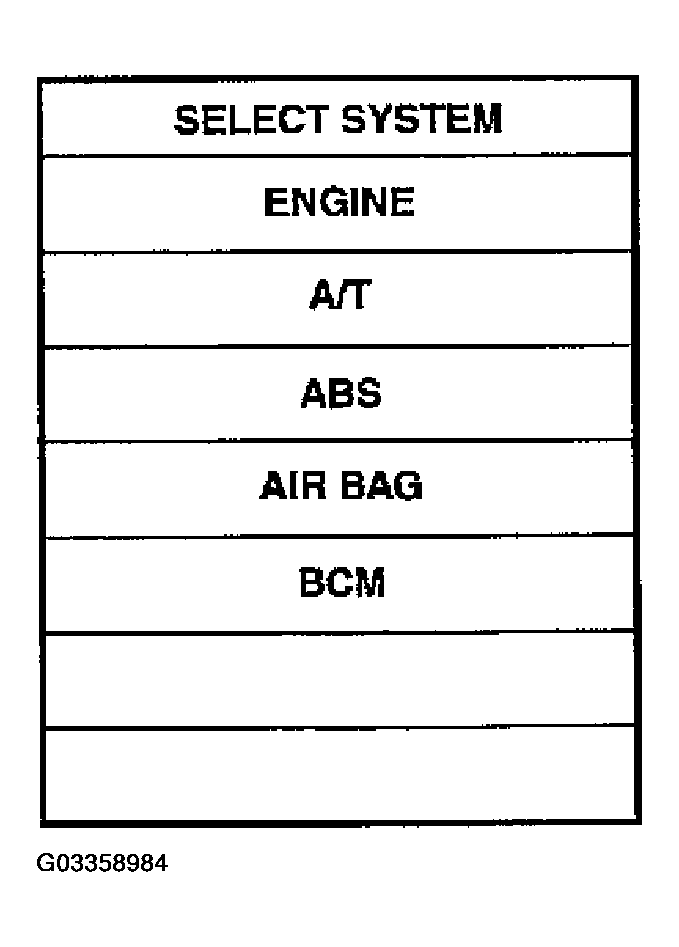

Fig 3: Displaying BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "REAR DEFOGGER".

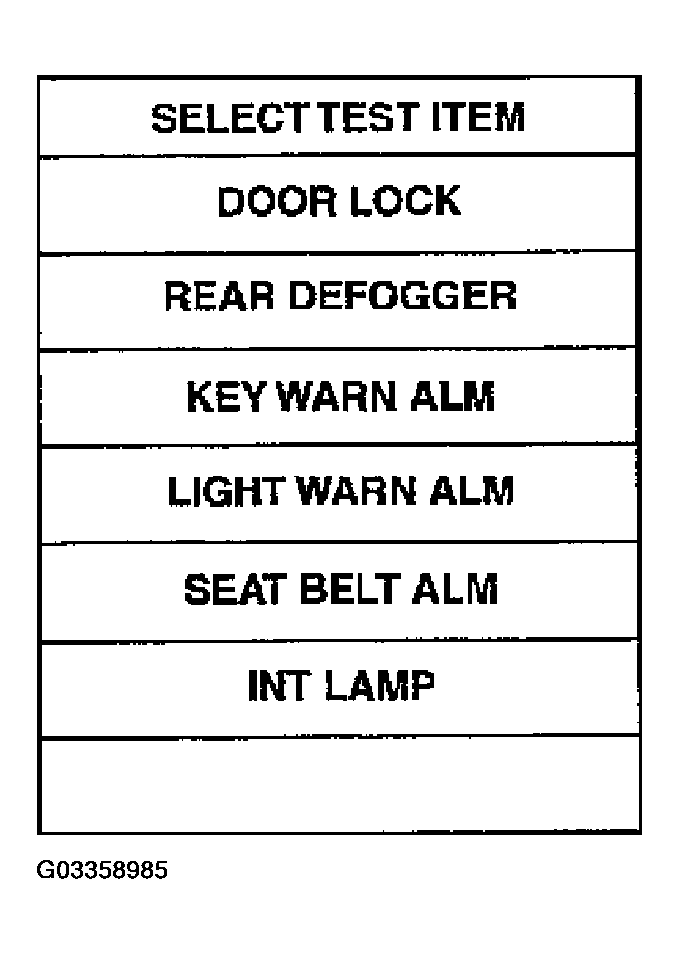

Fig 4: Displaying REAR DEFOGGER
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST".

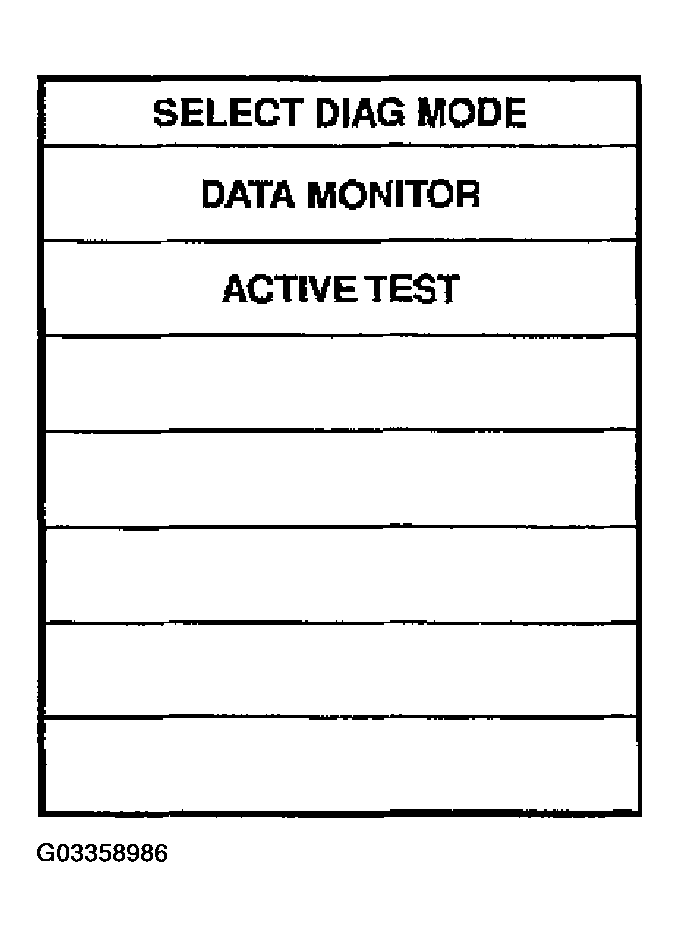

Fig 5: Displaying DATA MONITOR And ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.
