Rear Window Defogger Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect rear window defogger connector.
Turn ignition switch ON.

Check voltage between rear window defogger connector and ground.

VOLTAGE SPECIFICATION CHART

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D97	1 (G)	Ground	Rear window defogger switch ON	Battery voltage
D97	1 (G)	Ground	Rear window defogger switch OFF	0

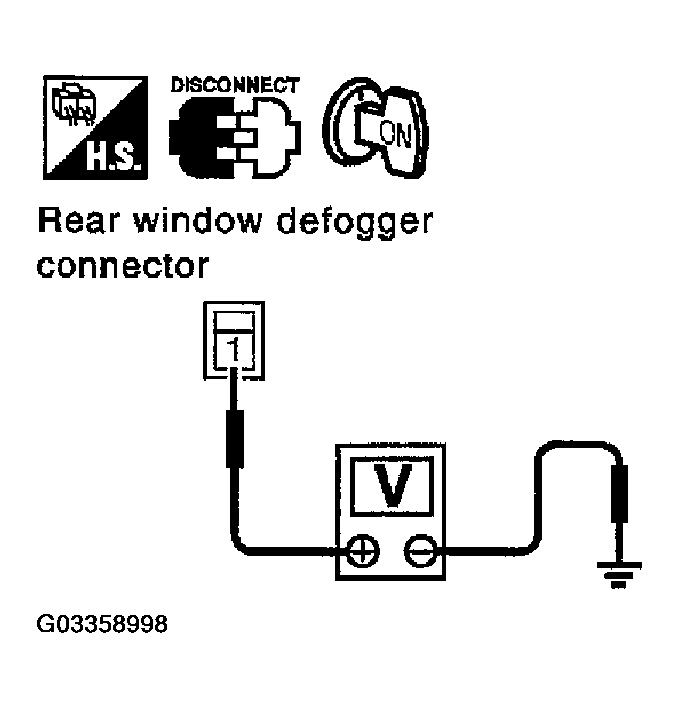

Fig 1: Checking Voltage Between Rear Window Defogger Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.
NG : GO TO 3.

CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear window defogger connector D107 terminal 2 and ground.
  1. 2 (B) - Ground : Continuity should exist.
OK or NG
1. OK : Check filament. Refer to FILAMENT CHECK .
  - If filament is OK.
    Check the condition of the harness and the connector.
  - If filament is NG.
    Repair filament.
2. NG : Repair or replace harness between rear window defogger and ground.

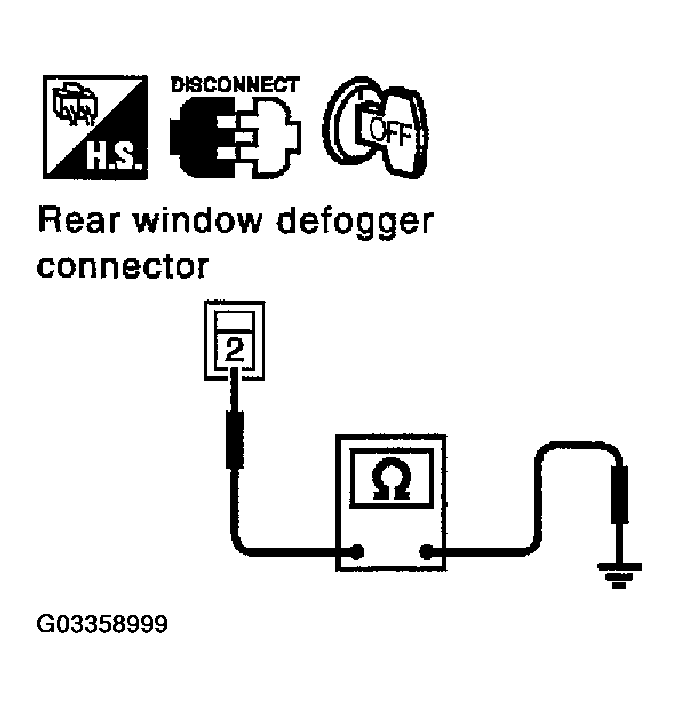

Fig 2: Checking Continuity Between Rear Window Defogger Connector D107 Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear window defogger relay.
3. Check continuity between rear window defogger relay connector B8 terminal 5 and rear window defogger connector D97 terminal 1.
  1. 5 (G) -1 (G) : Continuity should exist.
OK or NG
1. OK : Check the condition of the harness and the connector.
2. NG : Repair or replace harness rear window defogger relay and rear window defogger. When there is malfunction inside back door, replace the back door.
Fig 3: Checking Continuity Between Rear Window Defogger Relay Connector B8 Terminal 5 And Rear Window Defogger Connector D97 Terminal 1
Courtesy of NISSAN MOTOR CO., U.S.A.
