Rear Window Defogger Power Supply Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSE
    • Check 10A fuse (No. 12, located in the fuse block [J/B])
    • Check 20A fuse (No. 77, located in the IPDM E/R)
    • Check 20A fuse (No. 78, located in the IPDM E/R)
    NOTE: Refer to COMPONENT PARTS AND HARNESS CONNECTOR LOCATION .

    OK or NG

    1. OK : GO TO 2.
    2. NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to POWER DISTRIBUTION .
  2. CHECK POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect rear window defogger relay.
    3. Turn ignition switch ON.
    4. Check voltage between rear window defogger relay connector and ground.
    VOLTAGE SPECIFICATION CHART

    Connector Terminals (Wire color) Voltage (V) (Approx.)
    (+) (-)
    B8 1 (G) Ground Battery voltage
    3 (L)
    6 (W)

    OK or NG

    1. OK : GO TO 3.
    2. NG : Repair or replace harness between fuse block (J/B) and rear window defogger relay.

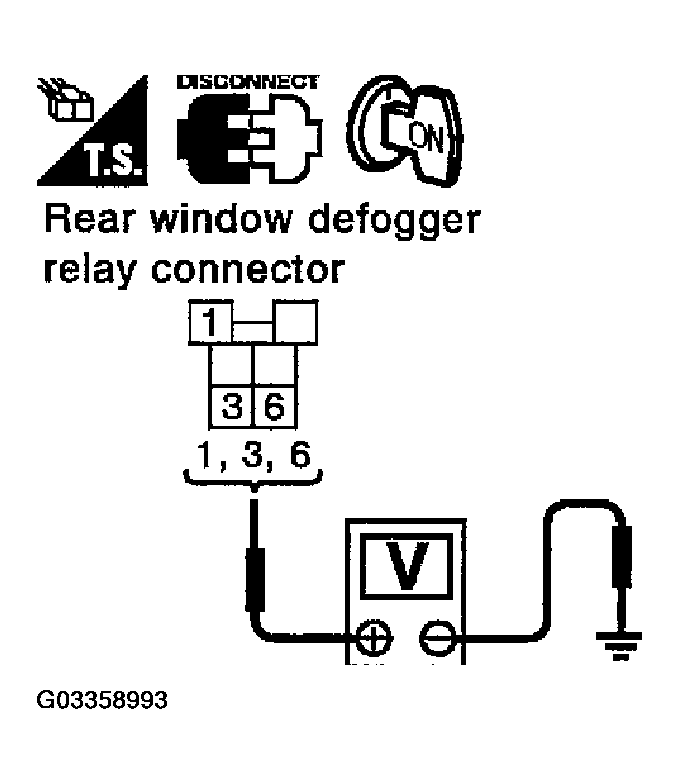

    Fig 1: Check Voltage Between Rear Window Defogger Relay Connector And Ground
    G03358993Courtesy of NISSAN MOTOR CO., U.S.A.


  1. CHECK REAR WINDOW DEFOGGER RELAY

    Check continuity between rear window defogger terminals 3 and 5, 6 and 7.

    TERMINAL CONTINUITY CHART

    Terminal Condition Continuity
    3 5 12V direct current supply between terminals 1 and 2 Yes
    No current supply No
    6 7 12V direct current supply between terminals 1 and 2 Yes
    No current supply No

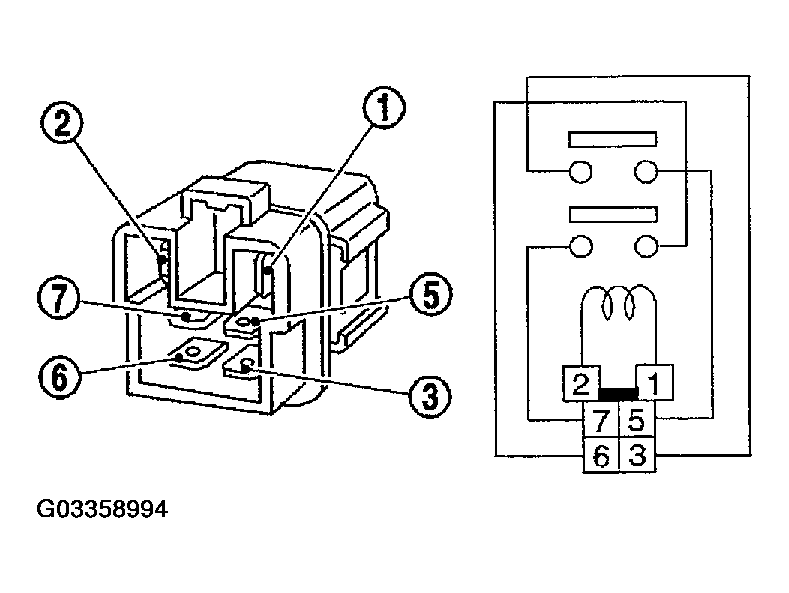

    Fig 1: Checking Continuity Between Rear Window Defogger Terminals 3 And 5, 6 And 7
    G03358994Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 4.
    2. NG : Replace rear window defogger relay.
  2. CHECK GROUND CIRCUIT
    1. Installation rear window defogger relay.
    2. Turn ignition switch ON.
    3. Check voltage between IPDM E/R connector and ground.
      VOLTAGE SPECIFICATION CHART

      Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
      (+) (-)
      E9 54 (G/R) Ground When rear window defogger switch ON 0
      When rear window defogger switch OFF Battery voltage

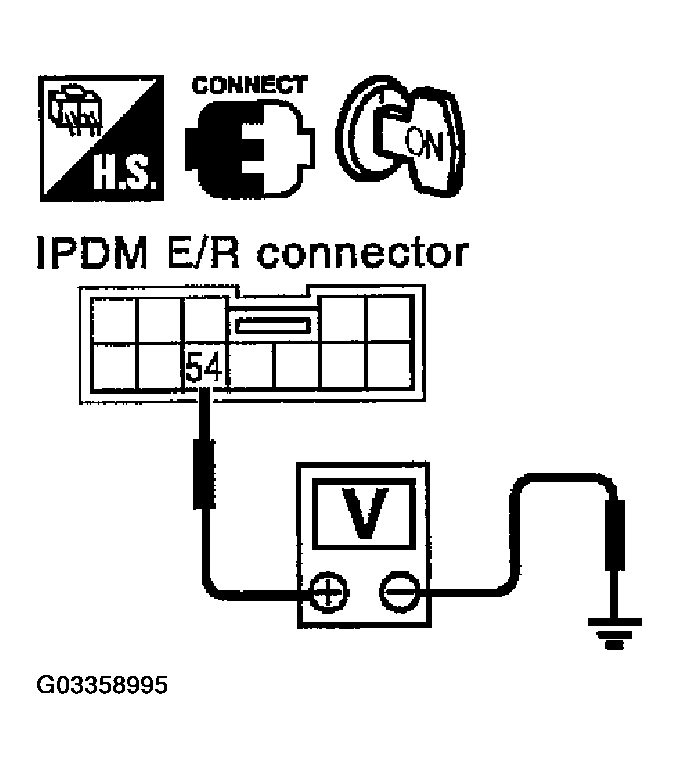

      Fig 2: Checking Voltage Between IPDM E/R Connector And Ground
      G03358995Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Rear window defogger power supply circuit check is OK.
    2. NG : GO TO 5.
  3. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R connector and rear window defogger relay.
    3. Check continuity between IPDM E/R connector E9 terminal 54 and rear window defogger relay connector B8 terminal 2.
      1. 54 (G/R) - 2 (G/R) : Continuity should exists.

    OK or NG

    1. OK : GO TO 6.
    2. NG : Repair or replace harness between IPDM E/R and rear window defogger relay.

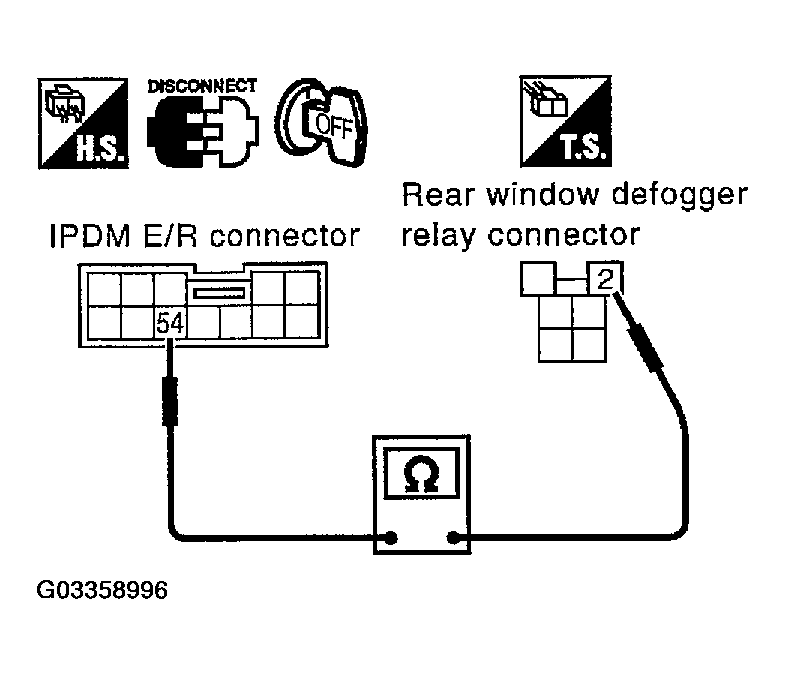

    Fig 3: Checking Continuity Between IPDM E/R Connector E9 Terminal 54 And Rear Window Defogger Relay Connector B8 Terminal 2
    G03358996Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK REAR WINDOW DEFOGGER RELAY OUTPUT SIGNAL
    1. Connect IPDM E/R and rear window defogger relay.
    2. Turn ignition switch ON.
    3. Check voltage between IPDM E/R connector E9 terminal 54 and ground.
      1. 54 (G/R) - Ground : Battery voltage

    OK or NG

    1. OK : Replace IPDM E/R.
    2. NG : Check the condition of the harness and the connector.

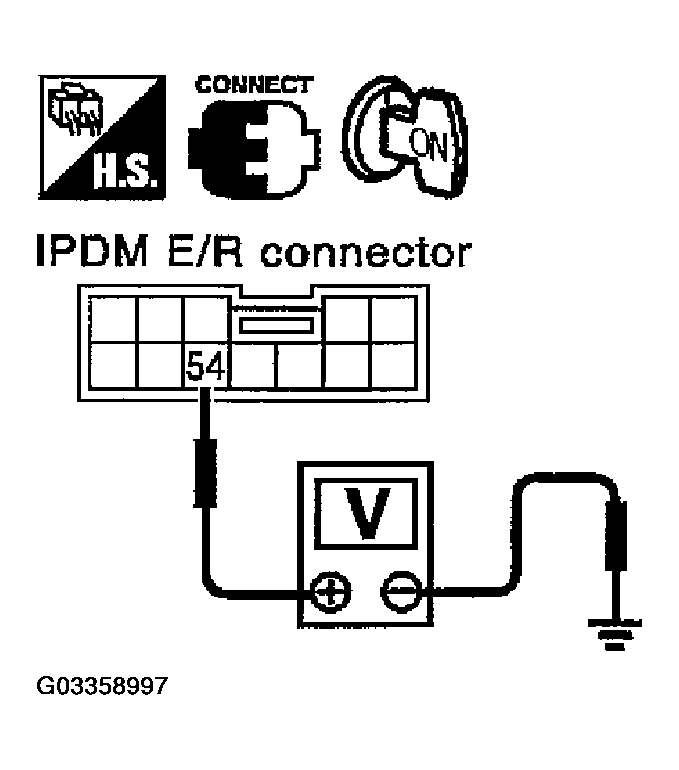

    Fig 4: Checking Voltage Between IPDM E/R Connector E9 Terminal 54 And Ground
    G03358997Courtesy of NISSAN MOTOR CO., U.S.A.
