Consult-II Basic Operation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

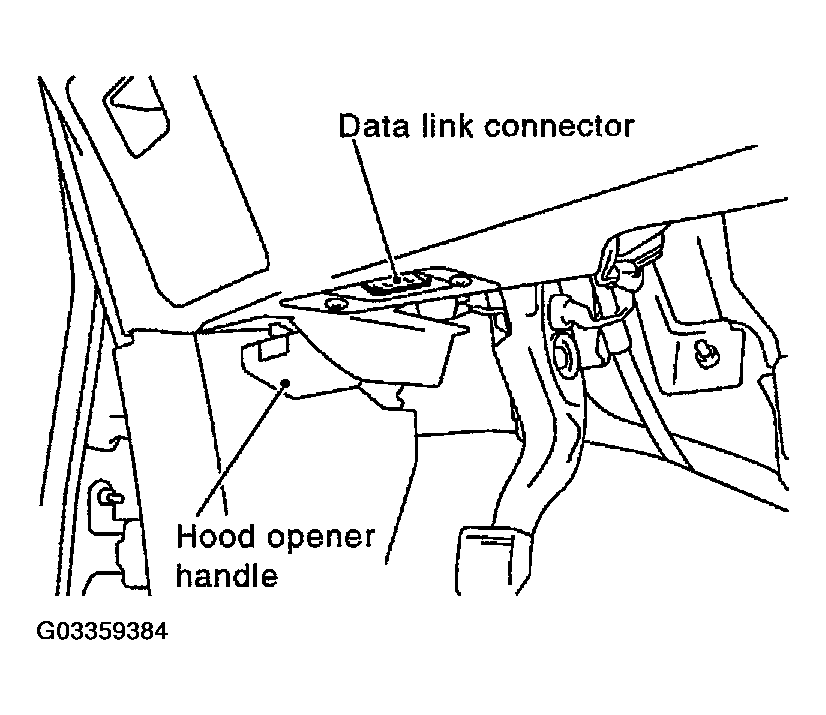

    Fig 1: Locating Data Link Connector
    G03359384Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

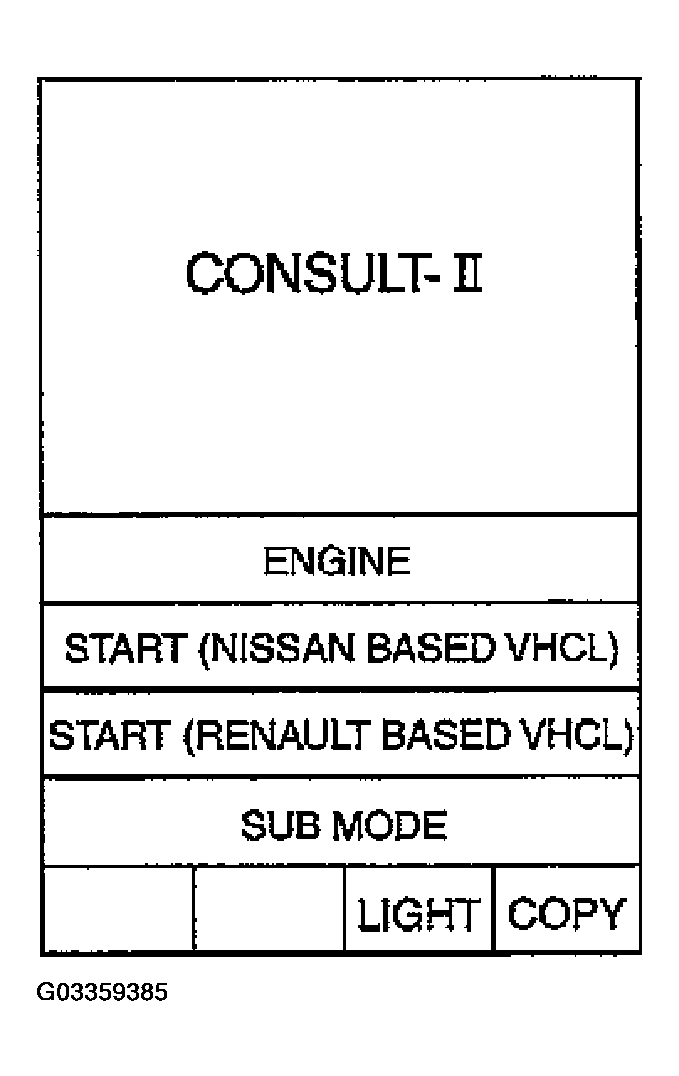

    Fig 2: Displaying "START (NISSAN BASED VHCL)"
    G03359385Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

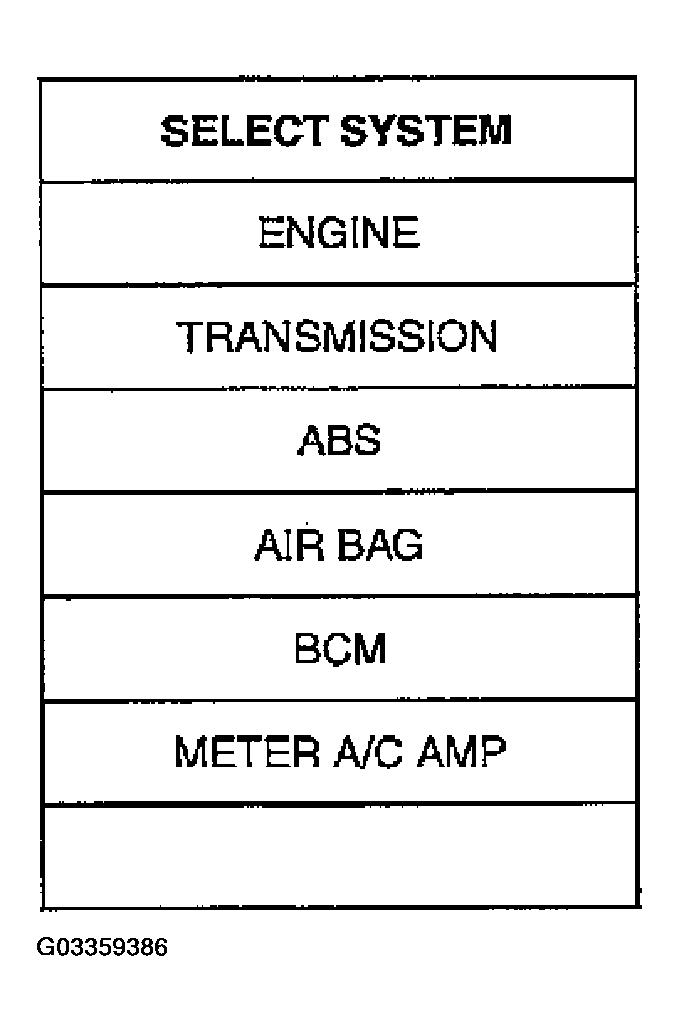

    Fig 3: Displaying "BCM" On "SELECT SYSTEM" Screen
    G03359386Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.

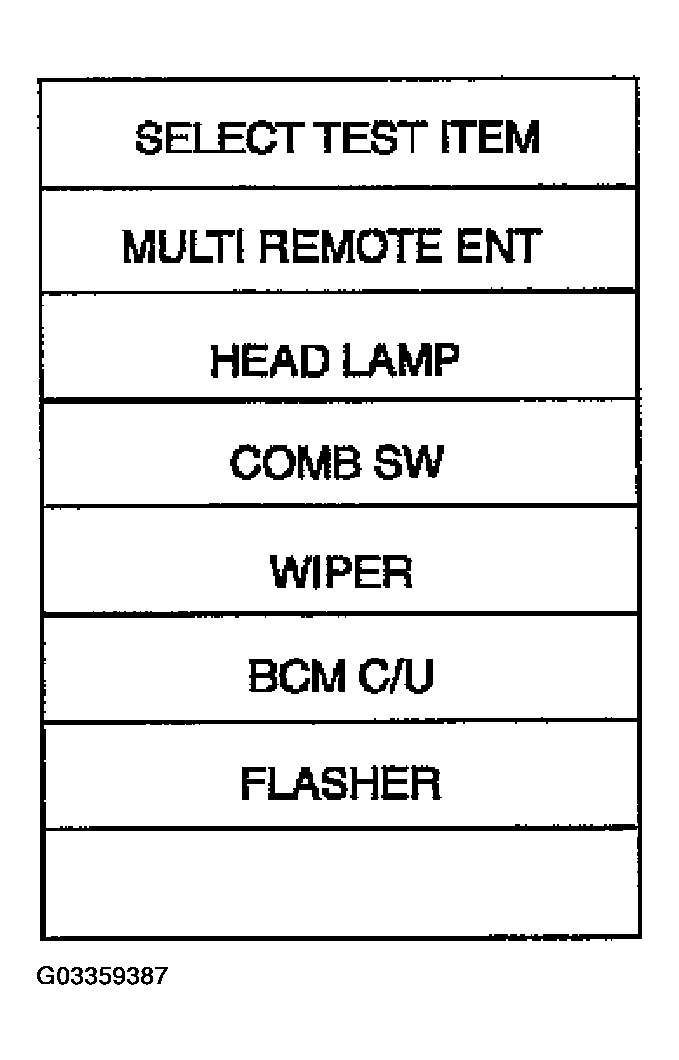

    Fig 4: Displaying "HEAD LAMP" On "SELECT TEST ITEM" Screen
    G03359387Courtesy of NISSAN MOTOR CO., U.S.A.
