Lighting Switch Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LIGHTING SWITCH INPUT SIGNAL
Select "BCM" in CONSULT-II. Operate lighting switch via "AUTO LIGHT SW" on data monitor screen, and make sure light turns on and off as commanded.
1. When lighting switch is AUTO position : AUTO LIGHT SW ON
OK or NG
1. OK : INSPECTION END
2. NG : Replace lighting switch.

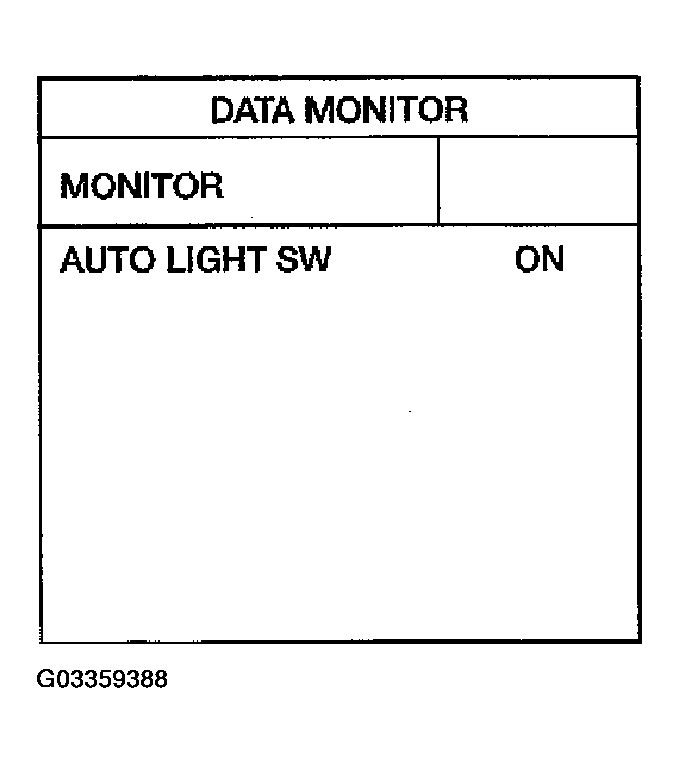

Fig 1: Displaying "AUTO LIGHT SW" On Data Monitor Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
