Optical sensor System Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK OPTICAL SENSOR INPUT SIGNAL
Select "BCM" in CONSULT-II. Using "OPTICAL SENSOR" data from "DATA MONITOR", check difference in the voltage when the auto light sensor is illuminated and not illuminated.
1. Illuminated
2. Optical sensor : 3.1V or more
3. Not illuminated
4. Optical sensor : 0.6V or less
CAUTION: Optical sensor must be securely subjected to work lamp light. If the optical sensor is insufficiently illuminated, the measured value may not satisfy the standard.

OK or NG
1. OK : INSPECTION END
2. NG : GO TO 2.

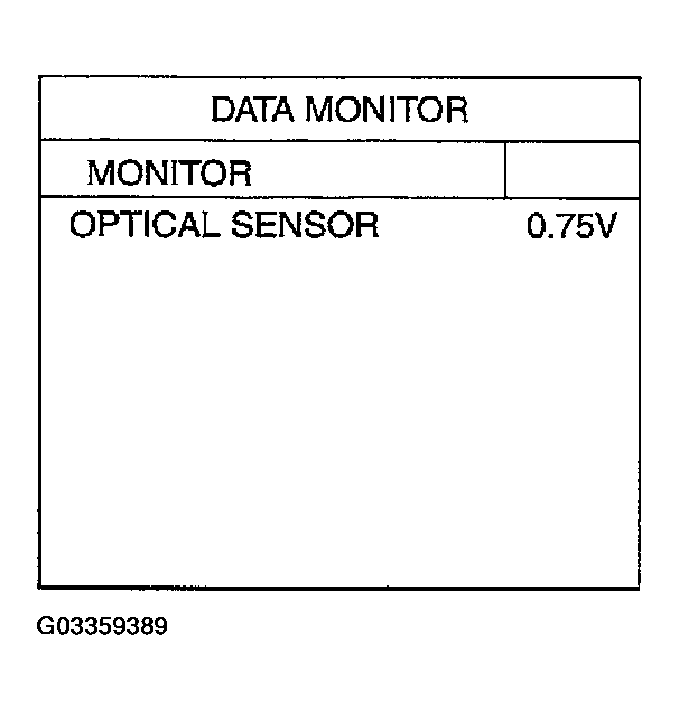

Fig 1: Displaying "OPTICAL SENSOR" In Data Monitor Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OPTICAL SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and optical sensor connector.
3. Check continuity (open circuit) between BCM harness connector M36 terminal 45 (BR/Y) and optical sensor harness connector M16 terminal 1 (BR/Y).
  1. Continuity should exist.
4. Check continuity (short circuit) between BCM harness connector M36 terminal 45 (BR/Y) and ground.
  1. Continuity should not exist.

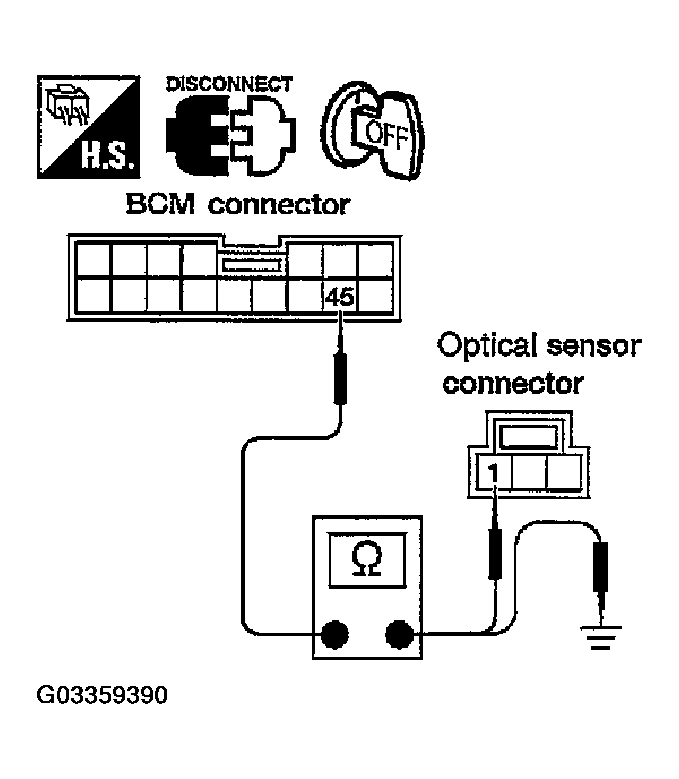

  Fig 2: Checking Continuity Between BCM Harness Connector M36 Terminal 45 And Optical Sensor Harness Connector M16 Terminal 1, And Between BCM Harness Connector M36 Terminal 45 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 3.
2. NG : Repair harness or connector.
CHECK OPTICAL SENSOR POWER SUPPLY CIRCUIT
1. Check continuity (open circuit) between BCM harness connector M36 terminal 38 (W) and optical sensor harness connector M16 terminal 2 (W).
  1. Continuity should exist.
2. Check continuity (short circuit) between BCM harness connector M36 terminal 38 (W) and ground.
  1. Continuity should not exist.
OK or NG
1. OK : GO TO 4.
2. NG : Repair harness or connector.

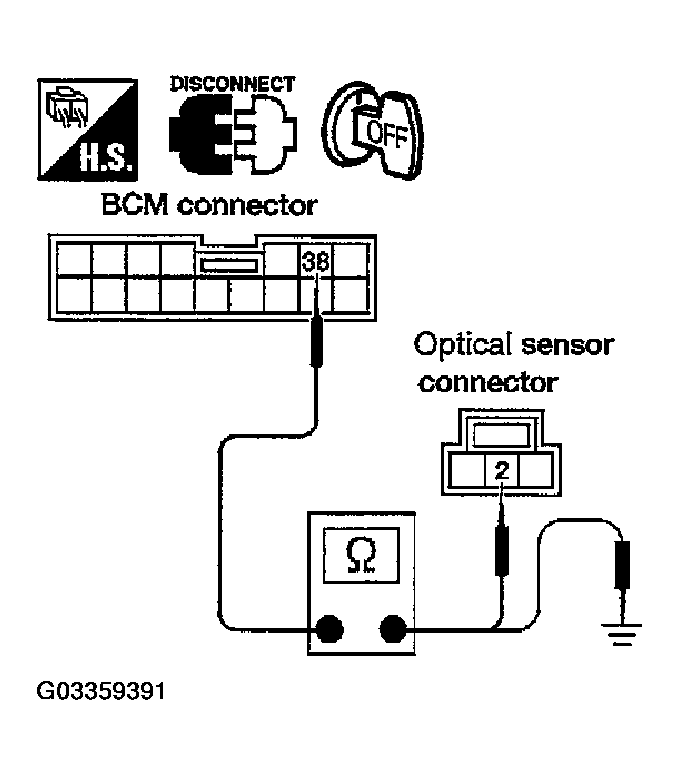

Fig 3: Checking Continuity Between BCM Harness Connector M36 Terminal 38 And Optical Sensor Harness Connector M16 Terminal 2, And Between BCM Harness Connector M36 Terminal 38 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OPTICAL SENSOR POWER SUPPLY CIRCUIT
1. Check continuity (open circuit) between BCM harness connector M37 terminal 53 (P) and optical sensor harness connector M16 terminal 3 (P).
  1. Continuity should exist.
2. Check continuity (short circuit) between BCM harness connector M37 terminal 53 (P) and ground.
  1. Continuity should not exist.

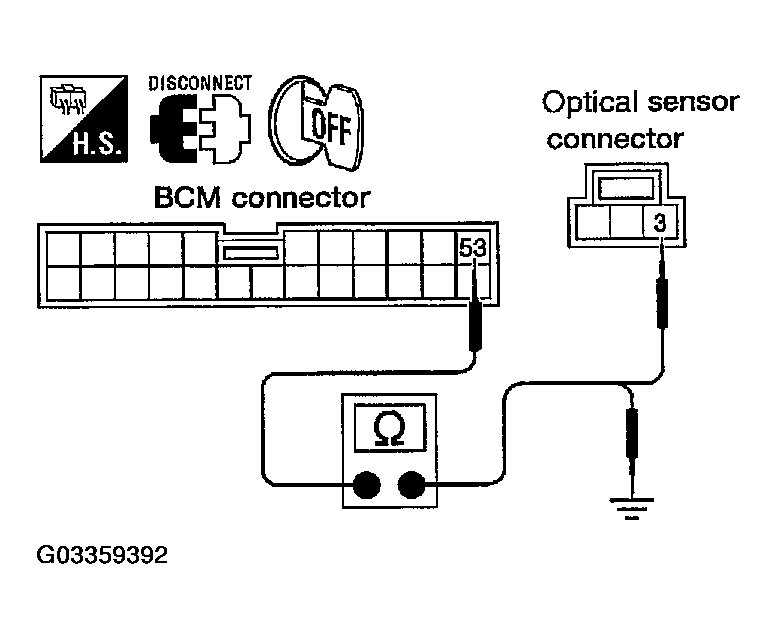

  Fig 4: Checking Continuity Between BCM harness Connector M37 Terminal 53 And Optical Sensor Harness Connector M16 Terminal 3, And Between BCM Harness Connector M37 Terminal 53 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 5.
2. NG : Repair harness or connector.
CHECK OPTICAL SENSOR VOLTAGE
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM harness connector M36 terminal 45 (BR/Y) and ground.
  1. Approx. 5V should exist.
OK or NG
1. OK : Replace the optical sensor.
2. NG : Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .

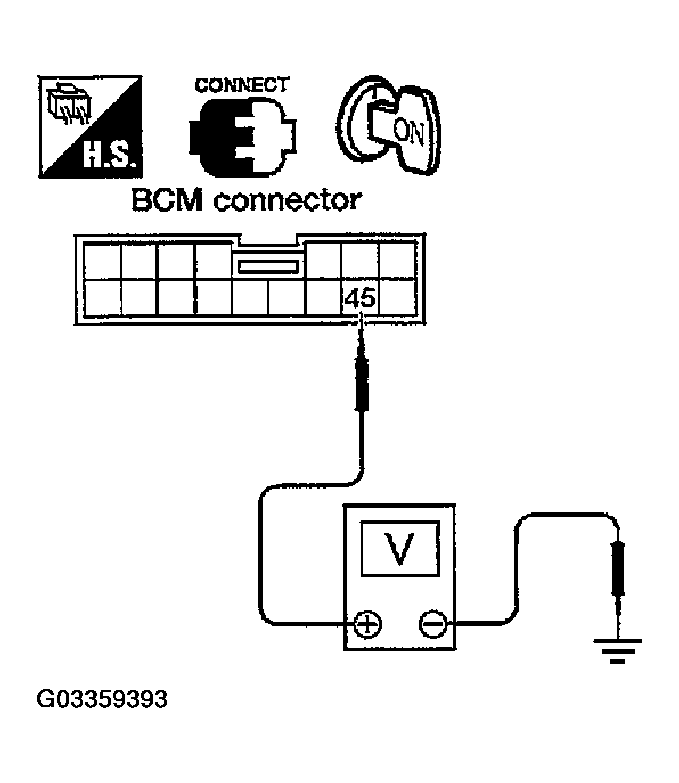

Fig 5: Checking Voltage Between BCM Harness Connector M36 Terminal 45 And Ground
