Removal and Installation of Optical Sensor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument mask (LH) assembly. Refer to INSTRUMENT MASK (LH; AUTO LIGHT SENSOR)/INSTRUMENT MASK (RH; SUN SENSOR) .
  2. While pressing pawl in direction as shown in the figure, remove the sensor unit from instrument mask.

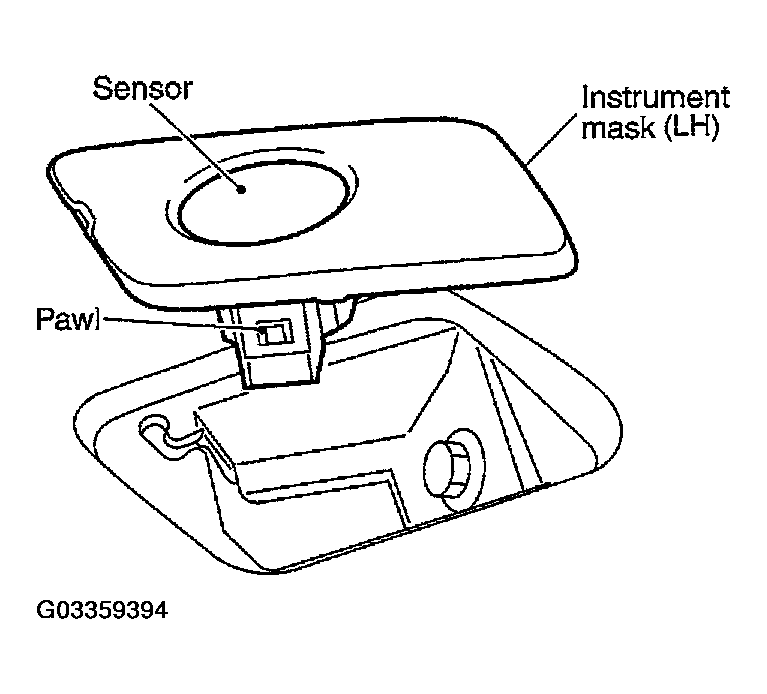

    Fig 1: Removing Sensor Unit From Instrument Mask
    G03359394Courtesy of NISSAN MOTOR CO., U.S.A.
