AV Communication Line Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK A/C AND AV SWITCH CIRCUIT

Turn ignition switch OFF.
Disconnect display unit connector and A/C and AV switch connector.

Check continuity between display unit and A/C and AV switch.

A/C AND AV SWITCH CIRCUIT CHECK CHART

Terminals				Continuity
Display unit		A/C and AV switch
Connector	Terminal (Wire color)	Connector	Terminal (Wire color)
M39	11 (L/G)	M48	6 (L/G)	Yes
	13 (L/R)		8 (L/R)
	12		7

Check continuity between display unit and ground.

AV COMMUNICATION LINE HARNESS CHECK CHART

Terminals			Continuity
Connector	Terminal (Wire color)	Terminal
M39	11 (L/G)	Ground	No
	13 (L/R)

OK or NG

OK : GO TO 2.
NG : Replace harness.

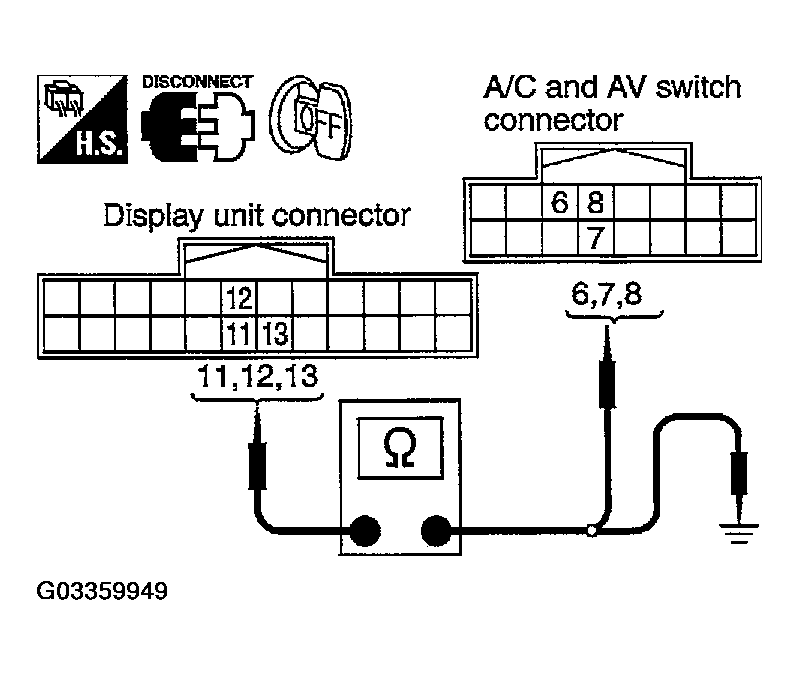

Fig 1: Checking Continuity Between Display Unit And A/C And AV Switch, And Between Display Unit And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK AV COMMUNICATION SIGNAL
1. Connect display unit connector and A/C and AV switch connector.
2. Turn ignition switch ON.
3. Check the signal between display unit harness connector M39 terminals 11 (L/G), 13 (L/R) and ground with CONSULT-II or oscilloscope.
1. 11 (L/G), 13 (L/R) - Ground : Refer to " TERMINALS AND REFERENCE VALUE FOR DISPLAY UNIT ".
OK or NG
1. OK : Replace A/C and AV switch.
2. NG : Replace display unit.

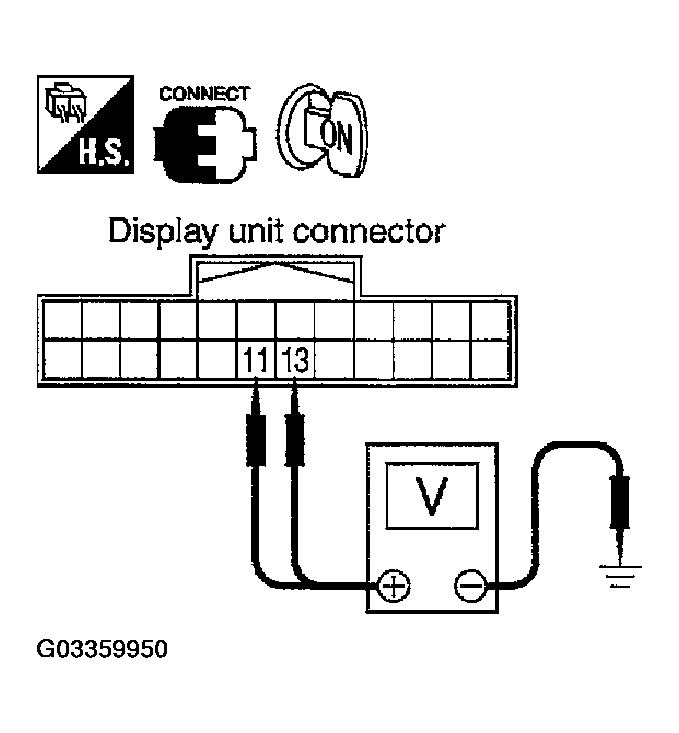

Fig 2: Checking Voltage Between Display Unit Harness Connector M39 Terminals 11, 13 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
