Removal and Installation of Display Unit: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center ventilator grille. Refer to WORK STEP .
  2. Remove screws (4) and remove display unit.

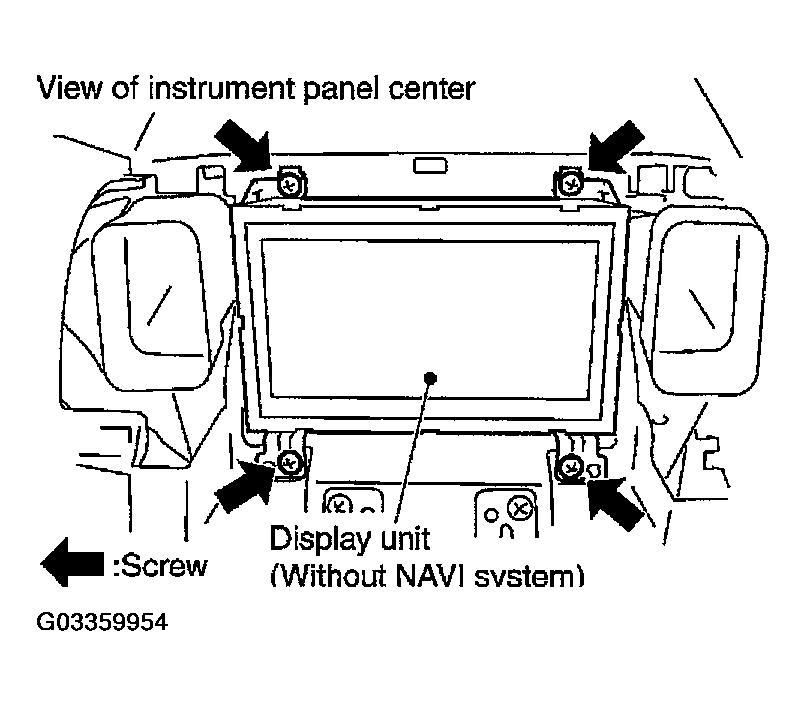

    Fig 1: Removing Display Unit
    G03359954Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4) and remove bracket.

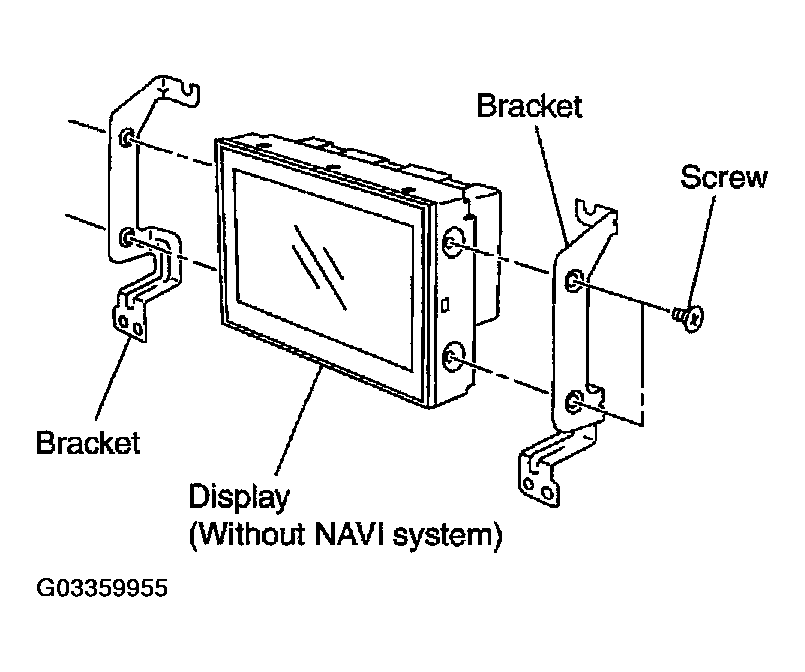

    Fig 2: Removing Bracket
    G03359955Courtesy of NISSAN MOTOR CO., U.S.A.
