Operation Procedures

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Turn the audio system off.
While pressing the "PAUSE/MUTE" switch, turn the "VOLUME" control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)

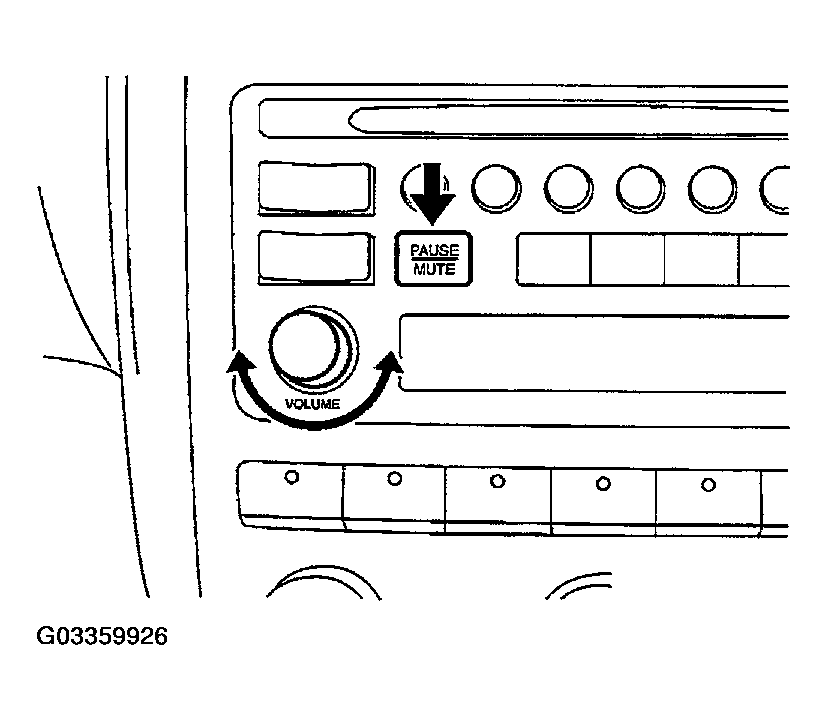

Fig 1: Locating "PAUSE/MUTE" Switch And "VOLUME" Control Dial
Courtesy of NISSAN MOTOR CO., U.S.A.
Display unit connection check screen.

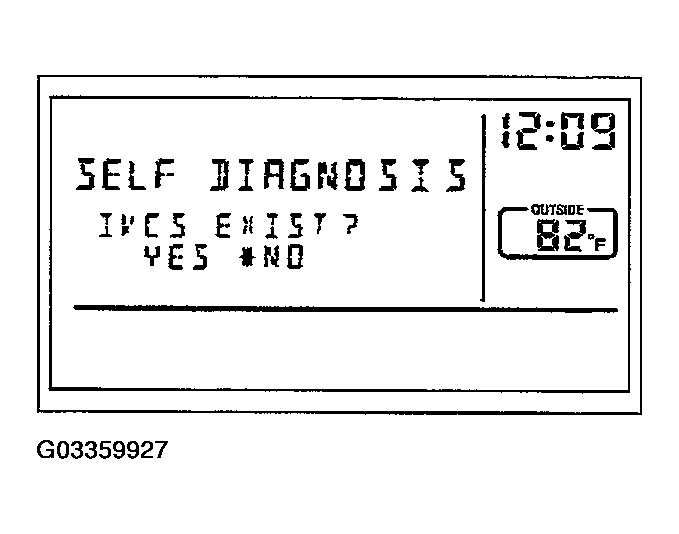

Fig 2: Displaying Display Unit Connection Check Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select each connecting unit (IVCS, CHANGER, SATELLITE RADIO).
Self-diagnosis screen is displayed.
- Using the joystick, select each item, and perform diagnosis.
CAUTION: If self-diagnosis cannot activated, Refer to "TROUBLE DIAGNOSIS CHART BY SYMPTOM ".

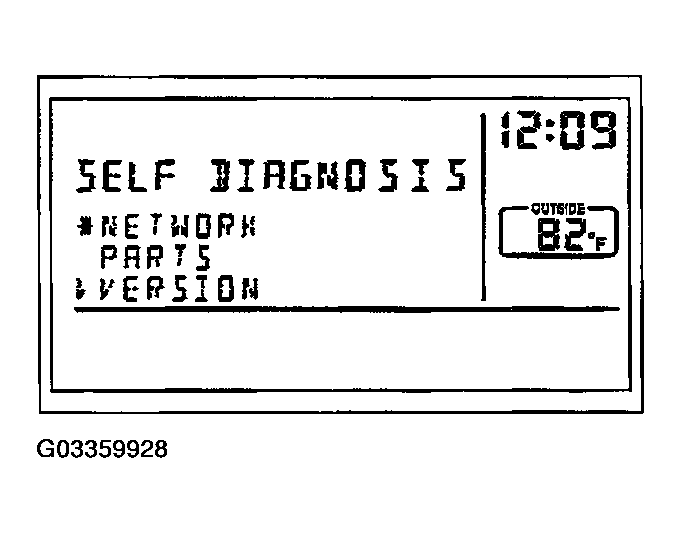

Fig 3: Displaying "SELF DIAGNOSIS" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
