Color of RGB Image is Not Proper (NAVI Screen looks reddish)

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK RGB HARNESS

Turn ignition switch OFF.
Disconnect NAVI control unit connector and display control unit connector.
Check continuity between NAVI control unit and display control unit.
Check continuity between NAVI control unit and ground.
- When the screen looks reddish.

HARNESS CHECK CHART (1 OF 2)

Terminals				Continuity
NAVI control unit (+)		Display control unit (-)
Connector	Terminal (Wire color)	Connector	Terminal (Wire color)
M62	21 (BR/W)	M43	46 (BR/W)	Yes
	17		45

HARNESS CHECK CHART (2 OF 2)

Terminals			Continuity
NAVI control unit (+)		(-)
Connector	Terminal (Wire color)
M62	21 (BR/W)	Ground	No
	17

OK or NG

OK : GO TO 2.
NG : Repair harness or connector.

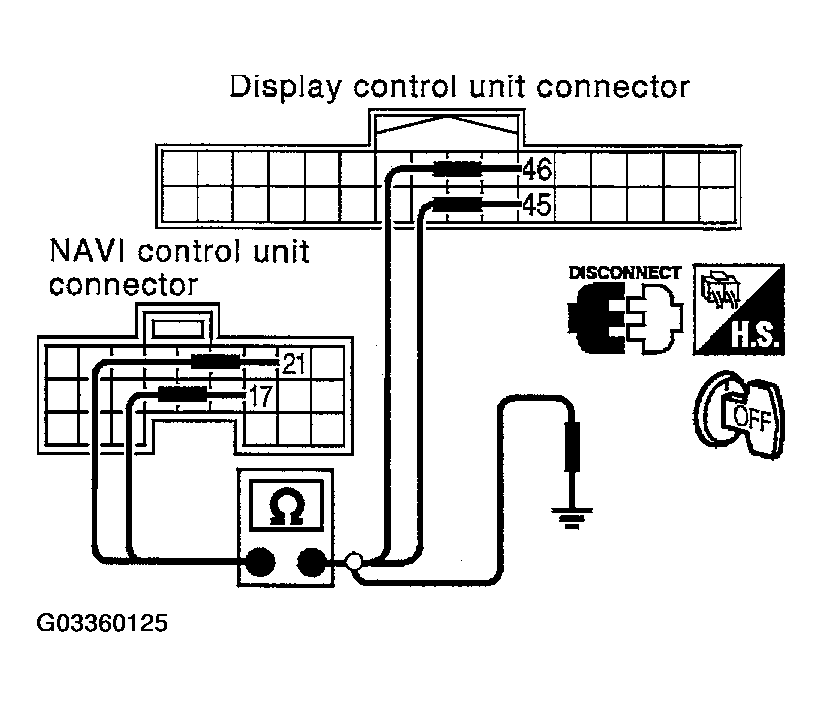

Fig 1: Checking Continuity Between NAVI Control Unit And Display Control Unit Connector Terminals, And Between NAVI Control Unit And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK RGB SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display "Color bar" by "CONFIRMATION/ADJUSTMENT" mode.
4. Check signal between NAVI control unit terminal 21 (BR/W) and 17 with CONSULT-II or oscilloscope.
  - When the screen looks reddish.
  Voltage signal between NAVI control unit connector M62 terminal 21 (BR/W) and 17.
  1. 21 (BR/W) -17 : Refer to " TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT ".

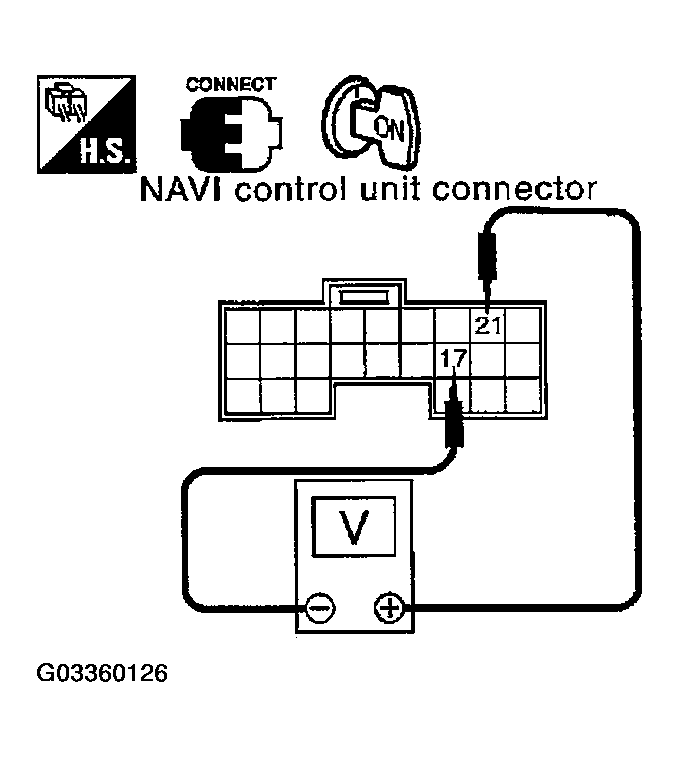

Fig 2: Checking Voltage Between NAVI Control Unit Terminal 21 And 17
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Replace display control unit.
2. NG : Replace NAVI control unit.
