Removal and Installation of Display Control Unit: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to COMPONENT PARTS DRAWING .
Remove steering lock escutcheon. Refer to COMPONENT PARTS DRAWING .
Remove screws (2) and remove display control unit.
CAUTION: See the illustration attached, when install or remove screws for display control unit.

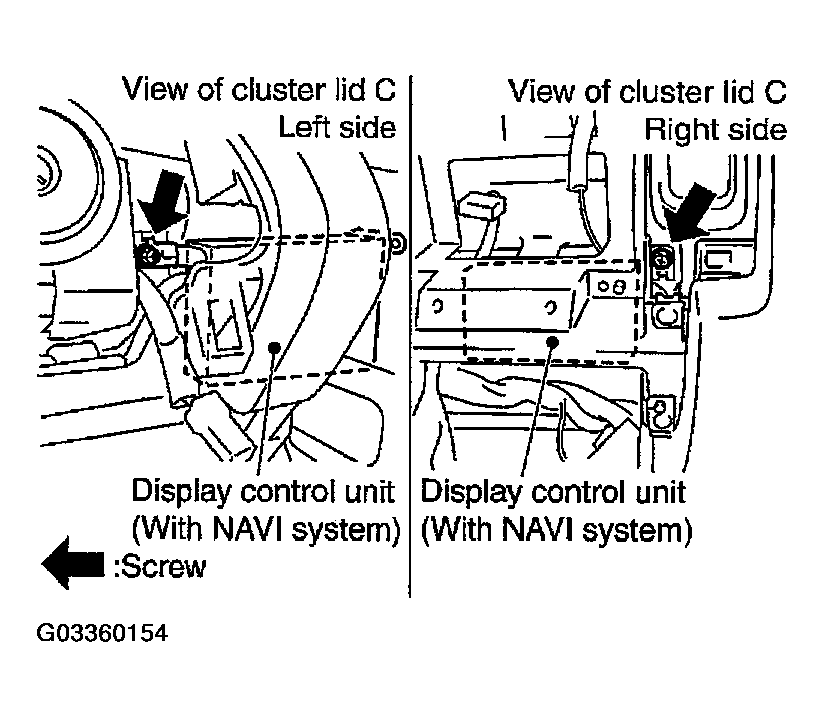

Fig 1: Removing Display Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (4) and remove bracket.

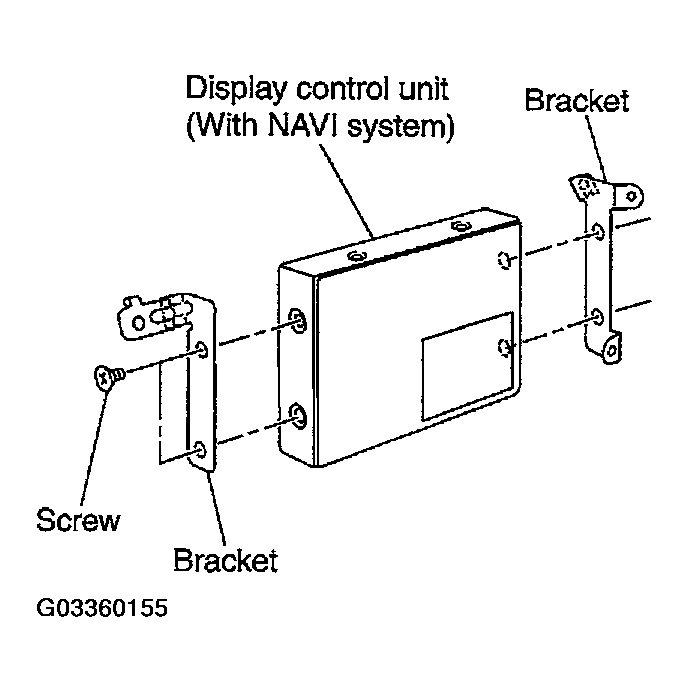

Fig 2: Removing Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
