Removal and Installation of Display: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove center ventilator. Refer to CENTER VENTILATOR .

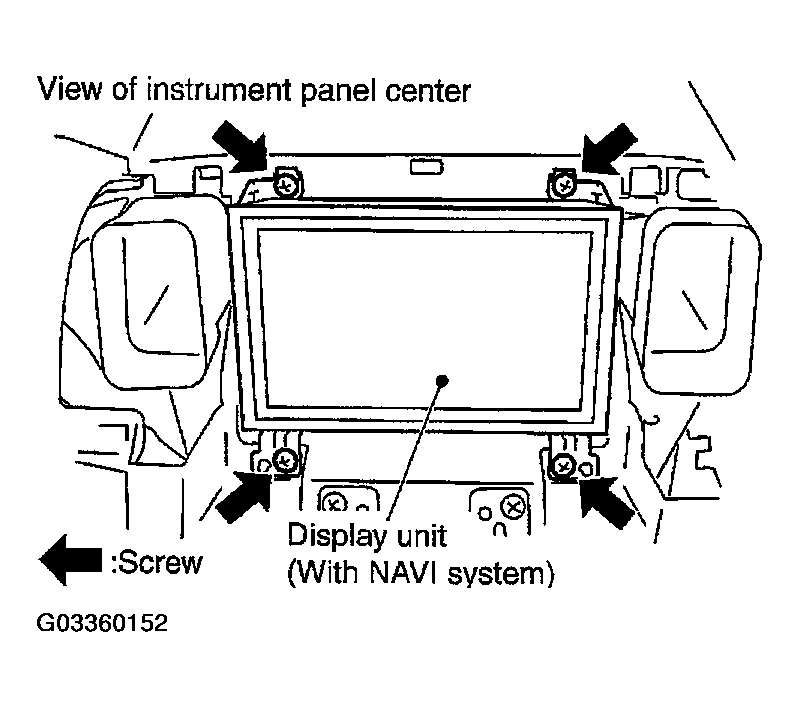

Remove screws (4) and remove display.

Fig 1: Removing Display
Courtesy of NISSAN MOTOR CO., U.S.A.

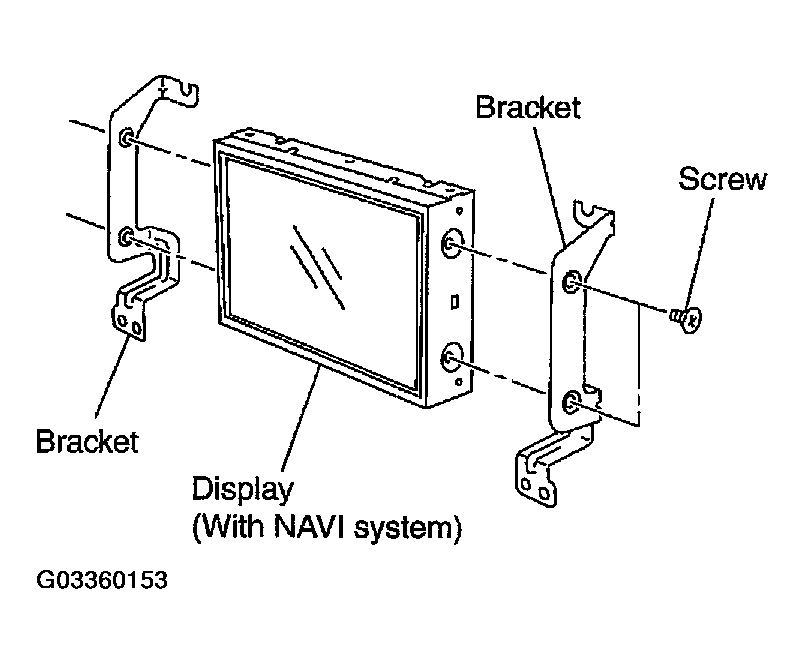

Remove screws (4) and remove bracket.

Fig 2: Removing Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
