Removal and Installation of NAVI control unit: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console. Refer to REMOVAL AND INSTALLATION .
Remove console cover (LH and RH). Refer to REMOVAL AND INSTALLATION .
Remove control device assembly and remove NAVI control unit screws (2) and nut.
Disconnect NAVI control unit connector.

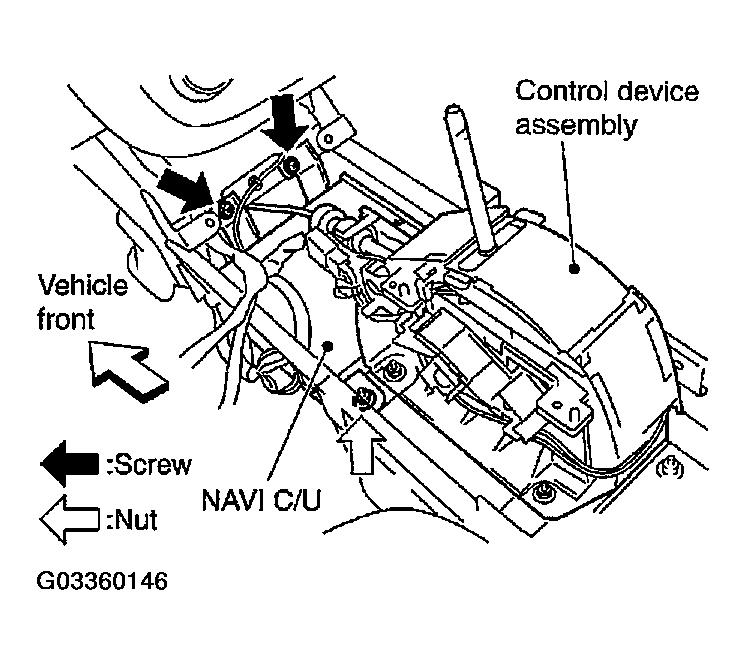

Fig 1: Disconnecting NAVI Control Unit Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull NAVI control unit to a cock, then your side.
CAUTION: Cover unit with cloth avoid contact with console box bracket that may cause scratches or damages.

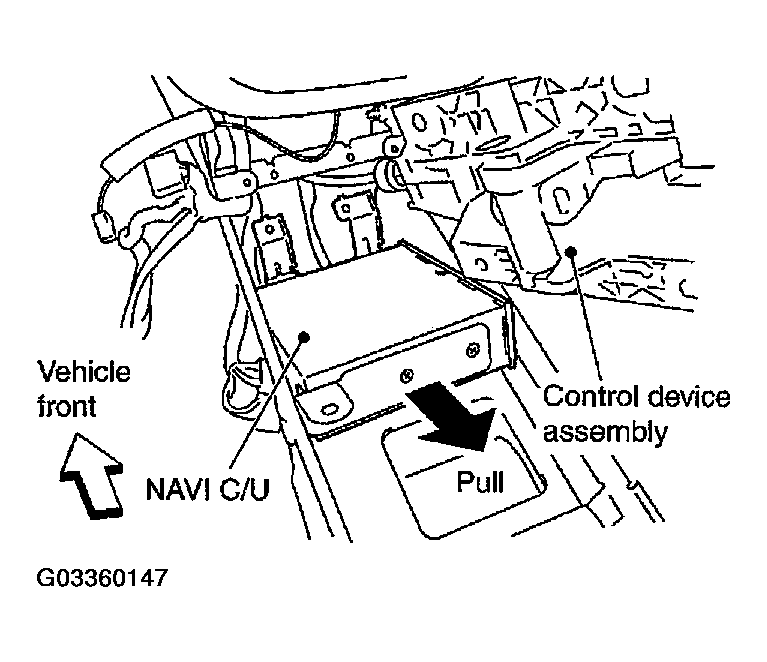

Fig 2: Removing NAVI Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (4) and remove bracket.

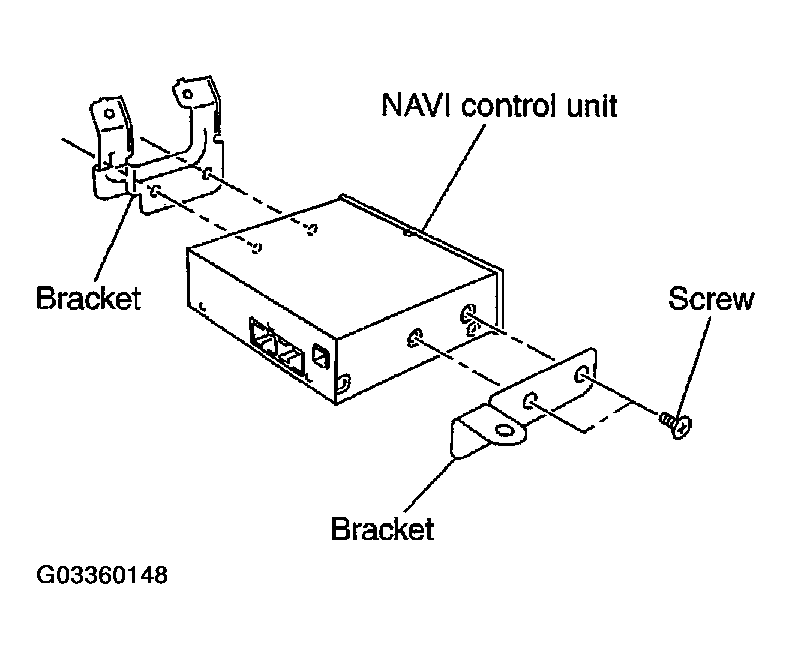

Fig 3: Removing Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
