Wiring Diagram-NAVI-

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

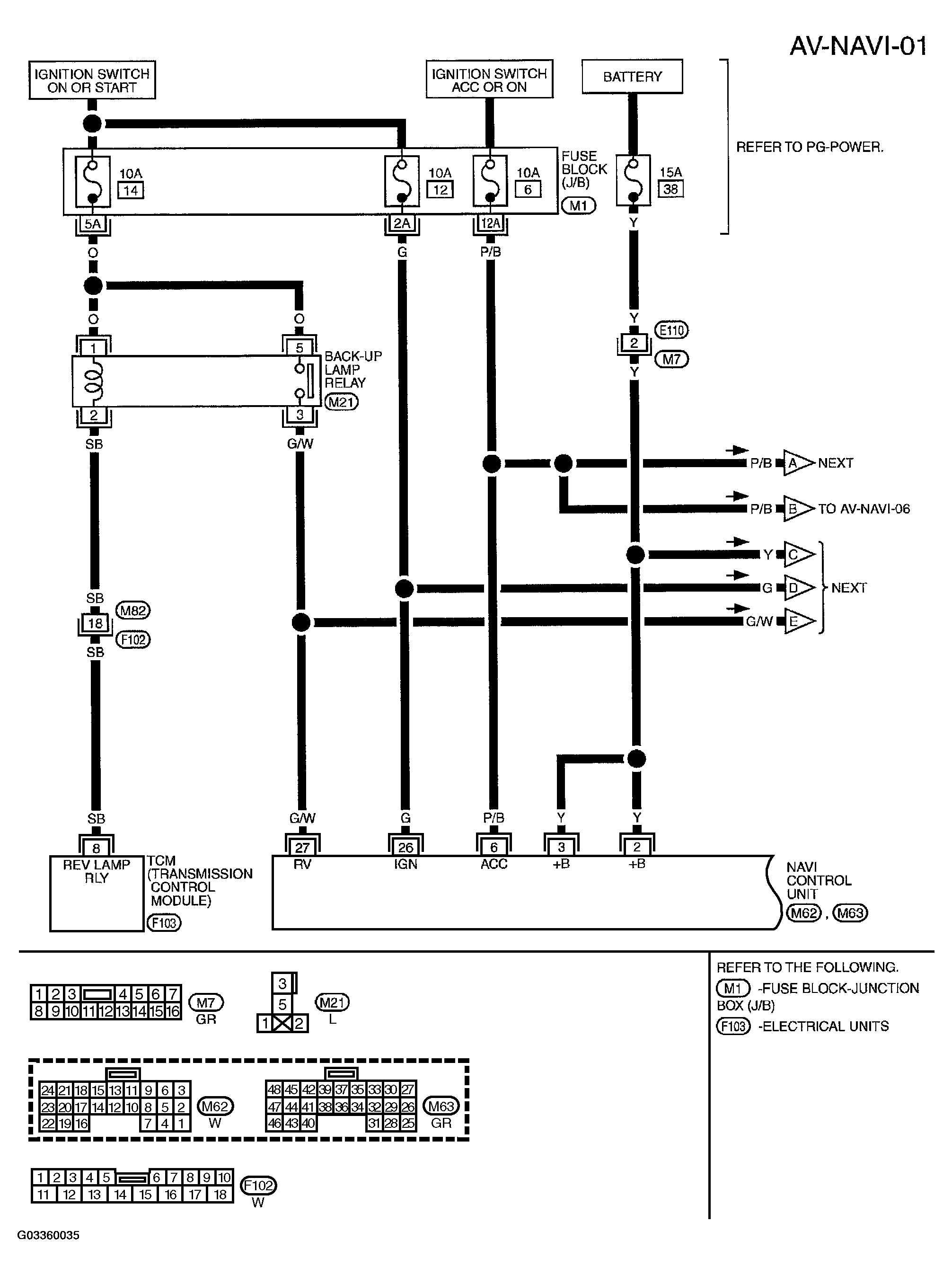

Fig 1: Wiring Diagram - Navigation System (1 Of 7)

G03360035

Courtesy of NISSAN MOTOR CO., U.S.A.

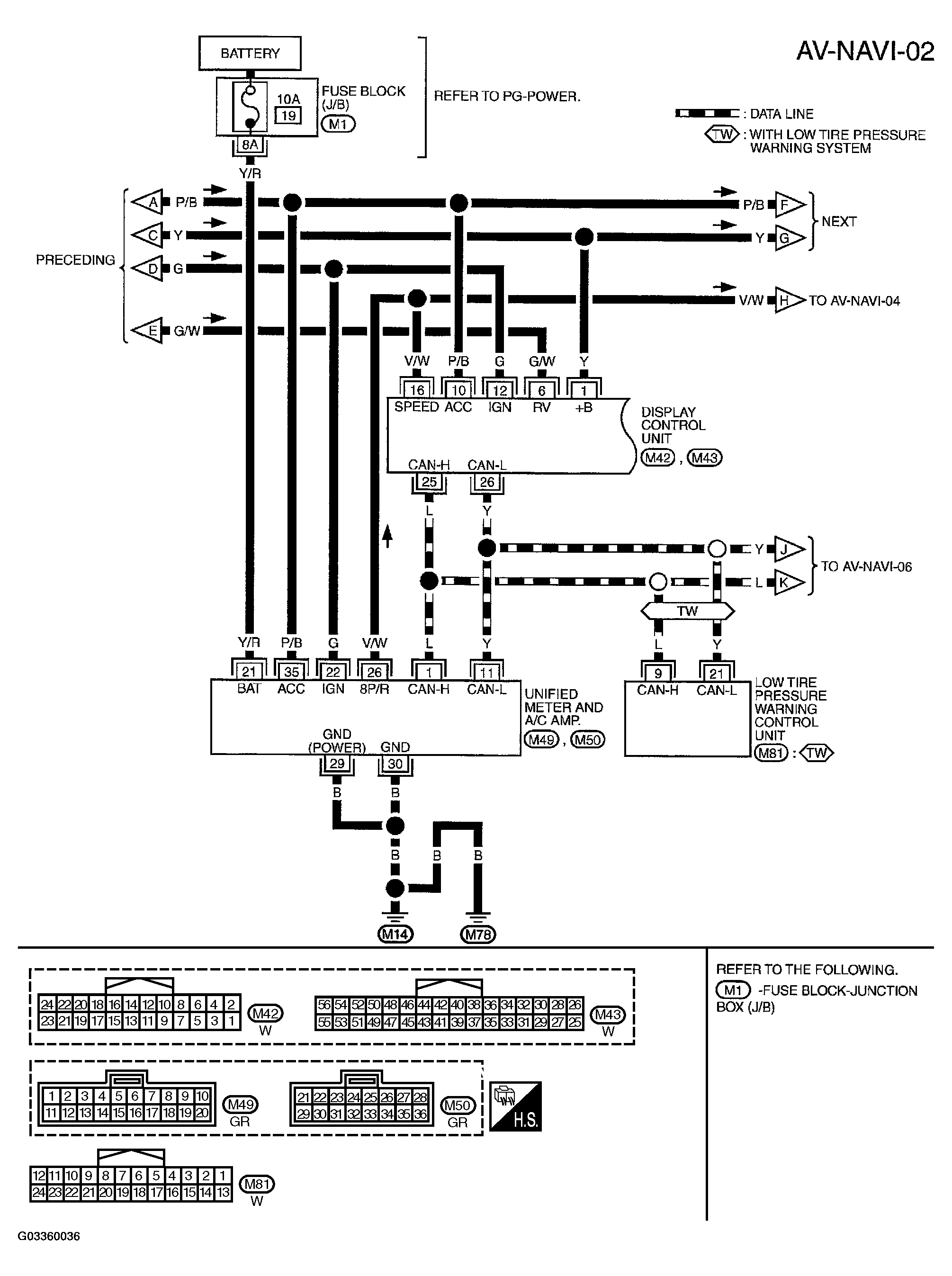

Fig 2: Wiring Diagram - Navigation System (2 Of 7)

G03360036

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Wiring Diagram - Navigation System (3 Of 7)

G03360037

Courtesy of NISSAN MOTOR CO., U.S.A.

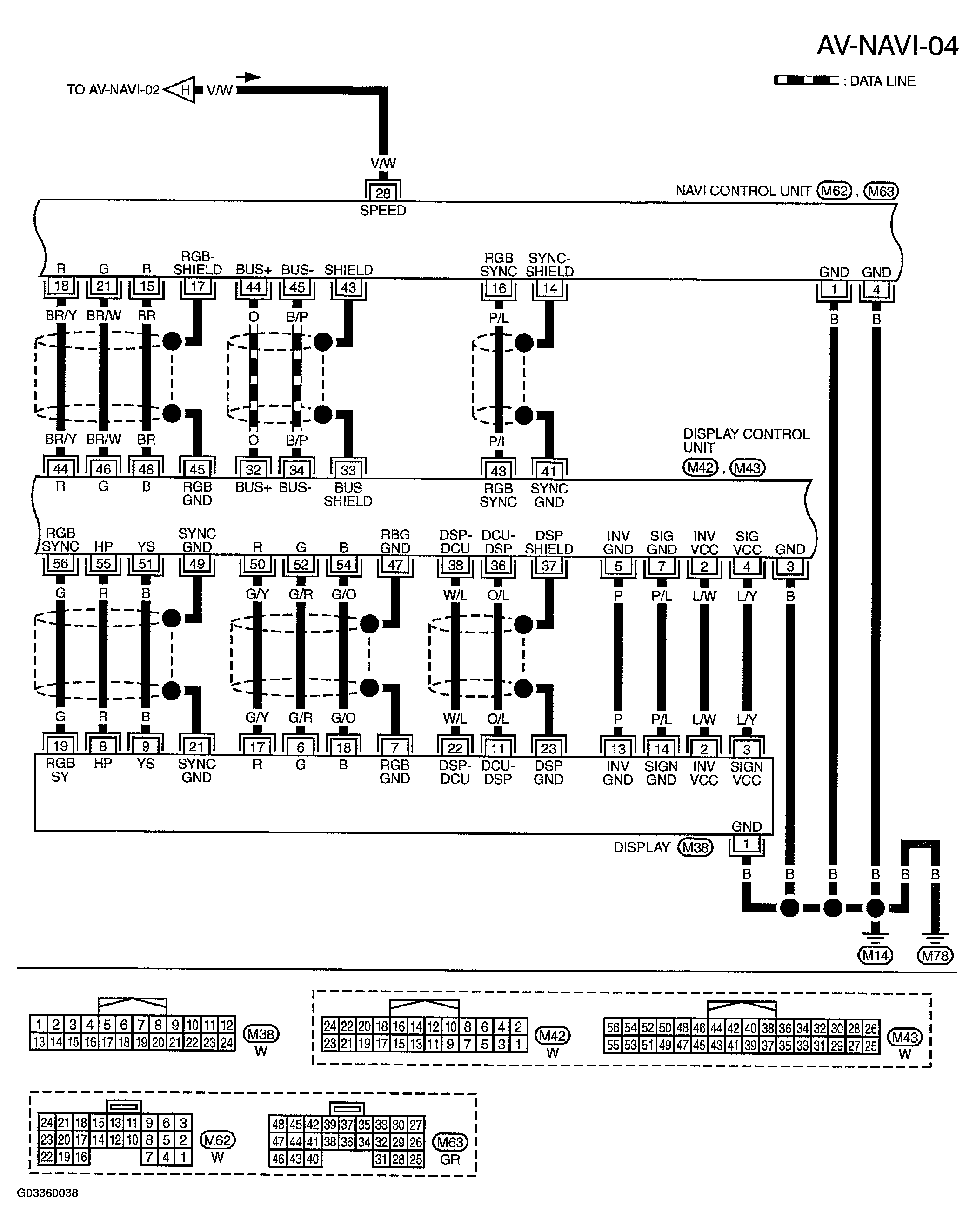

Fig 4: Wiring Diagram - Navigation System (4 Of 7)

G03360038

Courtesy of NISSAN MOTOR CO., U.S.A.

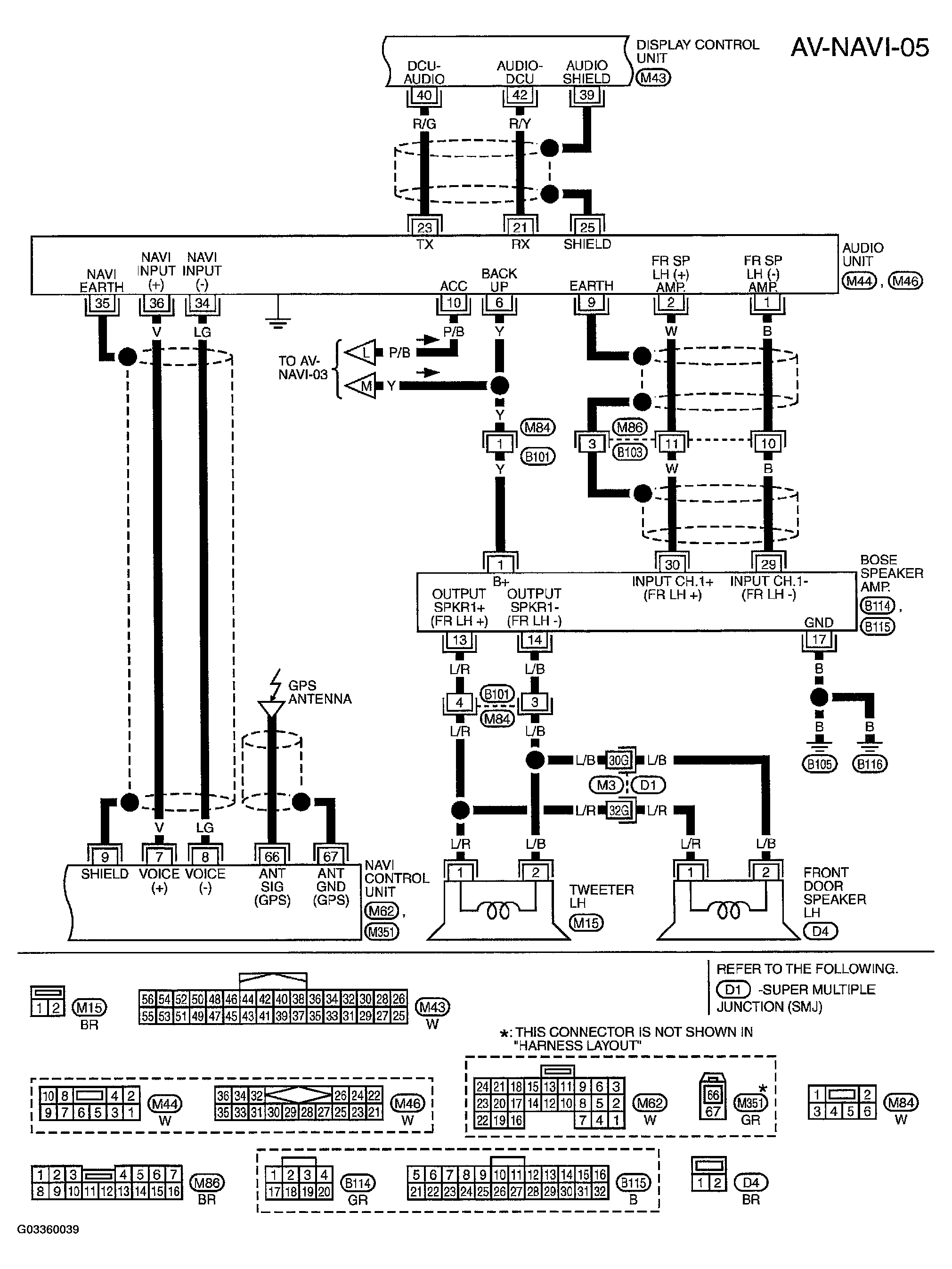

Fig 5: Wiring Diagram - Navigation System (5 Of 7)

G03360039

Courtesy of NISSAN MOTOR CO., U.S.A.

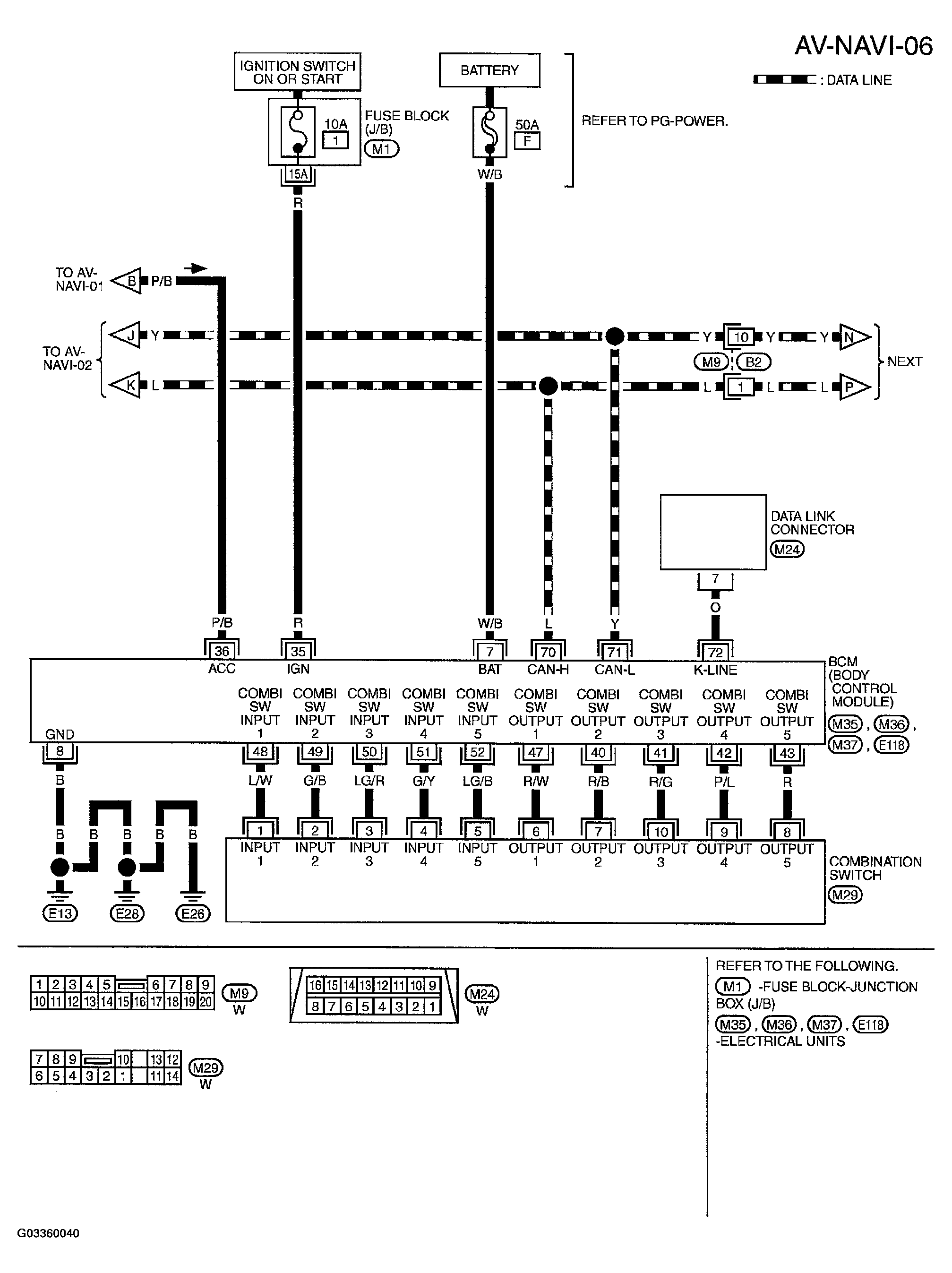

Fig 6: Wiring Diagram - Navigation System (6 Of 7)

G03360040

Courtesy of NISSAN MOTOR CO., U.S.A.

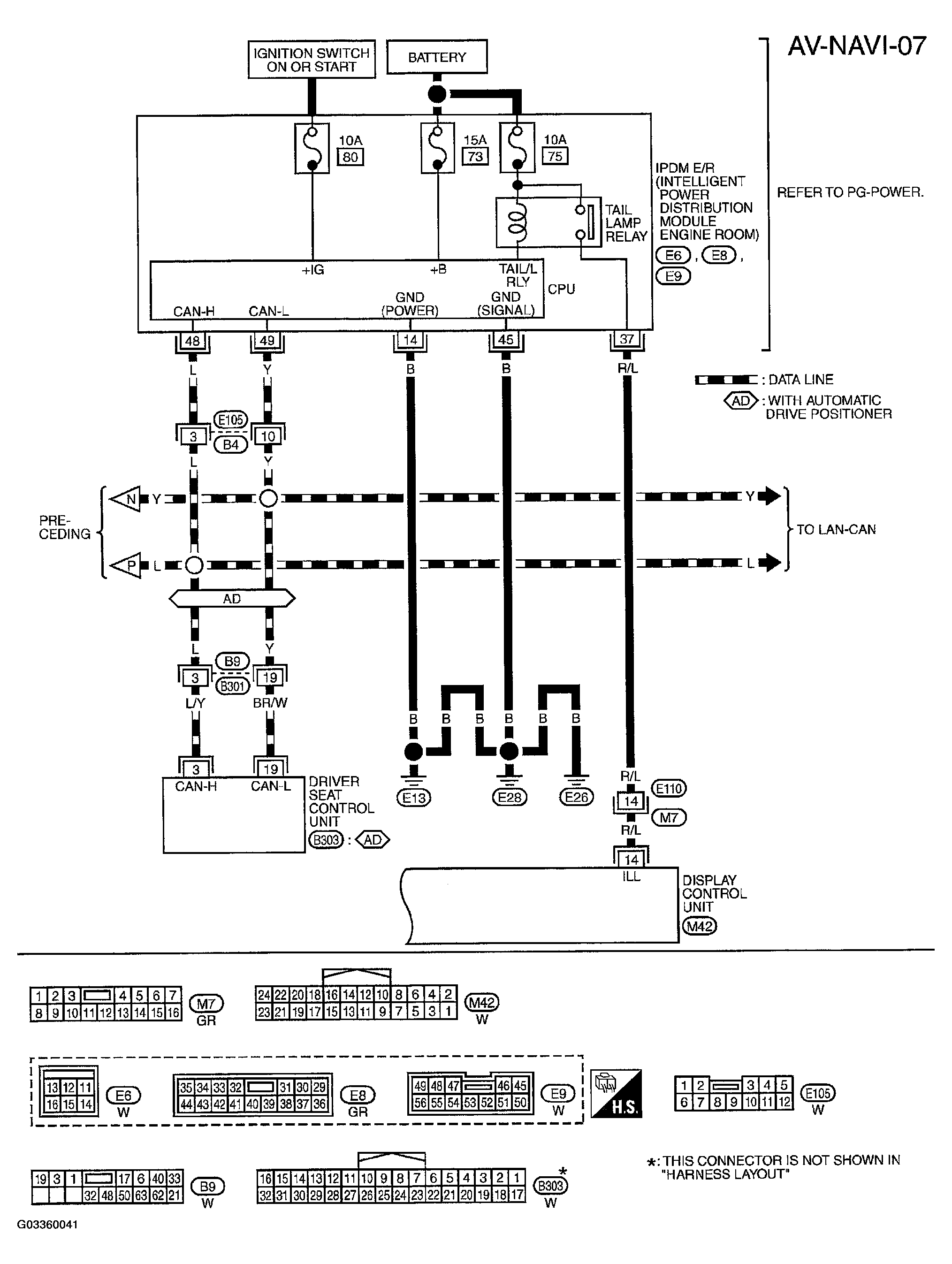

Fig 7: Wiring Diagram - Navigation System (7 Of 7)

G03360041

Courtesy of NISSAN MOTOR CO., U.S.A.
