Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

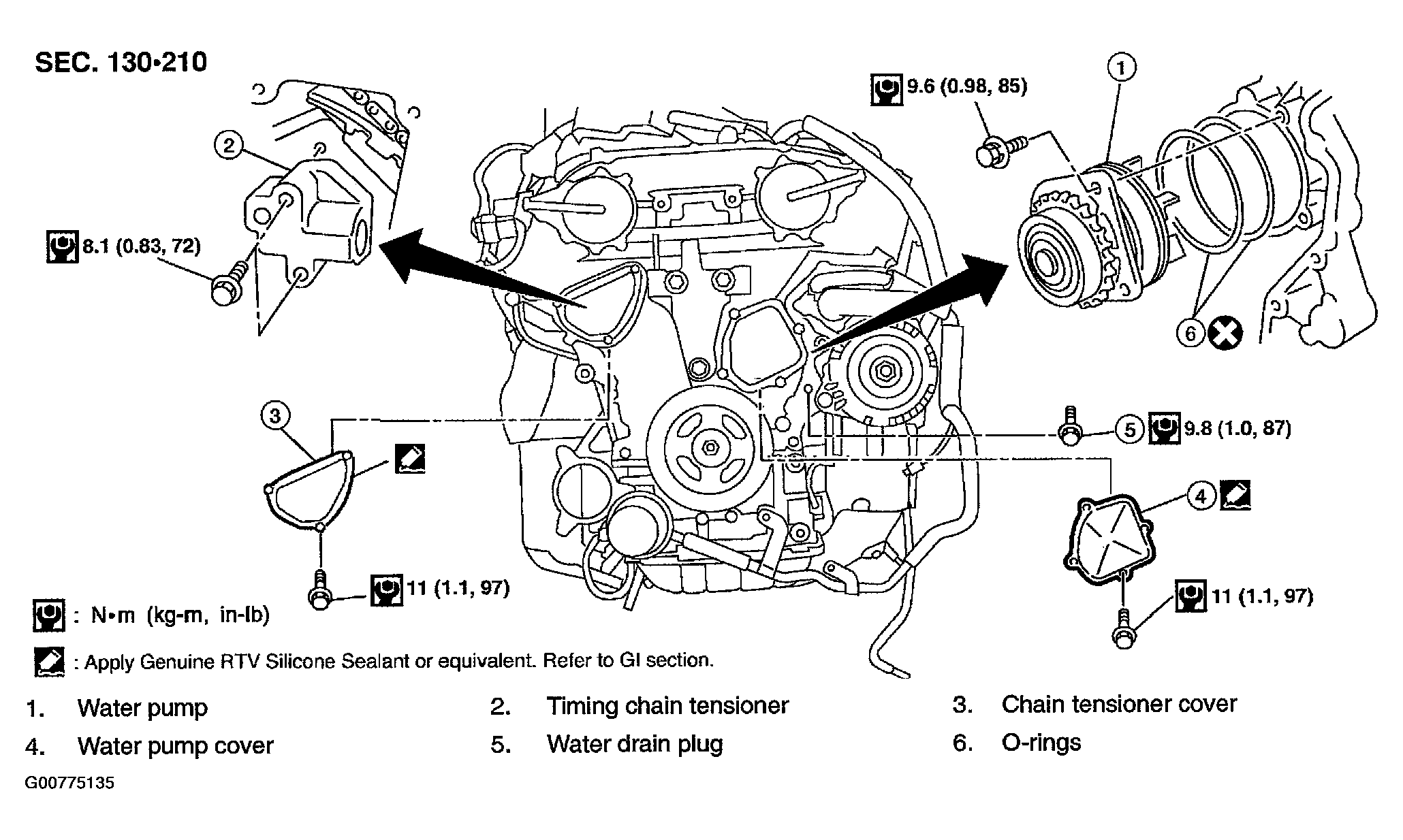

Fig 1: Removing Water Pump
G00775135Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • When removing water pump assembly, be careful not to get coolant on drive belt.
  • Water pump cannot be disassembled and should be replaced as a unit.
  • After installing water pump, connect hose and clamp securely, then check for leaks using radiator cap tester.
