Test Item

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

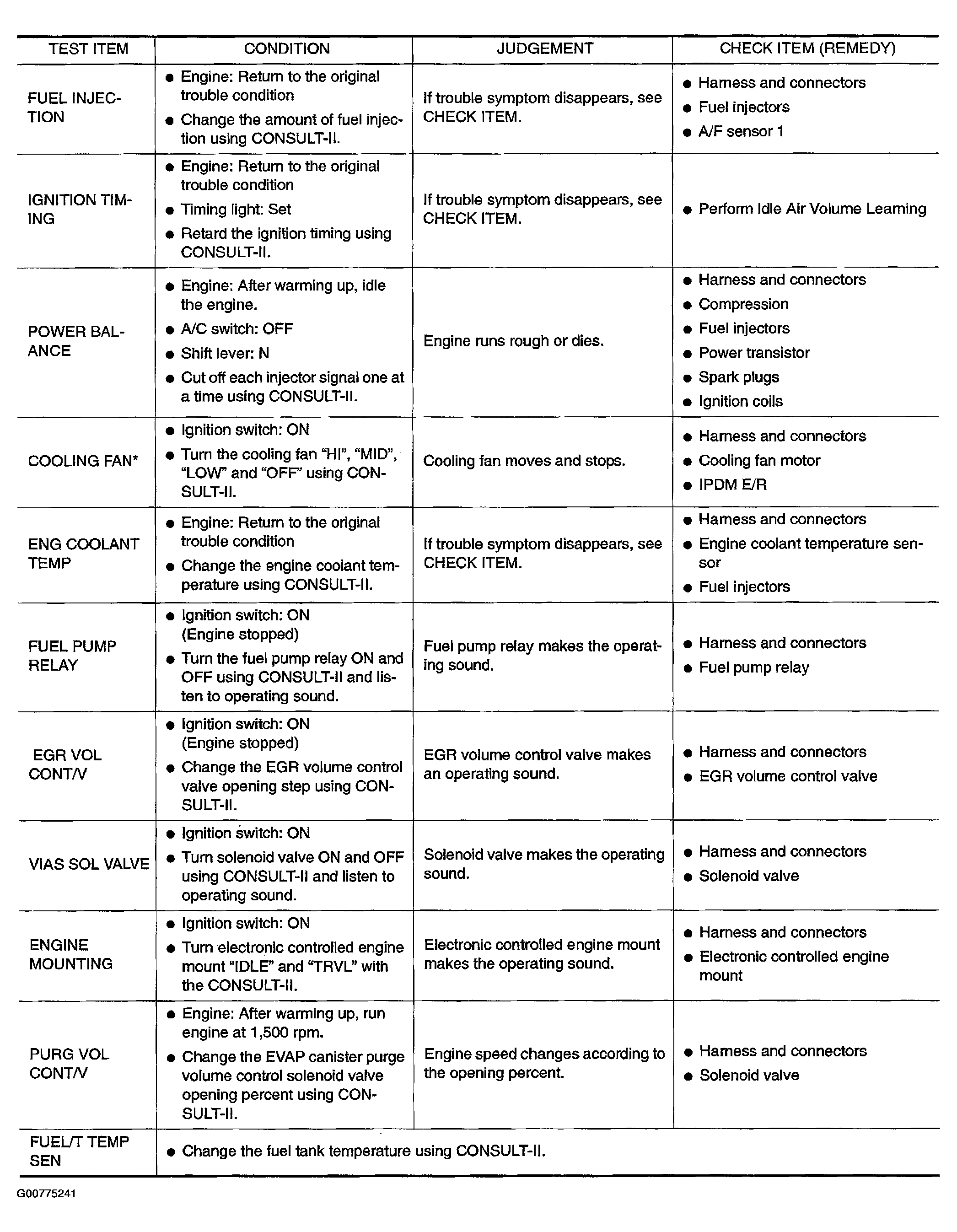

Fig 1: Identifying Test Item (1 Of 2)
G00775241Courtesy of NISSAN MOTOR CO., U.S.A.

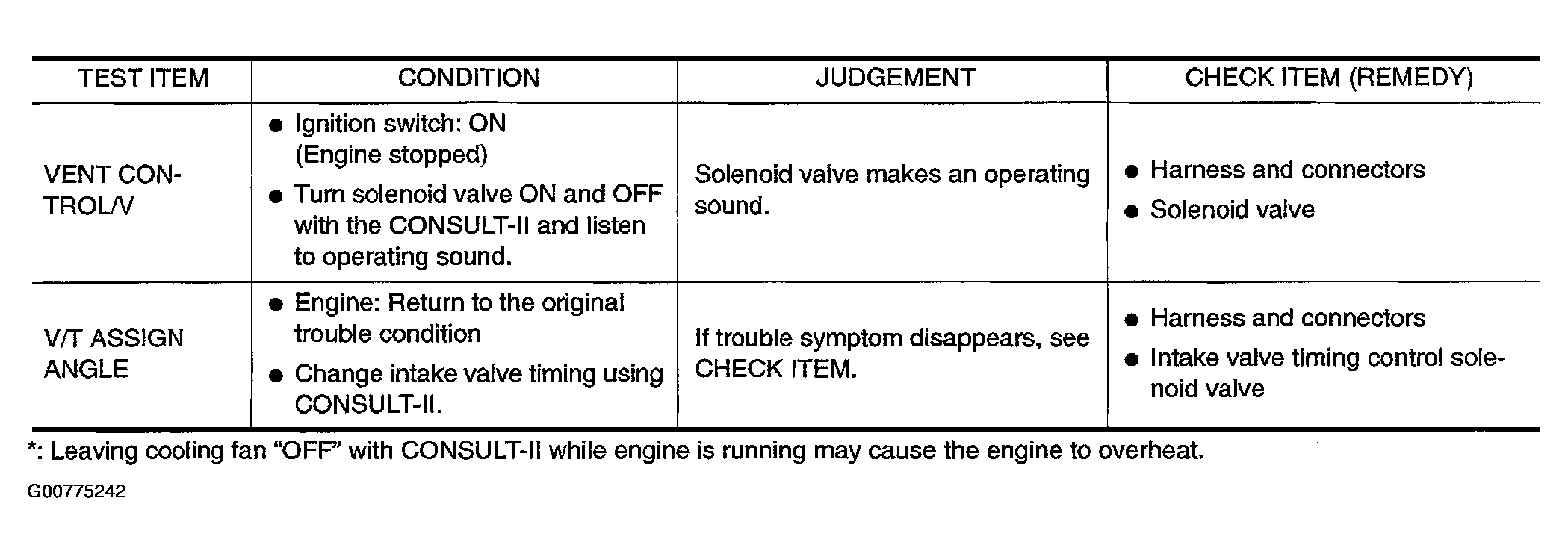

Fig 2: Identifying Test Item (2 Of 2)
G00775242Courtesy of NISSAN MOTOR CO., U.S.A.
