Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the CONSULT-II and CONSULT-II CONVERTER to the data link connector and start the engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)" on the display screen.
  3. Touch "ABS".

    If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

  4. Touch "ACTIVE TEST".
  5. The test item selection screen is displayed.

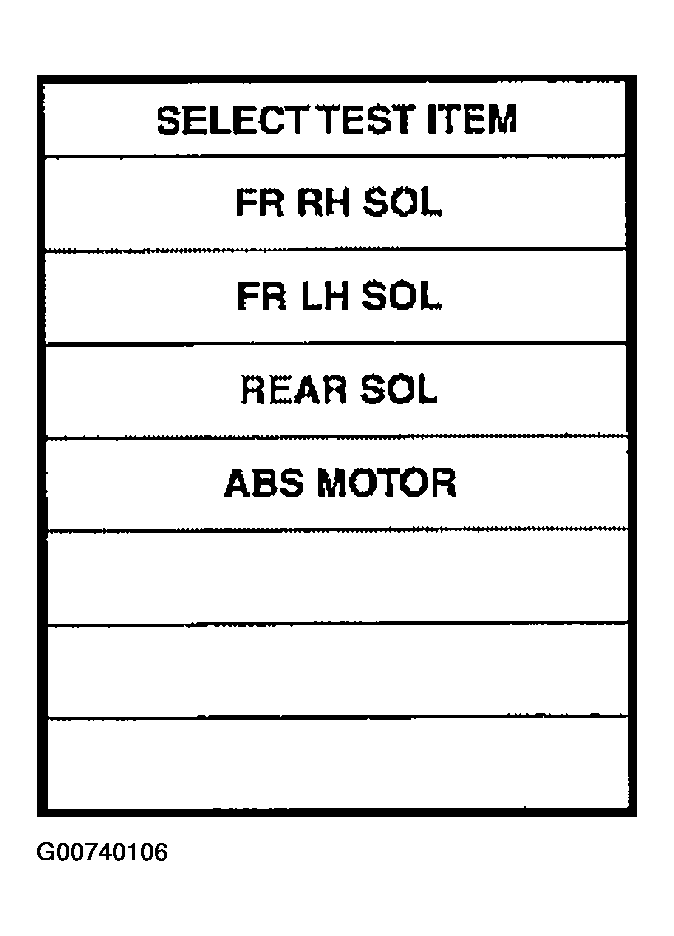

    Fig 1: Displaying SELECT TEST ITEM Screen
    G00740106Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch necessary test item.
  7. With the "MAIN ITEM" display shown in reverse, touch "START".
  8. The Active Test screen will be displayed, so conduct the following test.
