Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console lower cover.

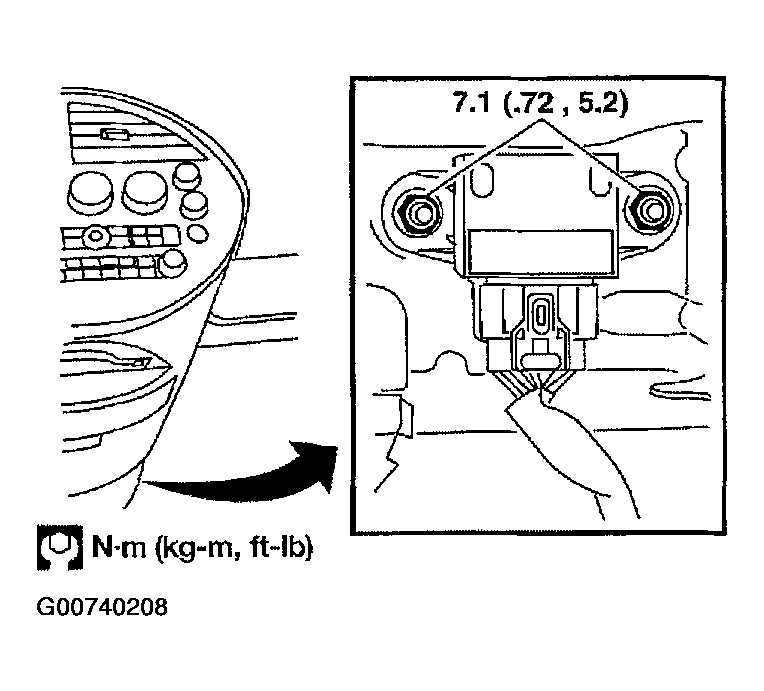

    Fig 1: G Sensor Removing Nuts with Torque Specification
    G00740208Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove yaw rate/side/decel G sensor attaching nuts.
    CAUTION:
    • Do not use power tools to remove or install yaw rate/side/decel G sensor.
    • Do not drop or strike the yaw rate/side/decel G sensor.
  3. Disconnect harness connector and remove the yaw rate/side/decel G sensor.
