Checking Fluid Level

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check fluid level, referring to the scale on reservoir tank.

Use HOT range for fluid temperatures of 50° - 80°C (122° - 176°F).

Use COLD range for fluid temperatures of 0° - 30°C (32° - 86°F).

CAUTION:
  • Do not overfill.
  • Do not reuse any used power steering fluid.
  • Recommended fluid is Genuine NISSAN PSF or equivalent.

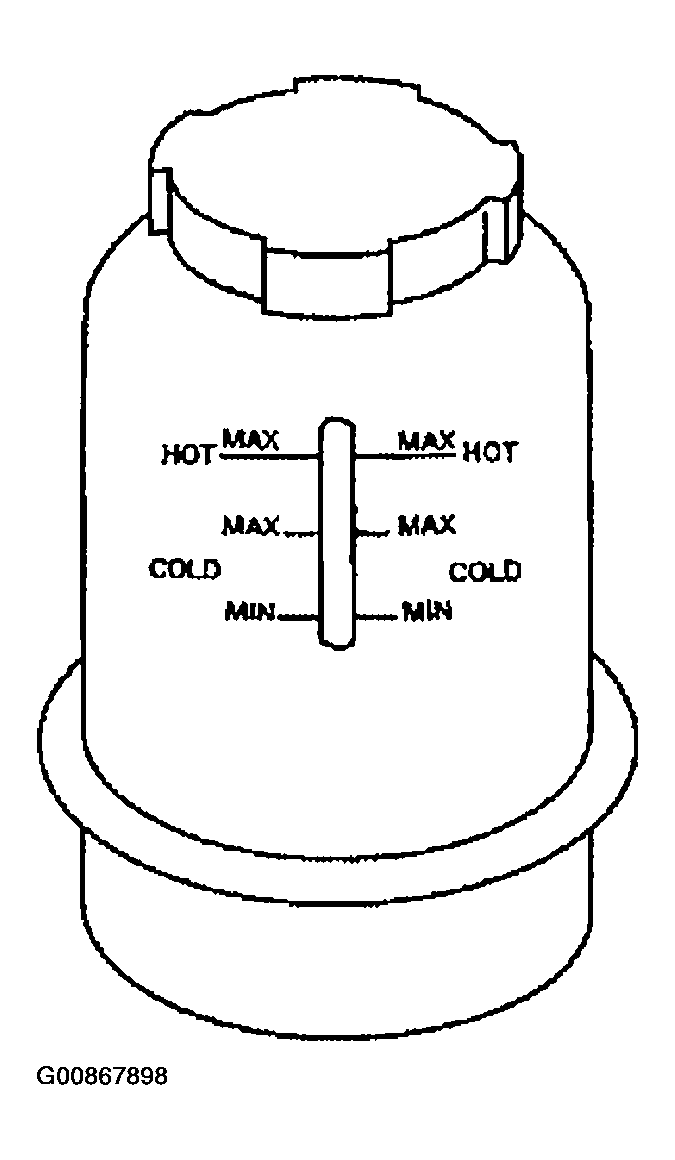

Fig 1: Identifying Power Steering Fluid Levels
G00867898Courtesy of NISSAN MOTOR CO., U.S.A.
