Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spring from steering column assembly and tilt lever.
  2. Remove mounting bolt from upper joint, then remove upper joint from steering column assembly.

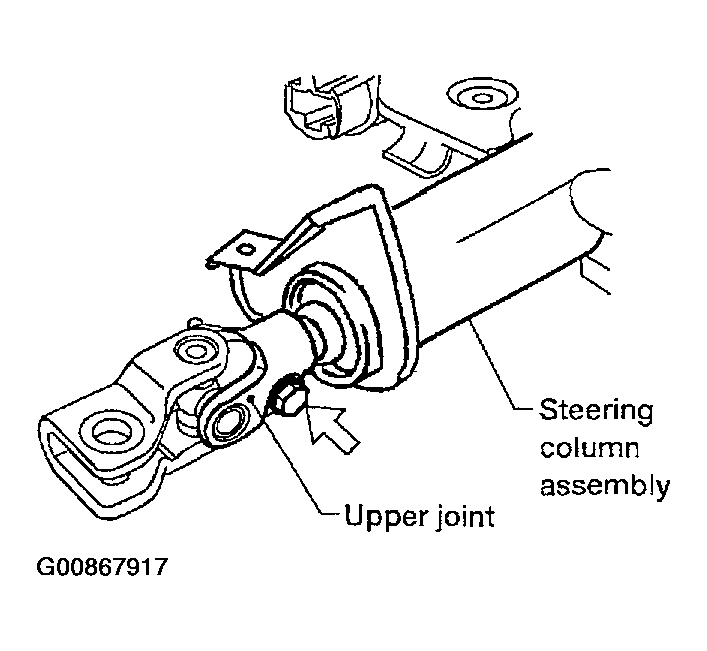

    Fig 1: Removing Mounting Bolt From Upper Joint
    G00867917Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove ignition switch tamper resistant self-shear type screws with a drill or other appropriate tool.
