Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch, With Rear Power Vent Windows

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

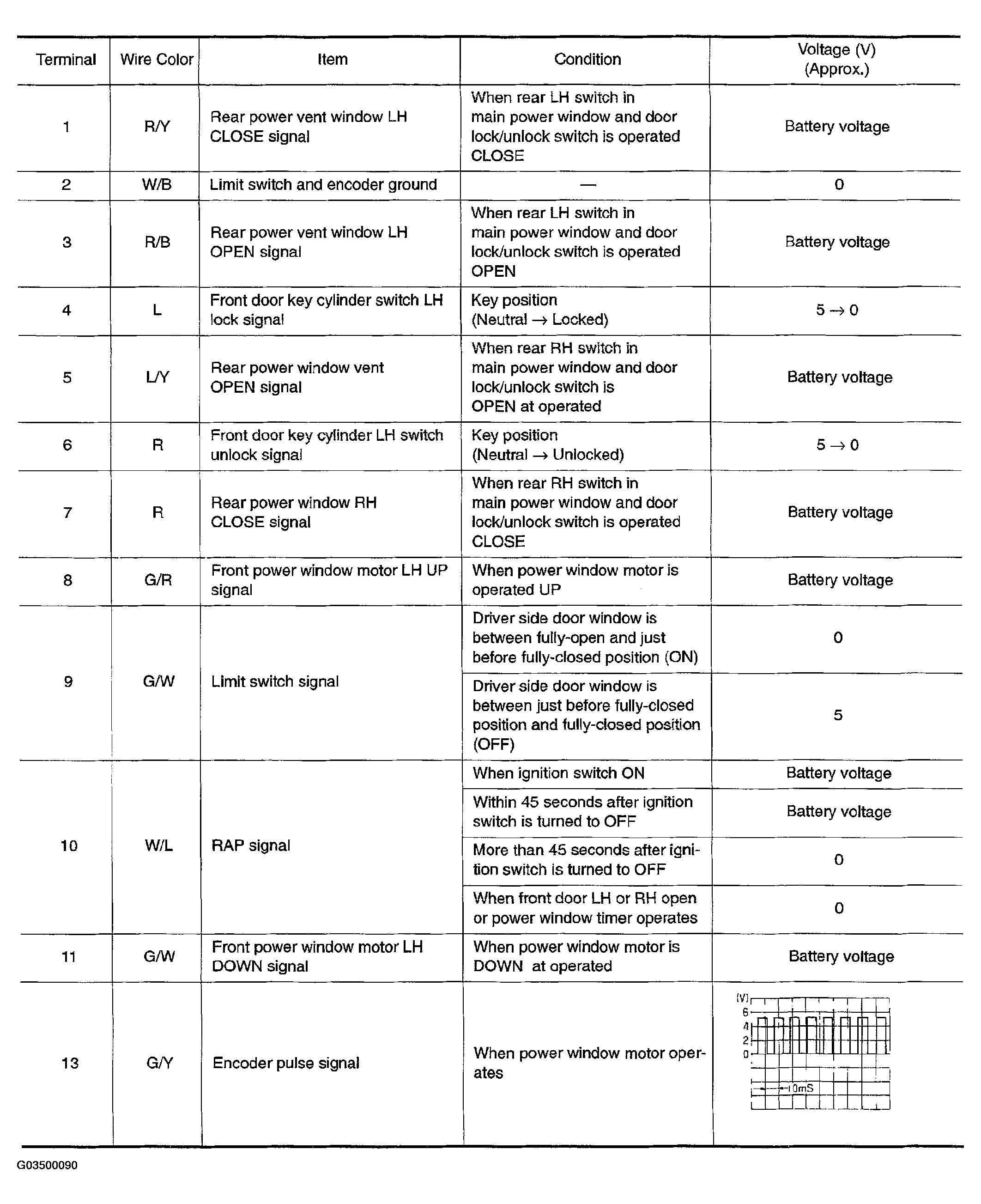

Fig 1: Main Power Window And Door Lock/Unlock Switch Terminals And Reference Value Chart (1 Of 2)
G03500090Courtesy of NISSAN MOTOR CO., U.S.A.

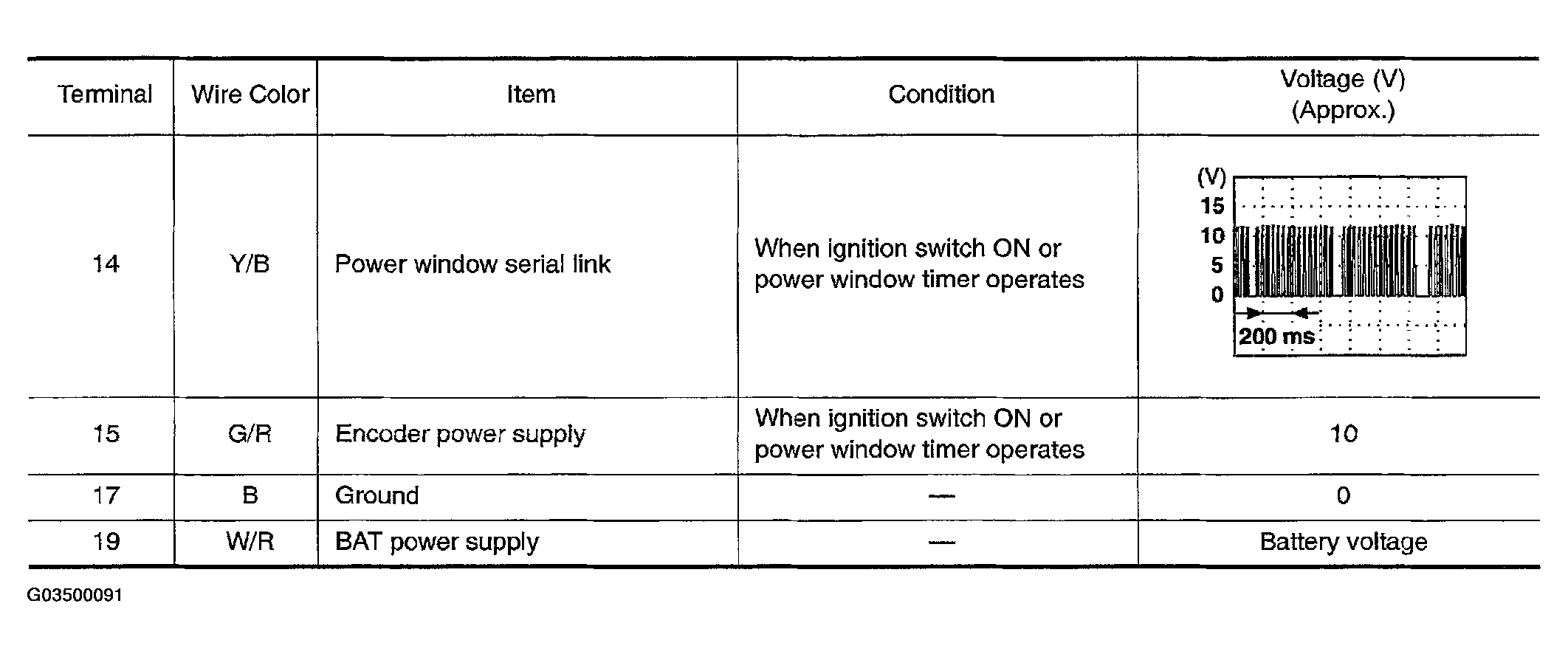

Fig 2: Main Power Window And Door Lock/Unlock Switch Terminals And Reference Value Chart (2 Of 2)
G03500091Courtesy of NISSAN MOTOR CO., U.S.A.
