Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR FUNCTION
Check the following items.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG
1. OK: GO TO 2.
2. NG: Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR INSPECTION

With CONSULT-II

Check that "ON" is displayed on "MIR/SE RH R-L, MIR/SE RH U-D" in the DATA MONITOR.

CHECK MIRROR SENSOR INSPECTION

Monitor item [OPERATION or UNIT]		Contents
MIR/SEN RH R-L	"V"	Voltage output from door mirror RH sensor (LH/RH) is displayed.
MIR/SEN RH U-D	"V"	Voltage output from door mirror RH sensor (UP/DOWN) is displayed.

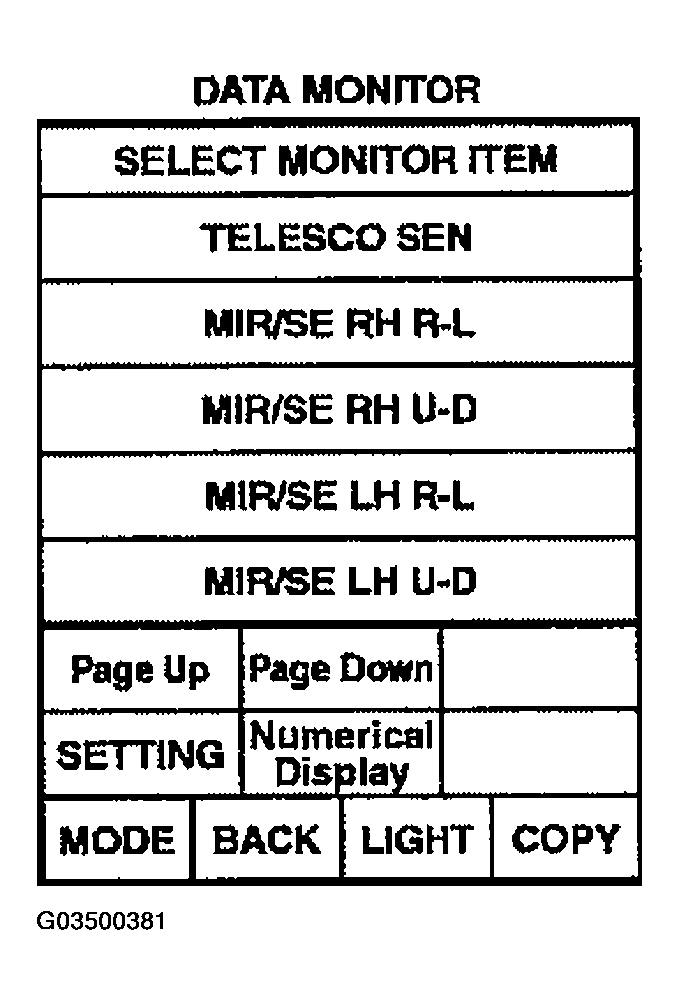

Fig 1: Display DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch ACC.

Check voltage between door mirror RH connector and ground.

TERMINAL VOLTAGE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
	(+)	(-)
D107	7 (L/W)	Ground	When motor is LEFT or RIGHT operation	Changes between 3.4 (close to left edge) - 0.6 (close to right edge)
	6 (R/B)		When motor is UP or DOWN operation	Changes between 3.4 (close to peak) - 0.6 (close to valley)

OK or NG

OK: Mirror sensor RH is OK.
NG: GO TO 3.

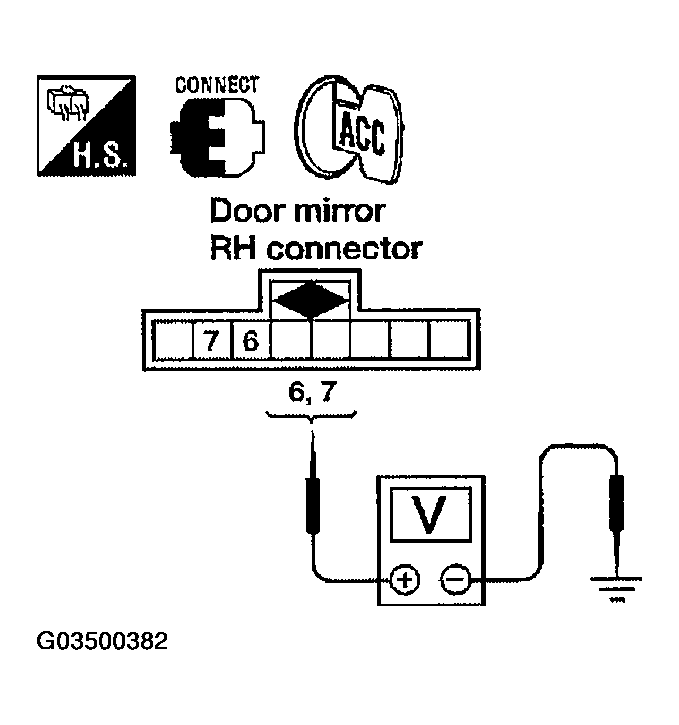

Fig 2: Checking Voltage Between Door Mirror RH Connector & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror RH.
2. Check continuity between automatic drive positioner control unit connector M42 terminal 33 (W/L), 41 (V) and door mirror RH connector D107 terminal 5 (W/L), 8 (V).
  1. 33 (W/L) - 5 (W/L): Continuity should exist
  2. 41 (V) - 8 (V): Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M42 terminal 33 (W/L), 41 (V) and ground.
  1. 33 (W/L) - Ground: Continuity should not exist.
  2. 41 (V) - Ground: Continuity should not exist.
  OK or NG
  1. OK: GO TO 4.
  2. NG: Repair or replace harness.

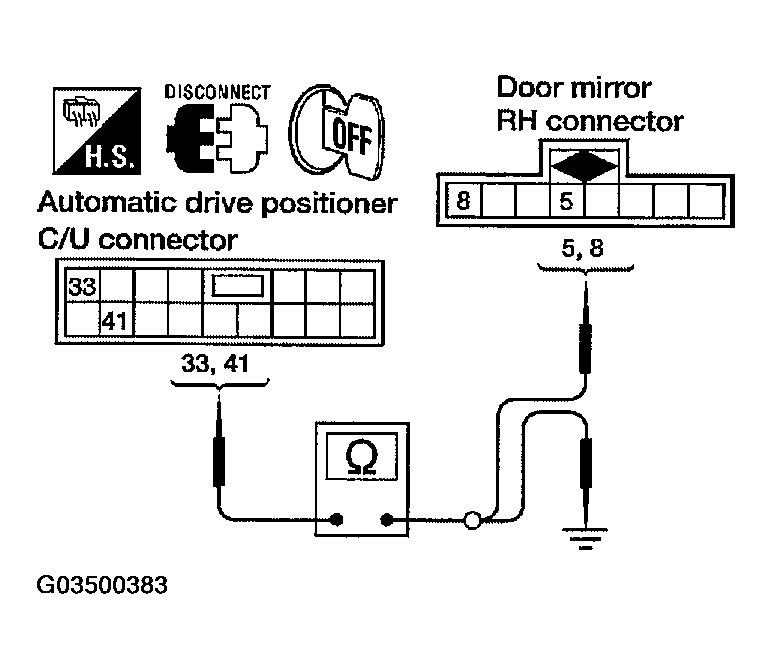

  Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit and door mirror RH.
2. Check continuity between automatic drive positioner control unit connector M41 terminal 5 (R/B), 21 (LAN) and door mirror RH connector D107 terminal 6 (R/B), 7 (L/W).
  1. 5 (R/B) - 6 (R/B): Continuity should exist.
  2. 21 (L/W) - 7 (L/W): Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M41 terminal 5 (R/B), 21 (L/W) and ground.
  1. 5 (R/B) - Ground: Continuity should not exist.
  2. 21 (L/W) - Ground: Continuity should not exist.
  OK or NG
  1. OK: Replace door mirror RH.
  2. NG: Repair or replace harness.

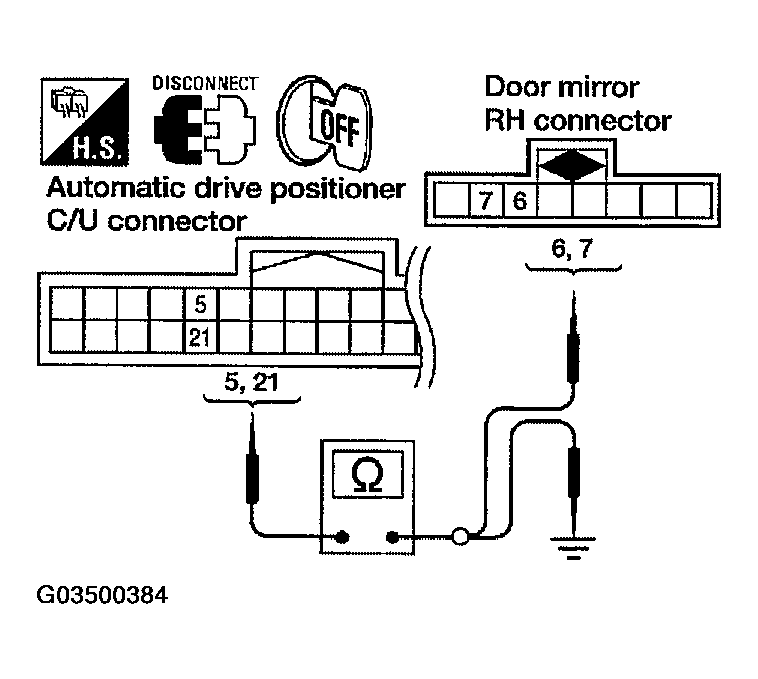

  Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector & Ground
