Seat Memory Switch Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "SET SW, MEMORY SW1, MEMORY SW2" on the DATA MONITOR, operate the switch to check ON/OFF operation.

    CHECK FUNCTION

    Monitor item [OPERATION or UNIT] Contents
    MEMORY SW1 "ON/OFF" ON/OFF status judged from the seat memory switch 1 signal is displayed.
    MEMORY SW2 "ON/OFF" ON/OFF status judged from the seat memory switch 2 signal is displayed.
    SET SW "ON/OFF" ON/OFF status judged from the setting switch signal is displayed.

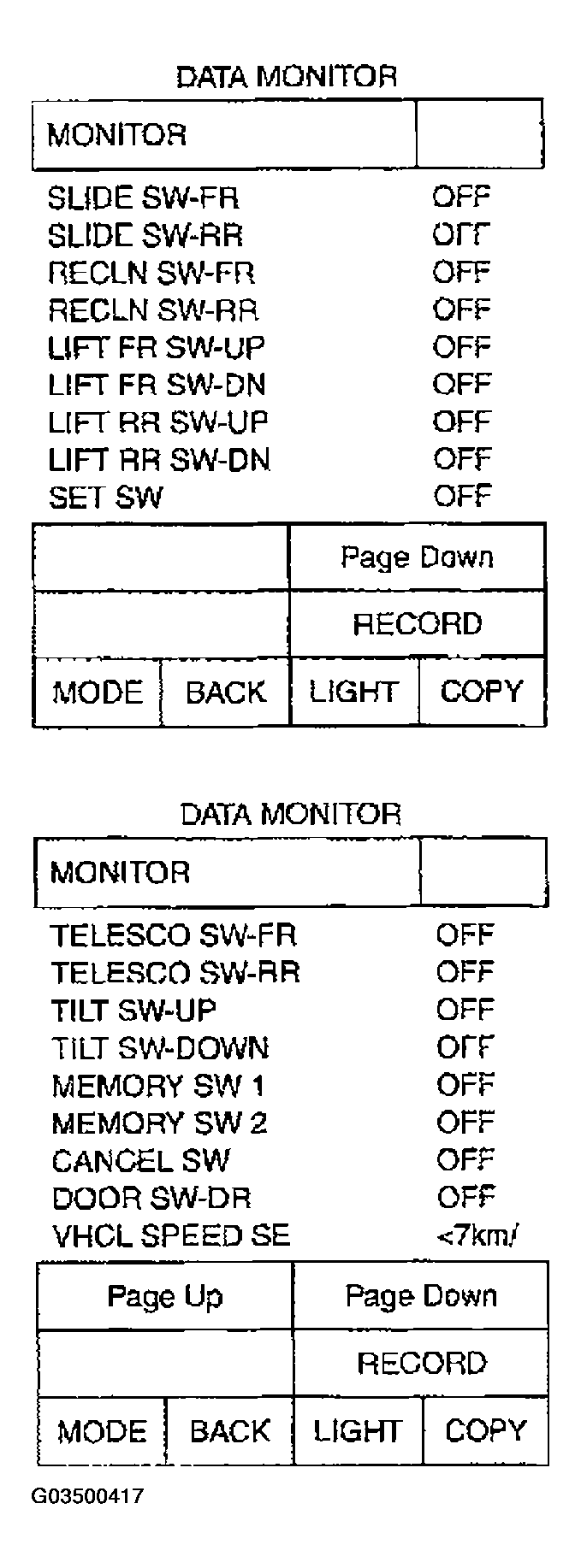

    Fig 1: Display DATA MONITOR
    G03500417Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    1. OK: Seat memory switch circuit is OK.
    2. NG: GO TO 2.
  2. CHECK SEAT MEMORY SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch.
    3. Operate the setting switch and seat memory switch.
    4. Check continuity between seat memory switch as follows.
    CHECK SEAT MEMORY SWITCH

    Connector Terminal Condition Continuity
    (+) (-)
    D5 1 4 Memory switch 1 ON Continuity should exist.
    Memory switch 1: OFF Continuity should not exist.
    2 Memory switch 2: ON Continuity should exist.
    Memory switch 2: OFF Continuity should not exist.
    3 Set switch: ON Continuity should exist.
    Set switch: OFF Continuity should not exist.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Replace seat memory switch.

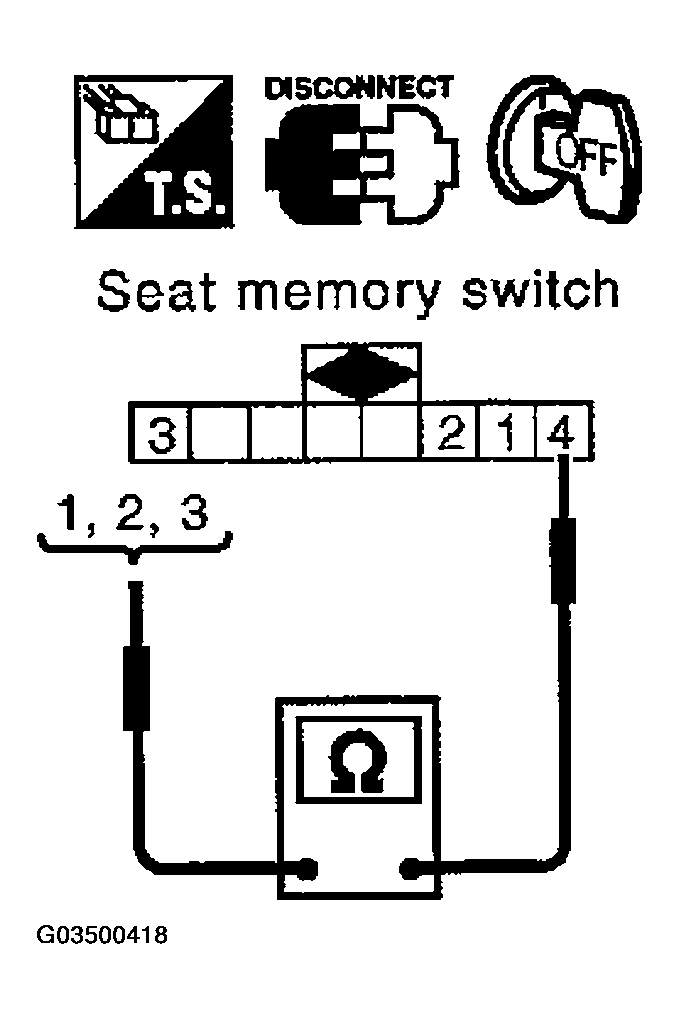

    Fig 2: Checking Continuity Between Seat Memory Switch Terminal
    G03500418Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect automatic drive positioner control unit.
    2. Check continuity between automatic drive positioner control unit connector M41 terminals 9 (LG/B), 24 (G/W), 25 (P/L) and seat memory switch connector D5 terminals 1 (LG/B), 2 (P/L), 3 (G/W).
      1. 9 (LG/B) - 1 (LG/B): Continuity should exist.
      2. 24 (G/W) - 3 (G/W): Continuity should exist.
      3. 25 (P/L) - 2 (P/L): Continuity should exist.
    3. Check continuity between automatic drive positioner control unit connector M41 terminals 9 (LG/B), 24 (G/W), 25 (P/L) and ground.
      1. 9 (LG/B) - Ground: Continuity should not exist.
      2. 24 (G/W) - Ground: Continuity should not exist.
      3. 25 (P/L) - Ground: Continuity should not exist.

      OK or NG

      1. OK: GO TO 4.
      2. NG: Repair or replace harness.

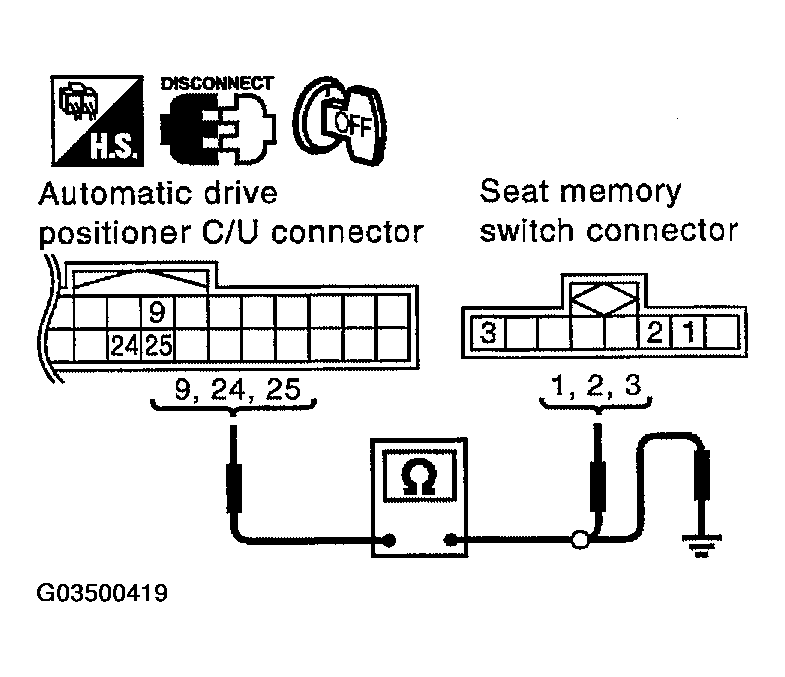

      Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector & Seat Memory Switch Connector
      G03500419Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK SEAT MEMORY SWITCH GROUND CIRCUIT

    Check continuity between seat memory switch D5 terminal 4 (B) and ground.

    1. 4 (B) - Ground: Continuity should exist.

    OK or NG

    1. OK: Replace automatic drive positioner control unit.
    2. NG: Repair or replace harness.

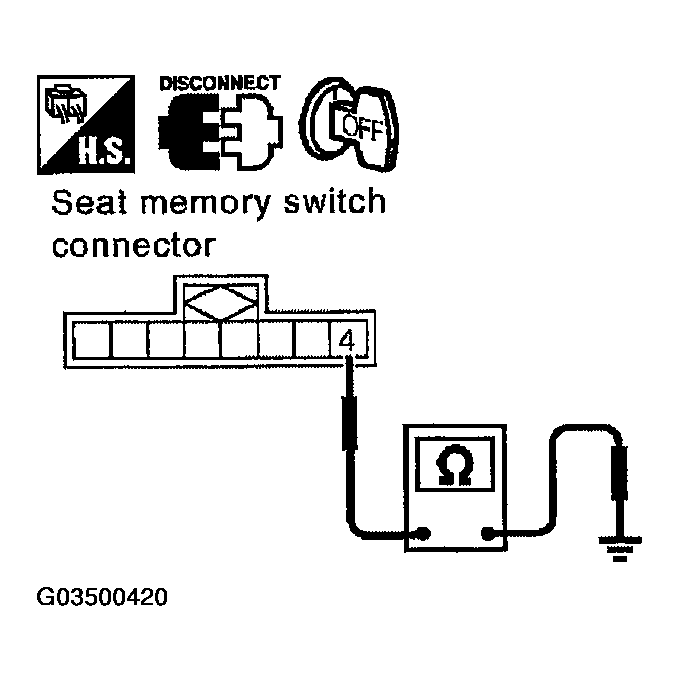

    Fig 4: Checking Continuity Between Seat Memory Switch & Ground
    G03500420Courtesy of NISSAN MOTOR CO., U.S.A.
