Sliding Sensor Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Check operation with "SLIDE PULSE" on the DATA MONITOR to make sure the pulse changes.

CHECK FUNCTION

Monitor item [OPERATION or UNIT]		Contents
SLIDE PULSE	-	The seat sliding position (pulse) judged from the sliding sensor signal is displayed

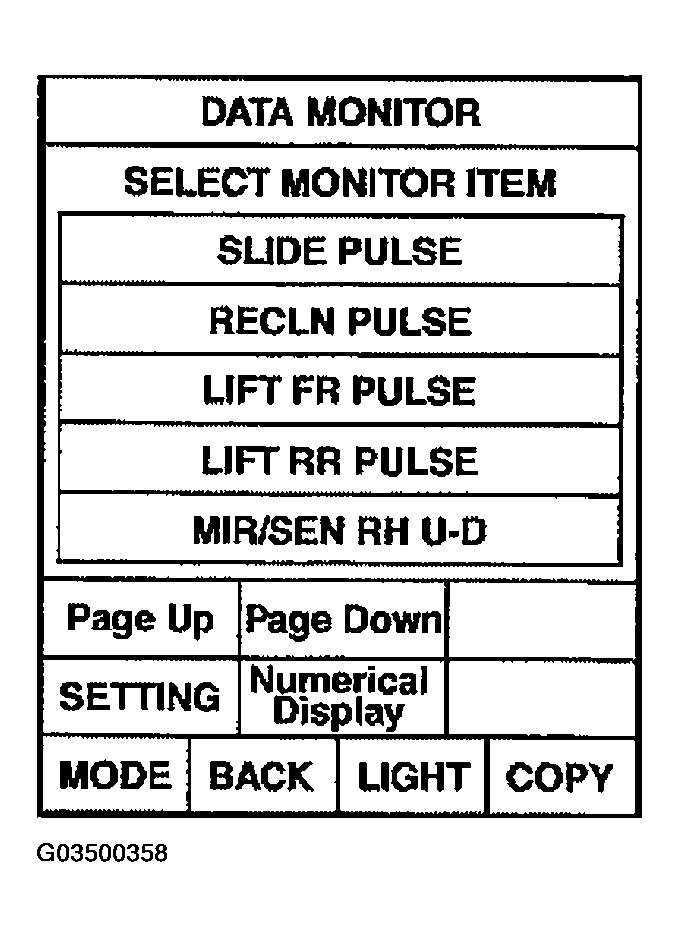

Fig 1: Display DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.
Check signal between driver seat control unit connector and ground, with oscilloscope.

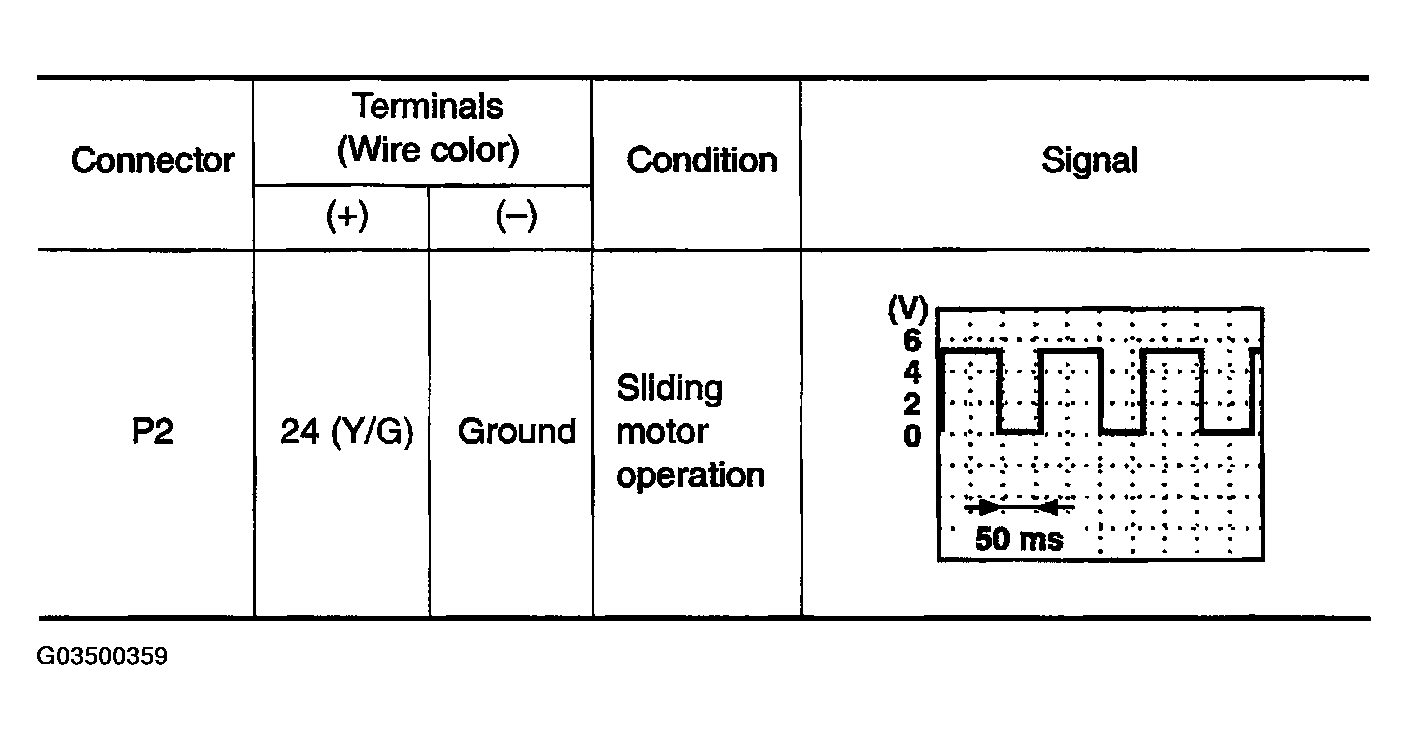

Fig 2: Terminal Signal Table

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Sliding sensor circuit is OK.
NG: GO TO 2.

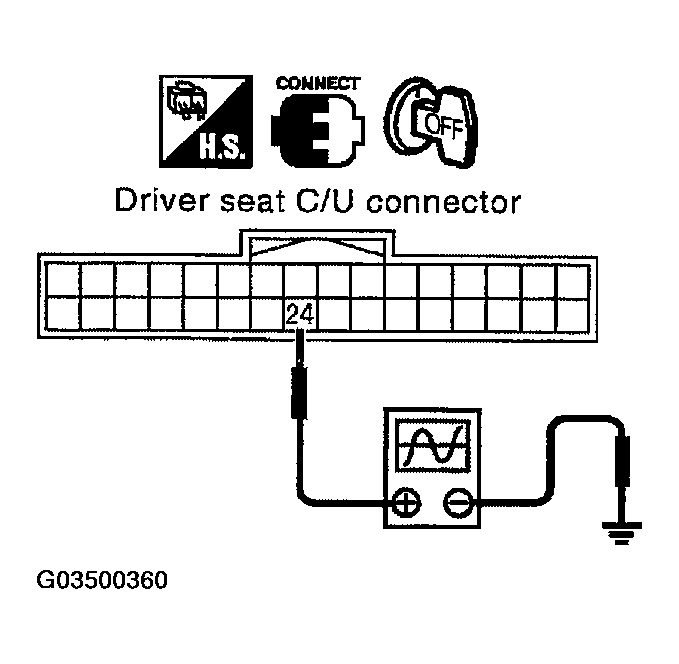

Fig 3: Checking Signal Between Driver Seat Control Unit Connector & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK SLIDING SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and sliding motor LH connector.
2. Check continuity between driver seat control unit connector P2 terminals 16 (L), 24 (Y/G), 31 (Y) and sliding motor P4 terminals 1 (Y), 2 (Y/G), 3(L).
  1. 16(L)-3(L): Continuity should exist.
  2. 24 (Y/G) - 2 (Y/G): Continuity should exist.
  3. 31 (Y) -1 (Y): Continuity should exist.
3. Check continuity between driver seat control unit P2 terminals 24 (G/B), 31 (R/W) and ground.
  1. 24 (Y/G) - Ground: Continuity should not exist.

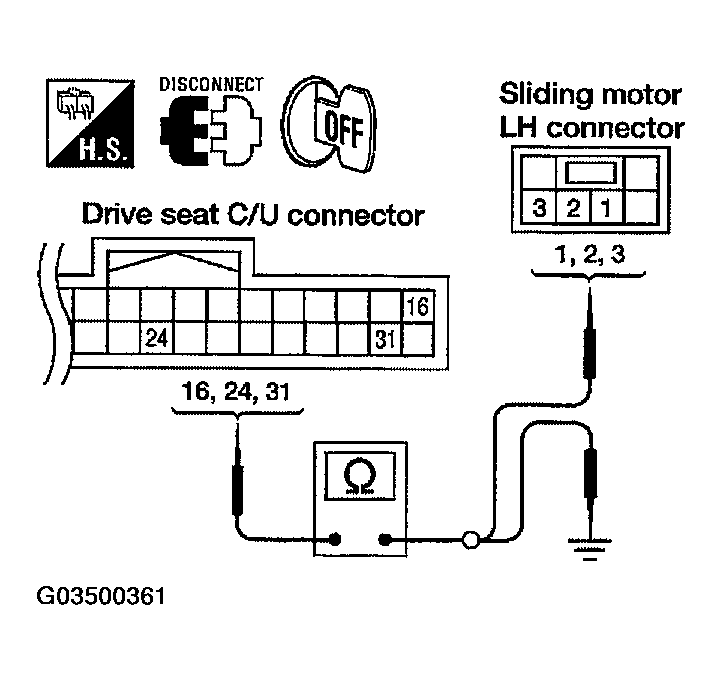

  Fig 4: Checking Continuity Between Driver Seat Control Unit & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
  1. OK: Replace sliding motor.
  2. NG: Repair or replace harness.
