Memory Storing And Key Fob Interlock Storing

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Store the 2 driving positions and shifts to the stored driving position with the memory switch.
Key fob interlock function is set simultaneously with setting driving position memory. It can set driving position to memory position.

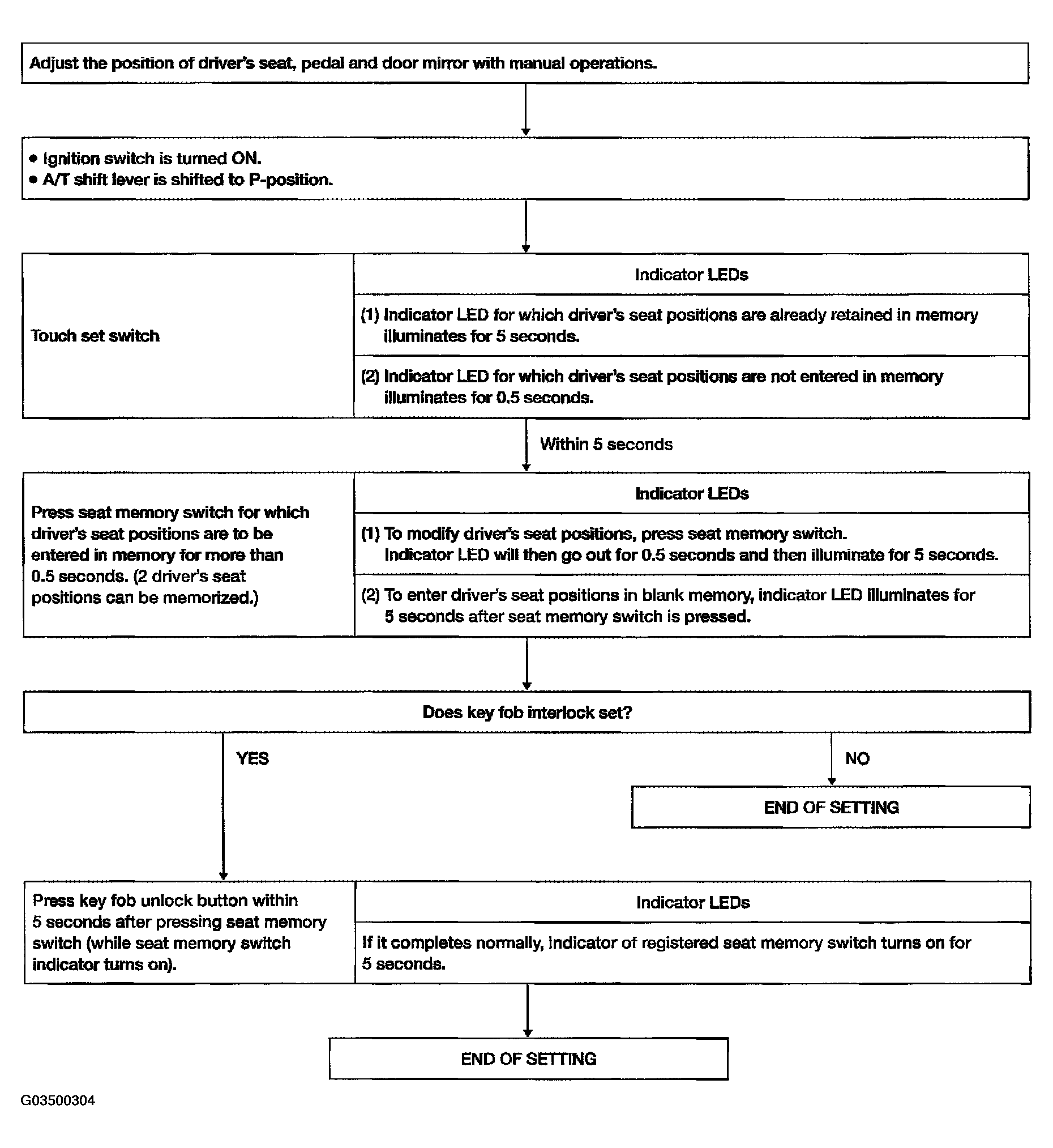

Fig 1: Memory Storing & Key Fob Interlock Storing Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If another key fob inter lock function setting is performed by same key, the newly registered setting is valid.
If a new memory string is performed to memory switch that already set key fob interlock function, key fob interlock function setting is reset.
If the key fob has not been previously programmed to the vehicle, key fob interlock function cannot set.
