Switches And Their Control Function

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

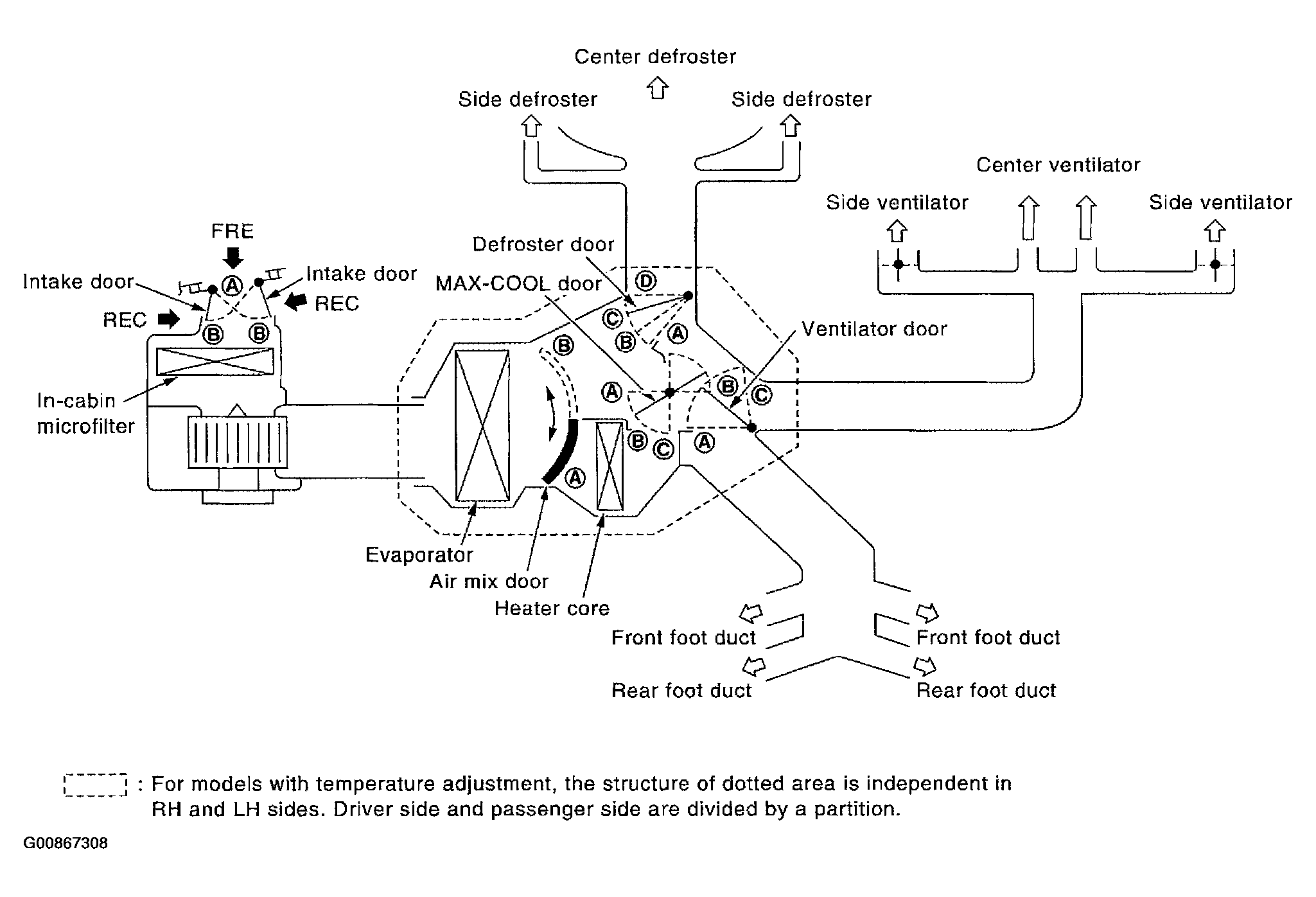

Fig 1: Switches And Their Control Function System Diagram
G00867308Courtesy of NISSAN MOTOR CO., U.S.A.

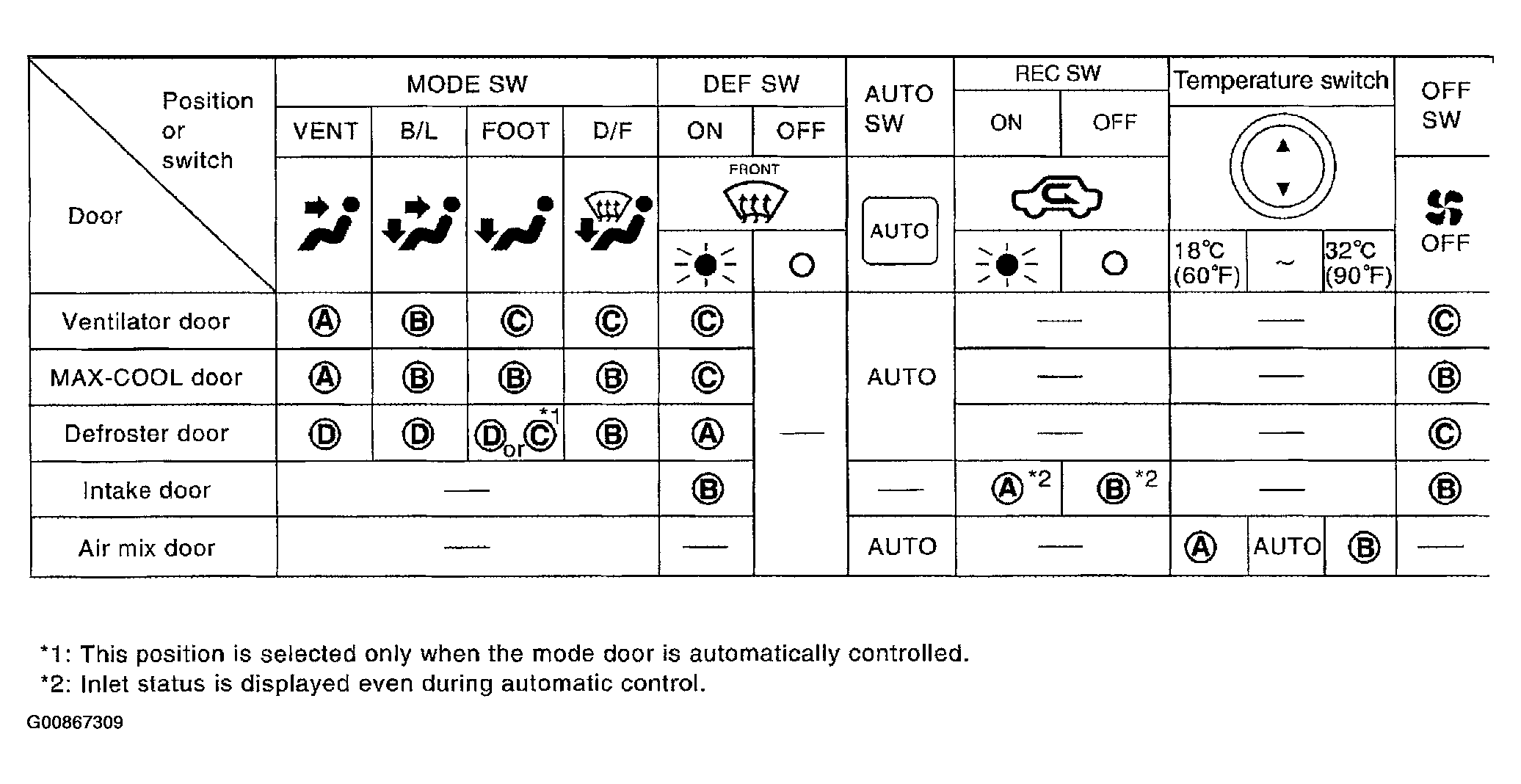

Fig 2: Switches And Their Control Function Description Chart
G00867309Courtesy of NISSAN MOTOR CO., U.S.A.
