Refrigerant Lines: Components

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

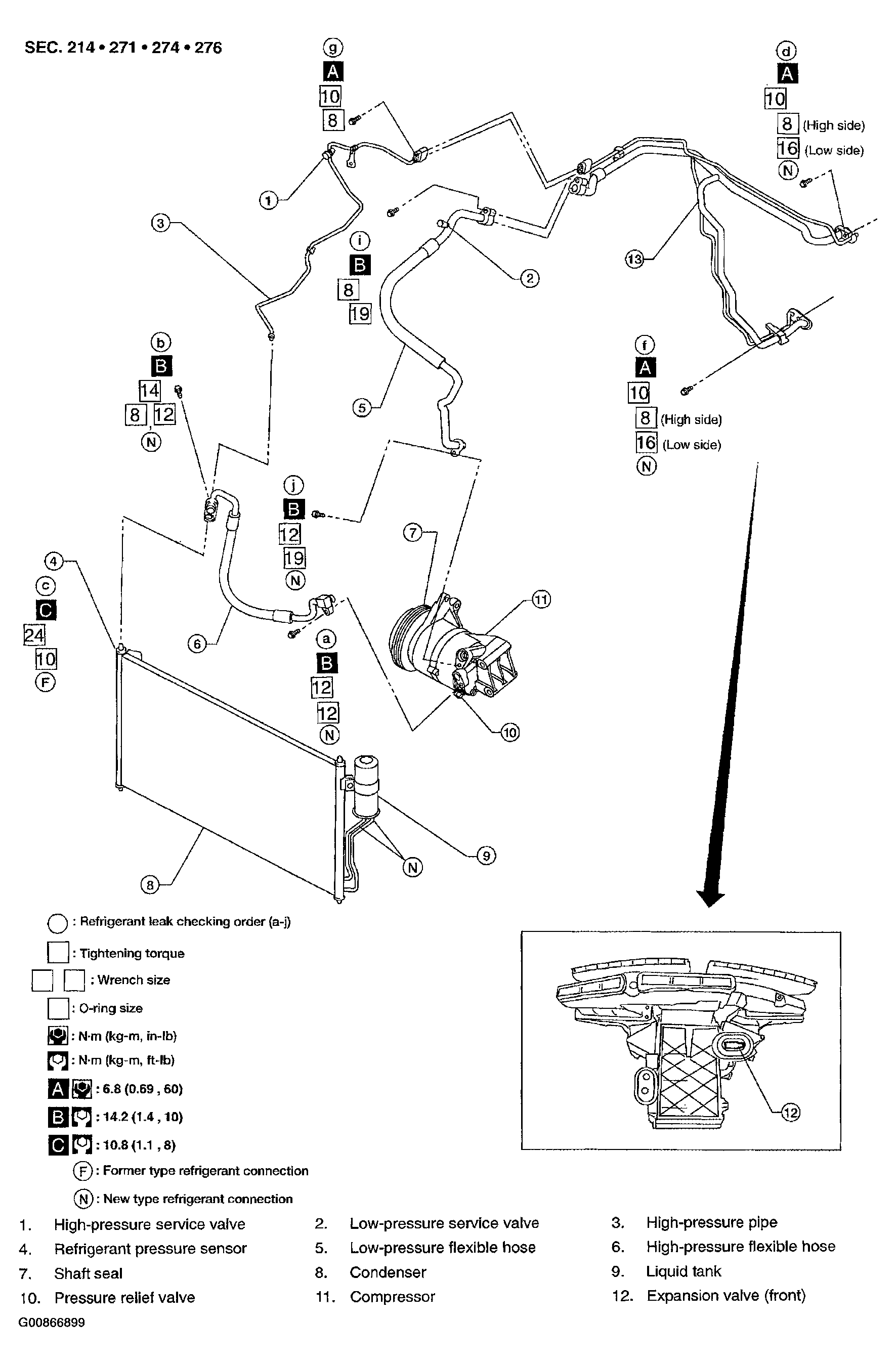

Fig 1: Identifying Front A/C Compressor And Condenser

Courtesy of NISSAN MOTOR CO., U.S.A.

High-pressure service valve
Low-pressure service valve
High-pressure pipe
Refrigerant pressure sensor
Low-pressure flexible hose
High-pressure flexible hose
Shaft seal
Condenser
Liquid tank
Pressure relief valve
Compressor
Expansion valve (front)
High/low pressure pipe

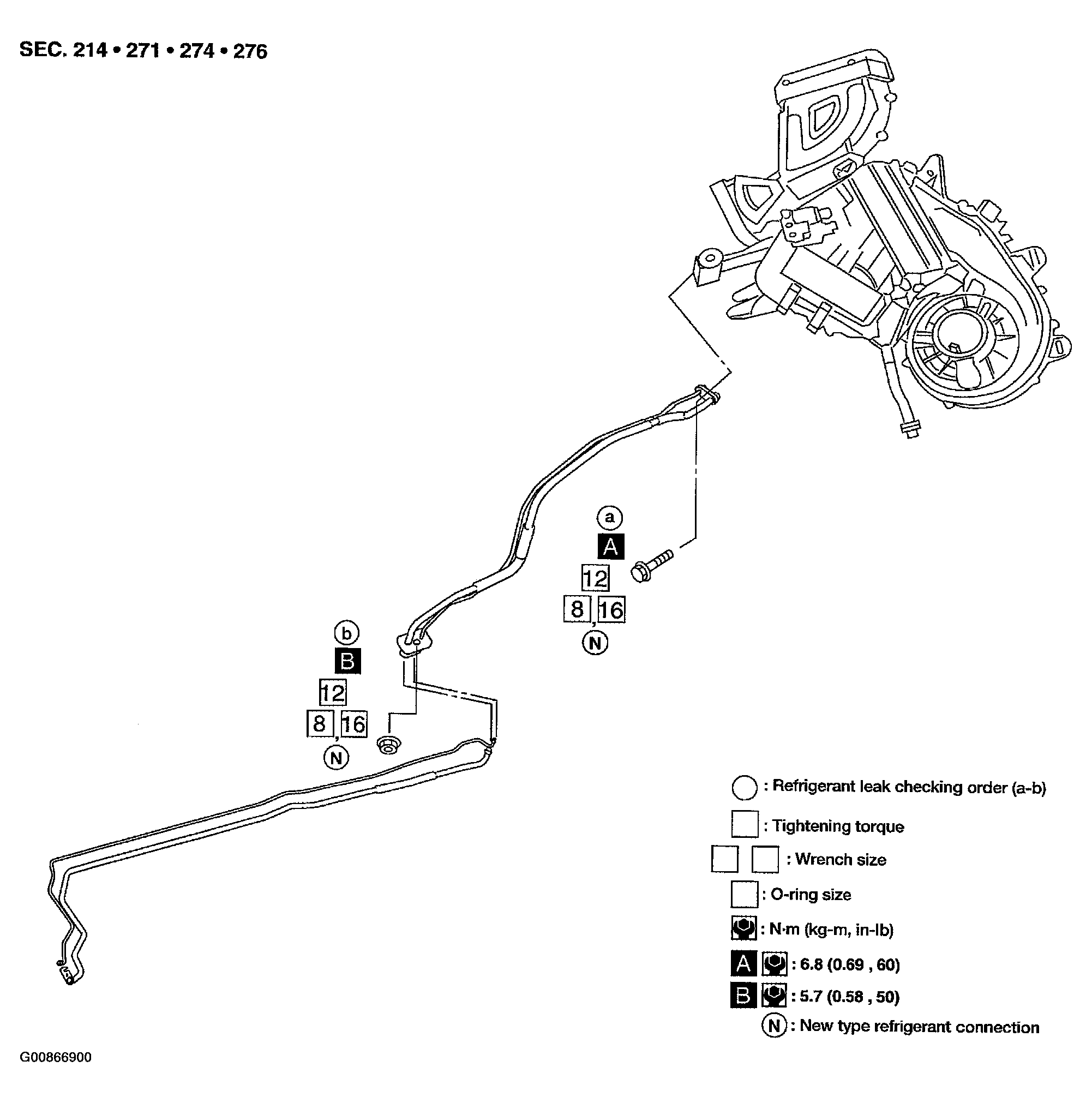

Fig 2: Identifying Rear A/C

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "PRECAUTIONS FOR REFRIGERANT CONNECTION ".
