Removal and Installation of Optical Sensor: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defrost grille. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect the connector.
  3. Turn the optical sensor counterclockwise to remove it from defroster grille.

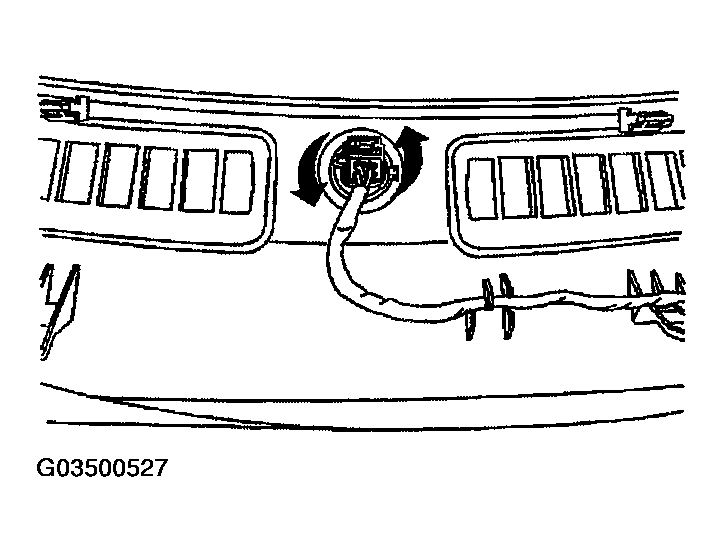

    Fig 1: Removing Defrost Grille
    G03500527Courtesy of NISSAN MOTOR CO., U.S.A.
