Ignition Coil

WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.

IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application

Primary

Secondary

2.2L

⁽¹⁾

3.2L

⁽²⁾

3.5L

⁽²⁾

⁽¹⁾	Information is not available from manufacturer.

⁽²⁾	Use DVOM to measure resistance between terminals No. 1-2, 1-3 and 2-3. See Fig 1 . If resistance reading between any two terminals is 0 ohms (shorted) or infinity (open), replace ignition coil assembly.

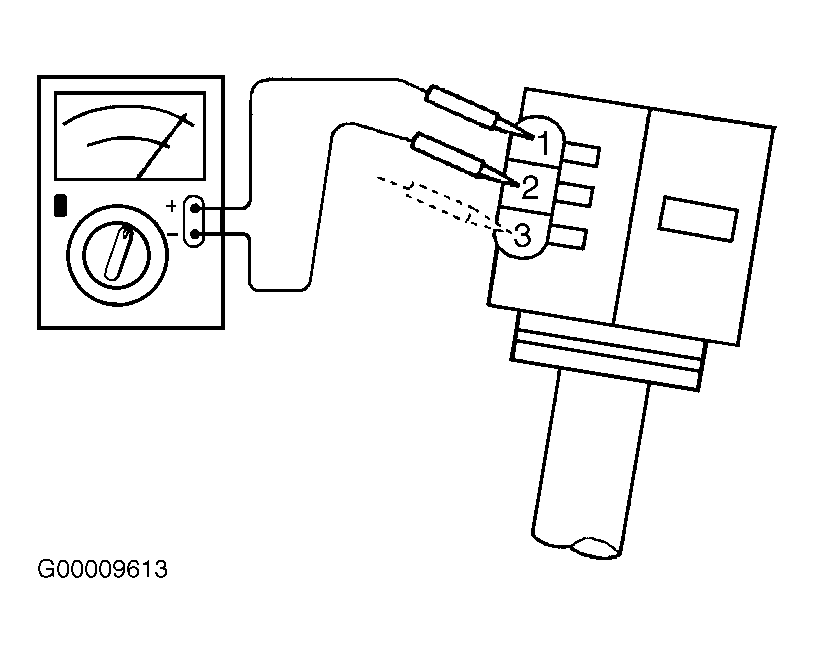

Fig 1: Identifying Ignition Coil Terminals (3.2L & 3.5L)

Courtesy of ISUZU MOTOR CO.
