Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to B "CONFIGURATION  ".
  1. Disconnect negative battery cable.
  2. Remove instrument panel storage bin. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect switch assembly.
  5. Remove screw and release BCM.
  6. Disconnect connectors and then remove BCM.

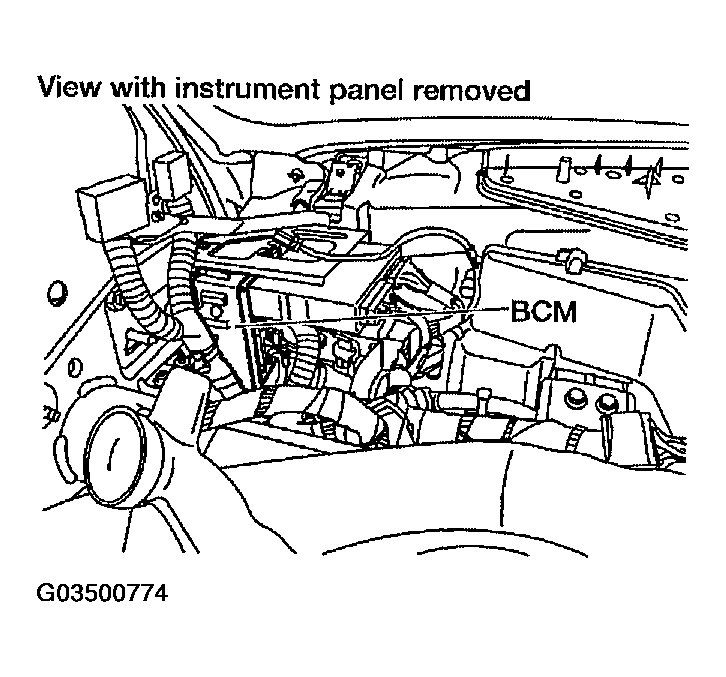

Fig 1: Removing BCM
G03500774Courtesy of NISSAN MOTOR CO., U.S.A.
