Removal and Installation for AV Switch

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove the five AV switch screws.
  3. Carefully remove the AV switch.
  4. Installation is in the reverse order of removal.

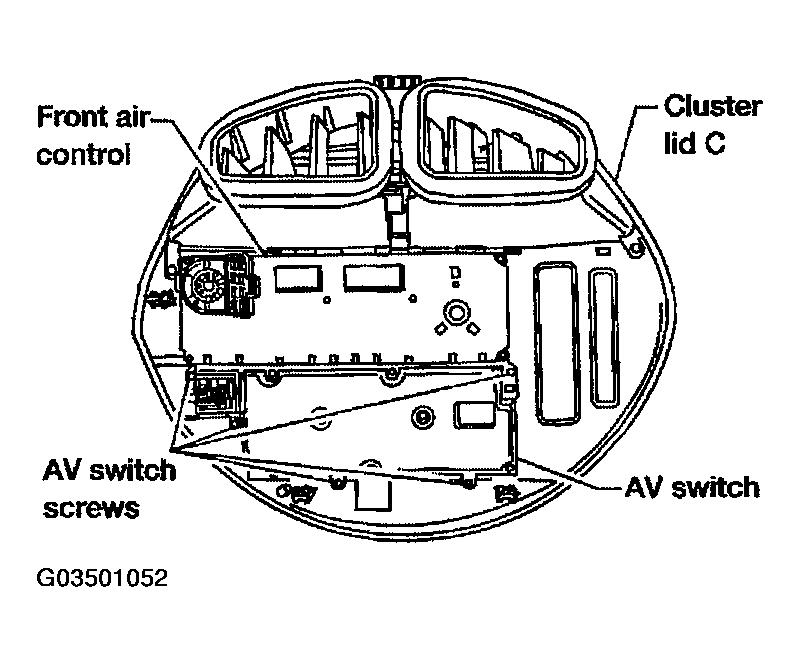

    Fig 1: Removing AV Switch Screws
    G03501052Courtesy of NISSAN MOTOR CO., U.S.A.
