Removal and Installation of Front Tweeter

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defrost grille. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove push pins.
  3. Disconnect connector and remove tweeter.
  4. Installation is in the reverse order of removal.

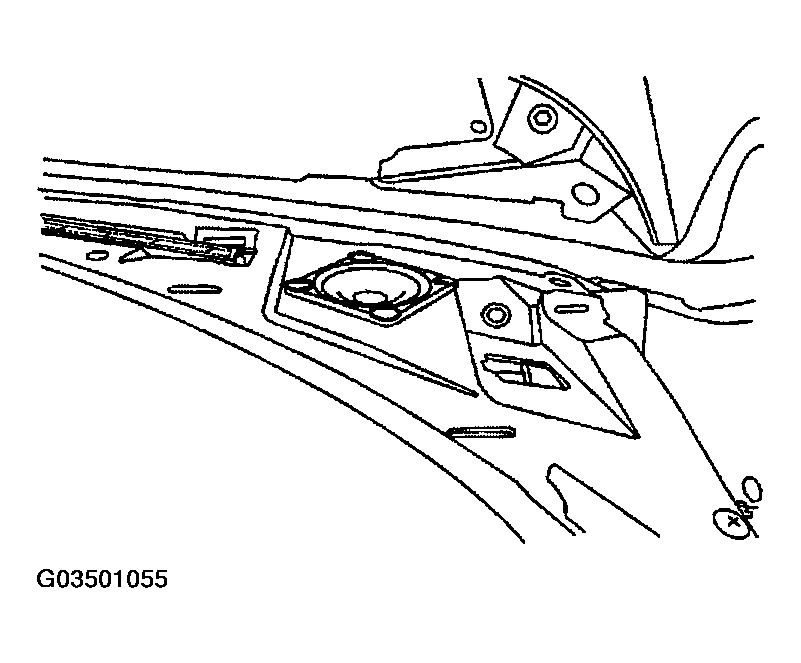

    Fig 1: Removing Tweeter
    G03501055Courtesy of NISSAN MOTOR CO., U.S.A.
