Terminals and Reference Value for Audio Unit for BOSE System
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

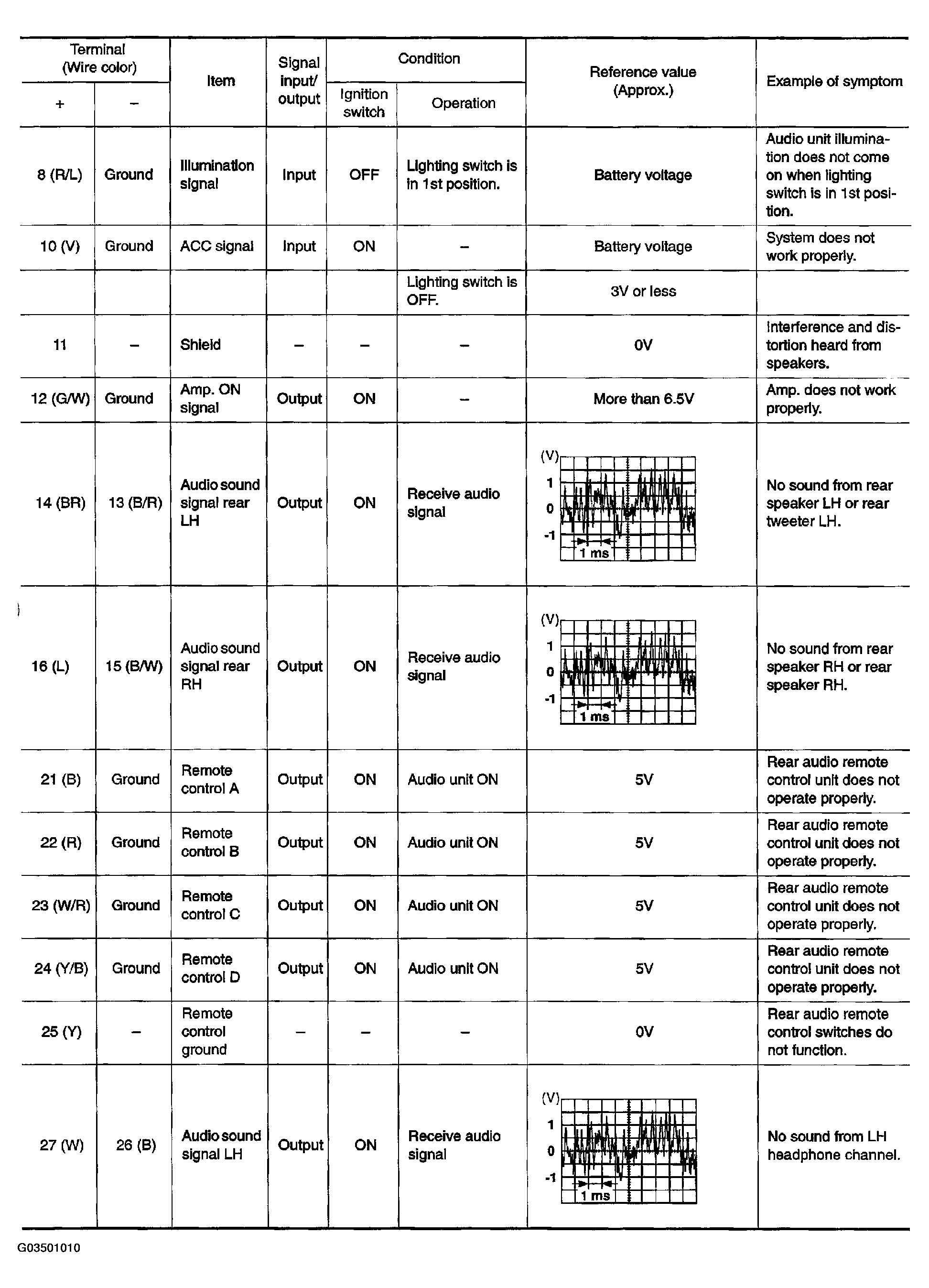

Fig 1: Terminals & Reference Value For Audio Unit For Bose System Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Terminals & Reference Value For Audio Unit For Bose System Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

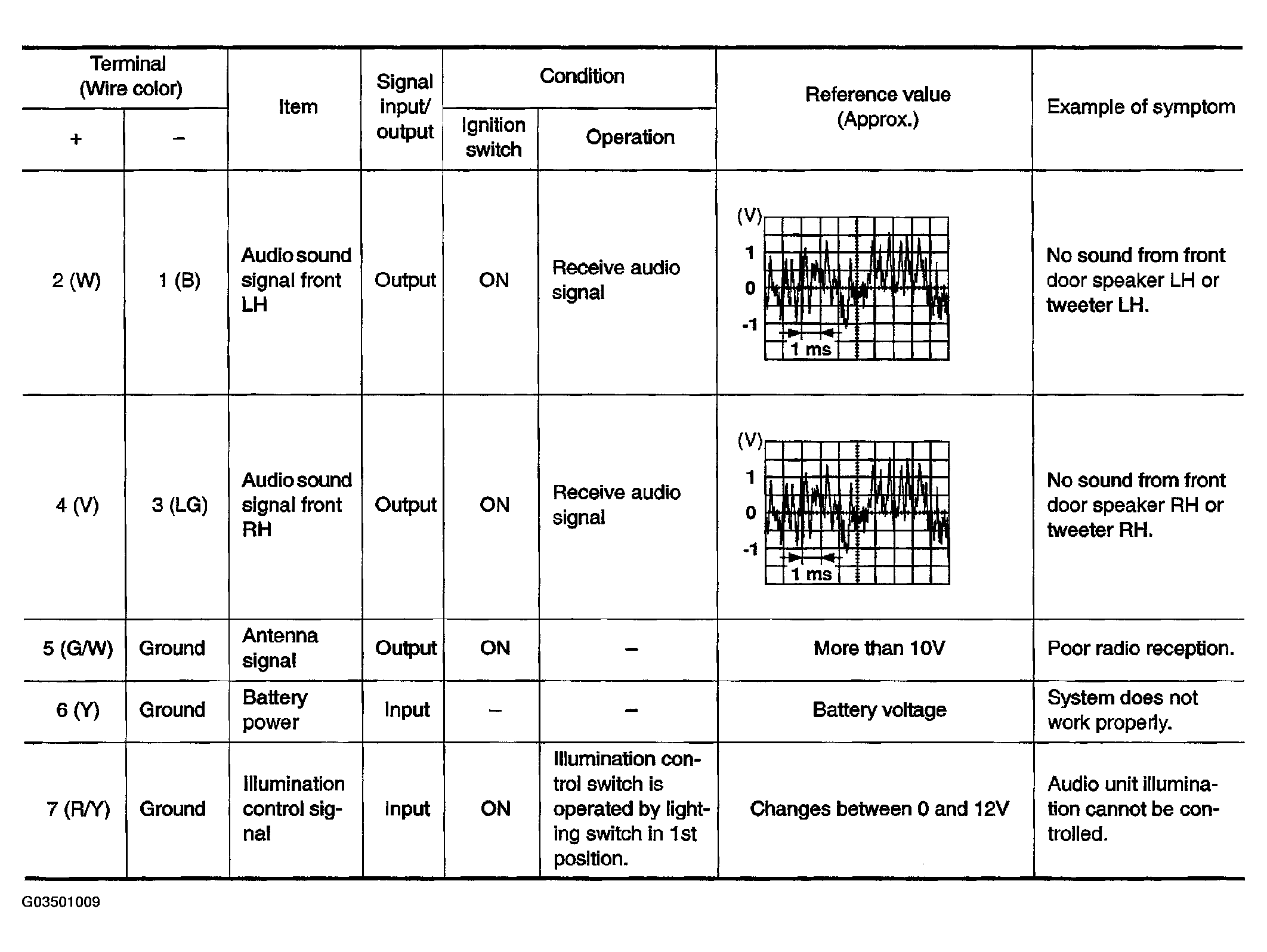

Fig 3: Terminals & Reference Value For Audio Unit For Bose System Chart (3 Of 3)
