Parts Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Selecting PARTS CHECK on self-diagnosis screen displays selection screen.
Selecting DISPLAY indicates DISPLAY DETAIL screen. Display diagnosis and setting can be performed.
Selecting HVAC indicates HVAC DETAIL screen. Air conditioner system self-diagnosis can be performed.

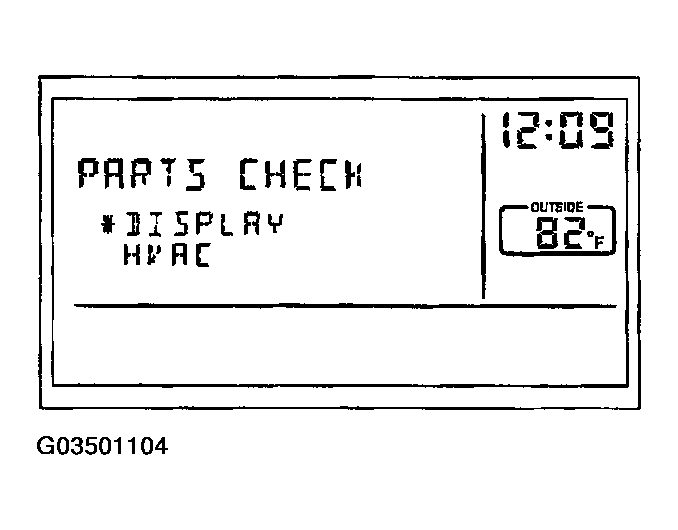

Fig 1: LCD Monitor Display - Parts Check
Courtesy of NISSAN MOTOR CO., U.S.A.
