Power Supply and Ground Circuit Check for Display Unit

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK 1: POWER SUPPLY CIRCUIT
    1. Disconnect display unit connector.
    2. Turn ignition switch ON.
    3. Check voltage between display unit harness connector M93 terminals 2 (L/W), 3 (L/R) and ground.
    1. Approx. 9 V

    OK or NG

    1. OK: GO TO 2.
    2. NG: GO TO  3.

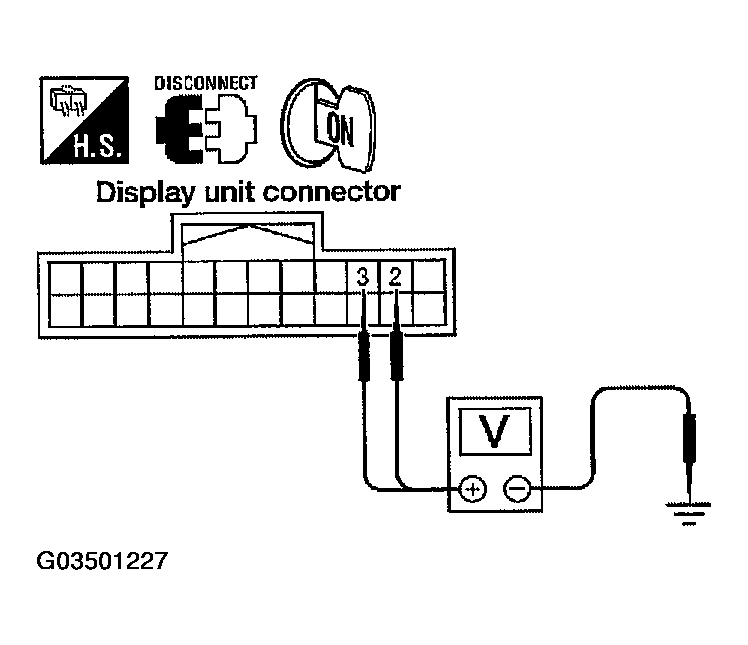

      Fig 1: Disconnecting Display Unit Connector
      G03501227Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK GROUND CIRCUIT

    Check continuity between display unit and ground as follows.

    CONTINUITY SPECIFICATION

    Terminals Ignition switch Continuity
    (+) (-)
    Connector Terminal (Wire color)
    M93 1 (B) Ground OFF Yes

    OK or NG

    1. OK: INSPECTION END.
    2. NG: Repair harness.

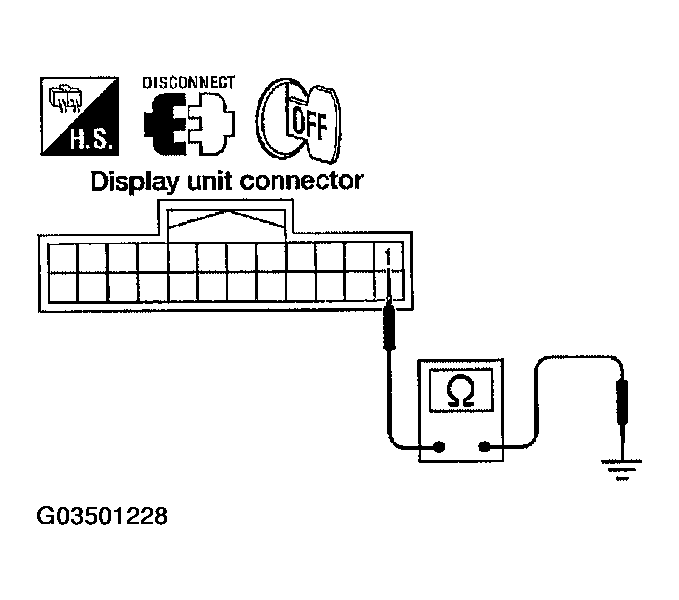

      Fig 2: Checking Continuity Between Display Unit And Ground
      G03501228Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK POWER SUPPLY CIRCUIT

    Check voltage between display control unit harness connector M94 terminals 2 (L/W), 4 (L/R) and ground.

    1. Approx. 9 V

    OK or NG

    1. OK: Repair harness.
    2. NG: GO TO 4.

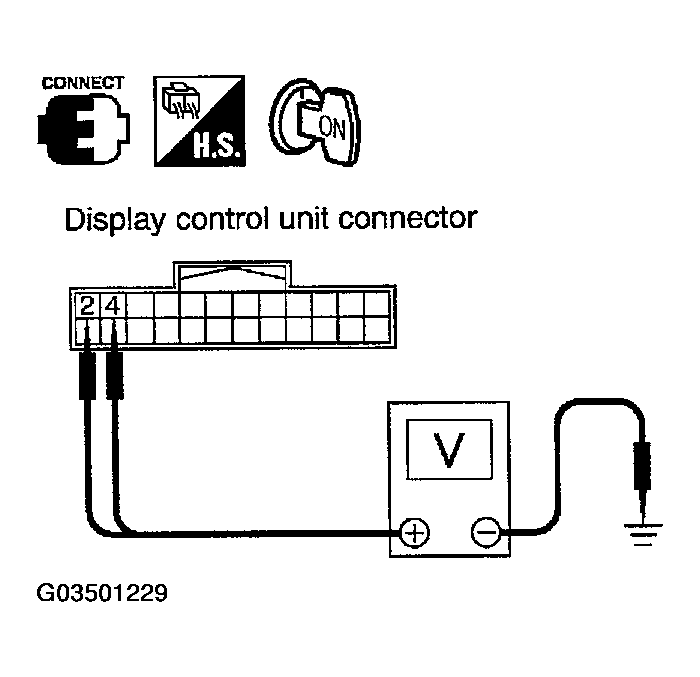

      Fig 3: Checking Voltage Between Display Control Unit Harness Connector M94 Terminals 2
      G03501229Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK HARNESS
    1. Turn ignition switch OFF.
    2. Disconnect display unit connector and display control unit connector.
    3. Check continuity between display control unit harness connector M94 terminals 2 (L/W), 4 (L/R) and display unit harness connector M93 terminals 2 (L/W), 3 (L/R).
      CONTINUITY SPECIFICATION

      Terminals Continuity
      Display control unit (+) Display unit (-)
      Connector Terminal (Wire color) Connector Terminal (Wire color)
      M94 2 (L/W) M93 2 (L/W) Yes
      4 (L/R) 3 (L/R)
    4. Check continuity between display unit and ground.

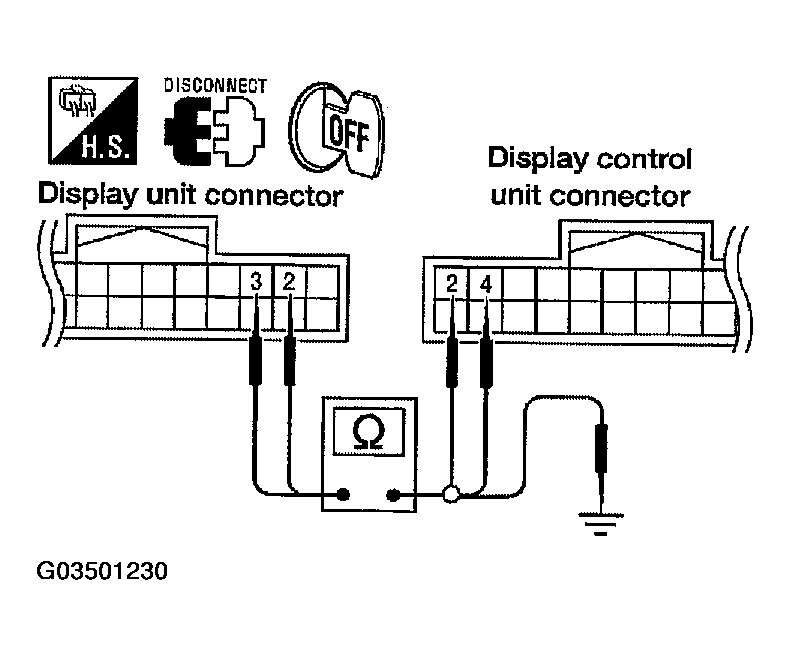

      Fig 4: Checking Continuity Between Display Unit And Ground
      G03501230Courtesy of NISSAN MOTOR CO., U.S.A.
    CONTINUITY SPECIFICATION

    Terminals Continuity
    Display unit (+) (-)
    Connector Terminal (Wire color)
    M93 2 (L/W) Ground No
    3 (L/R)

    OK or NG

    1. OK: Replace display control unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT .
    2. NG: Repair harness.
