RGB Screen Is Rolling (Except NAVI Screen)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS

Turn ignition switch OFF.
Disconnect display control unit connector and display unit connector.

Check continuity between display control unit and display unit.

CONTINUITY SPECIFICATION

Terminals				Continuity
Display control unit (+)		Display unit (-)
Connector	Terminal (Wire color)	Connector	Terminal (Wire color)
M95	56 (G)	M93	19 (G)	Yes

Check continuity between display control unit and ground.

CONTINUITY SPECIFICATION

Terminals			Continuity
Display control unit (+)		(-)
Connector	Terminal (Wire color)
M95	56 (G)	Ground	No

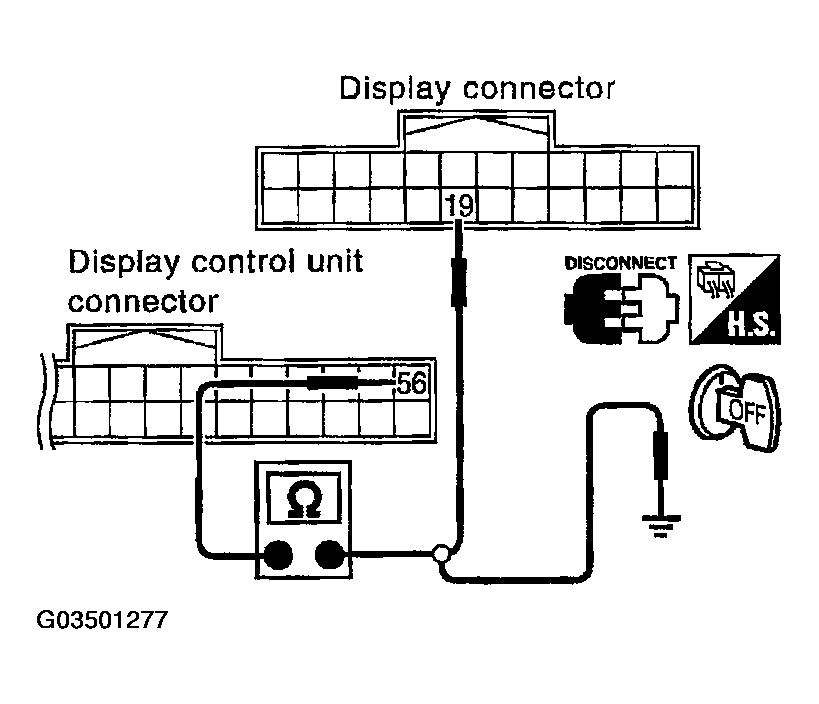

Fig 1: Checking Continuity Between Display Control Unit And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.
NG: Repair harness.

CHECK RGB SYNCHRONIZING SIGNAL
1. Connect display control unit connector and display unit connector.
2. Turn ignition switch ON.
3. Check signal between display unit connector M93 terminals 19 (G) and 21 with CONSULT-II or oscilloscope.
1. 19(G)-21: Refer to TERMINALS AND REFERENCE VALUE FOR DISPLAY CONTROL UNIT .
OK or NG
1. OK: Replace display unit. Refer to Removal and Installation of Display Unit .
2. NG: Replace display control unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT .

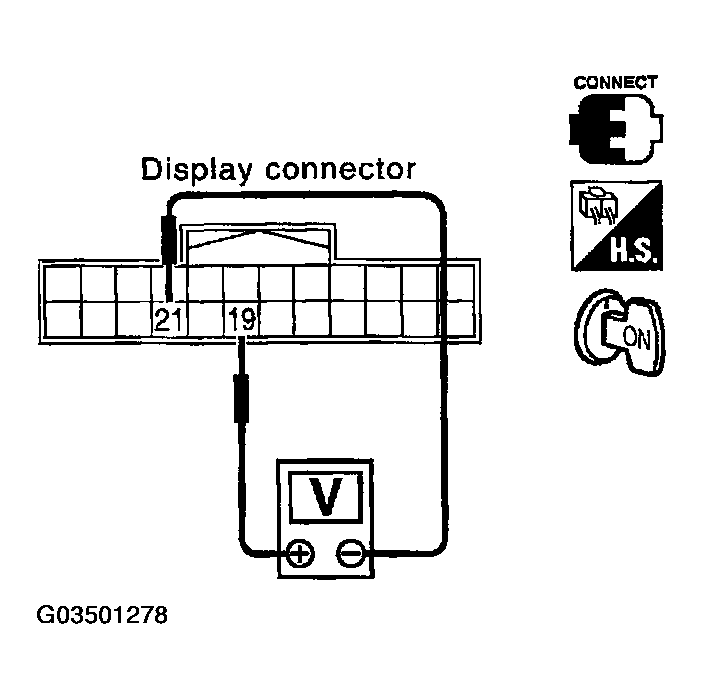

  Fig 2: Checking Signal Between Display Unit Connector M93 Terminals 19 (G) And 21
  Courtesy of NISSAN MOTOR CO., U.S.A.
