Removal and Installation of GPS Antenna

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter cover. Refer to COMBINATION METER .
  2. Remove screws.
  3. Remove center console lower cover. Refer to INSTRUMENT PANEL ASSEMBLY .

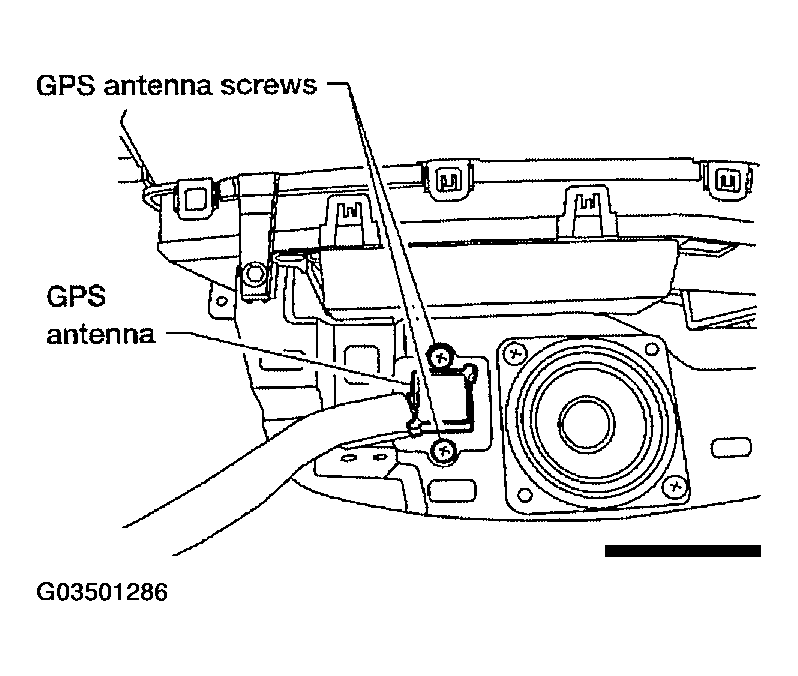

    Fig 1: Identifying GPS Antenna
    G03501286Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect GPS antenna connector and remove GPS antenna and feeder assembly out the top.
  5. Installation is in the reverse order of removal.

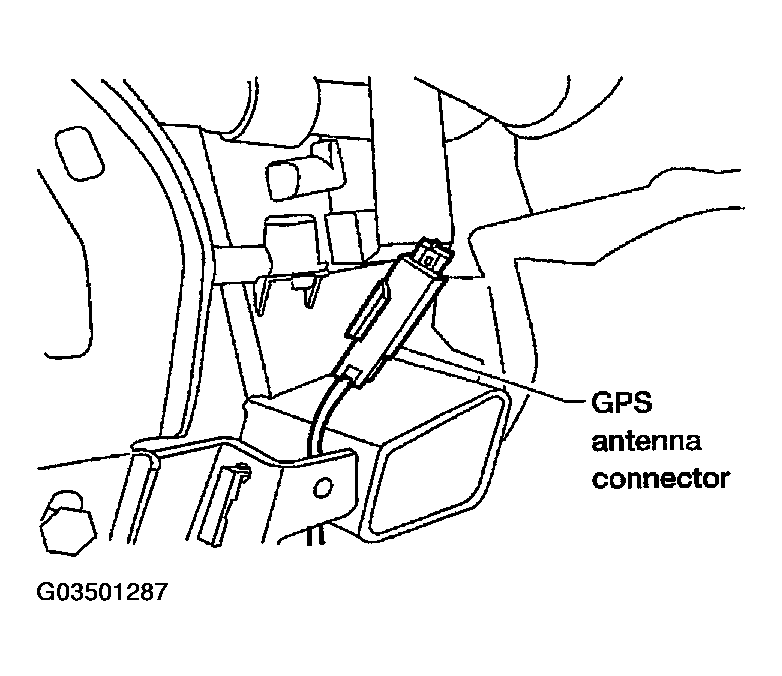

    Fig 2: Disconnect GPS Antenna Connector
    G03501287Courtesy of NISSAN MOTOR CO., U.S.A.
