Intake Air Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between mass air flow sensor terminals 5 and 6 under the following conditions.

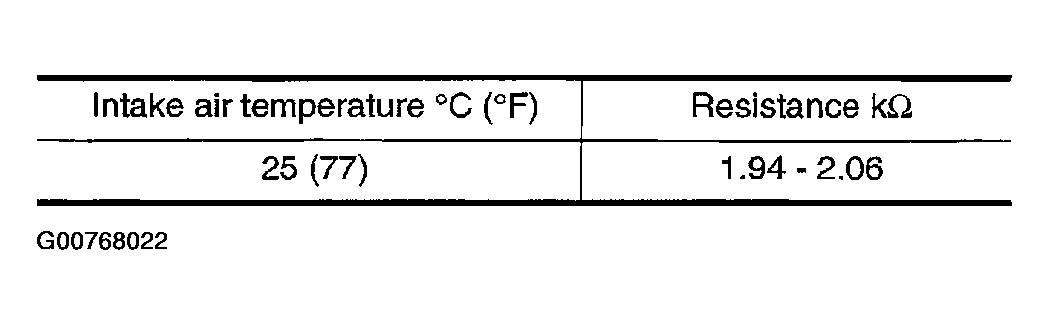

Fig 1: Intake Air Temperature Sensor Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).

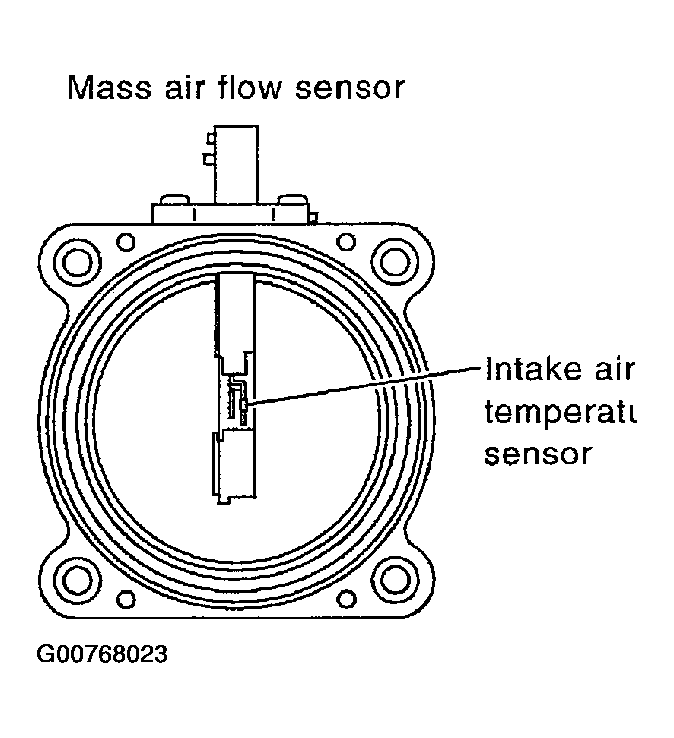

Fig 2: Identifying Intake Air Temperature Sensor Position In Mass Air Flow Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

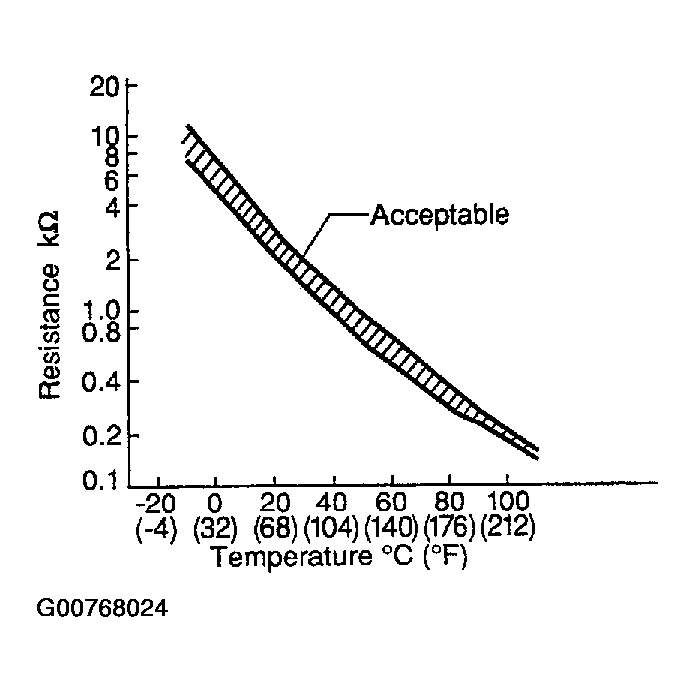

Fig 3: Temperature - Resistance Graph (IAT)
Courtesy of NISSAN MOTOR CO., U.S.A.
